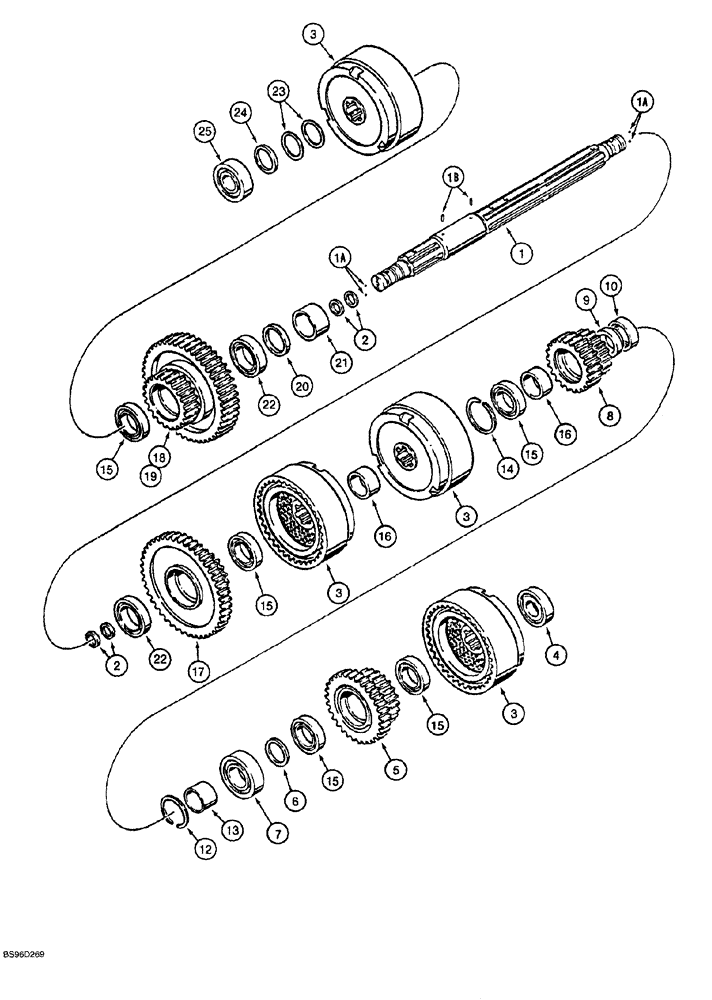

Запчасти Case 1150G (6-018) - TRANSMISSION ASSEMBLY, LEFT-HAND AND RIGHT-HAND CLUTCH SHAFTS (03) - TRANSMISSION

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 25

1шт.

1

179977A1

SHAFT ASSY.

clutch, Includes: Ref. 1A, 1B

2шт.

1a

211-1308

BALL,1/4" Dia

chrome alloy steel, grade 200

4шт.

1b

38-3605

PIN,3/32" x 5/16", Coiled

2шт.

2

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING seal

10шт.

Part of seal kit 238104A1

1шт.

3

G102377

CLUTCH

ASSY., transmission, see Figure 6-020

8шт.

4

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

clutch, front

2шт.

5

A51752

GEAR

drive, high clutch

2шт.

6

A50665

RING

SPACER, ball bearing, high clutch gear

2шт.

7

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

ball, high clutch gear

2шт.

G101318

GEAR

ASSY., drive, low clutch, Includes: Ref. 8 - 12

2шт.

8

NSS

NOT SOLD SEPARAT

GEAR low clutch

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER wide, inner

1шт.

10

A51468

NEEDLE BEARING,Needle, 57.15mm ID x 66.67mm OD x 25.4mm W

needle, gear assembly

1шт.

12

A27414

RING

snap, needle bearing

1шт.

13

A51757

BUSHING,49.98mm ID x 57.13mm OD x 35.76mm L

RACE, needle, low drive gear

2шт.

14

A27579

RING

snap, low clutch gear

2шт.

15

G10418

BEARING, BALL

gear

10шт.

16

A51842

SPACER

SPACER clutch shaft

4шт.

17

197406A1

GEAR

driven, 29 and 51 teeth, left-hand and right-hand clutch, front

2шт.

18

197406A1

GEAR

driven, 29 and 51 teeth, right-hand clutch, rear

1шт.

19

197407A1

PINION

GEAR reverse, 29 and 51 teeth, left-hand clutch, rear

1шт.

20

A50664

SPACER

SPACER, 6 mm (1/4 inch) wide, left-hand clutch

1шт.

21

A50663

SPACER

SPACER, 27 mm (1-1/16 inch) wide, right-hand clutch

1шт.

22

175427A1

BEARING, BALL,55mm ID x 90mm OD x 18mm W

gears

4шт.

23

A50668

SHIM,.032" Thk

Clutch shaft, Rear spacer

6шт.

Part of seal kit 238104A1

1шт.

24

A50667

SPACER

SPACER rear

2шт.

25

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

rear

2шт.

238104A1

SEAL KIT

KIT transmission, Includes Ref. 2, 23, plus additional seals on Figures 6-010 - 6-018, 6-024, 6-031A and 7-002

1шт.
