Запчасти Case 1150G (6-016) - TRANSMISSION ASSEMBLY, SUN GEAR AND LOW RANGE CLUTCH (03) - TRANSMISSION

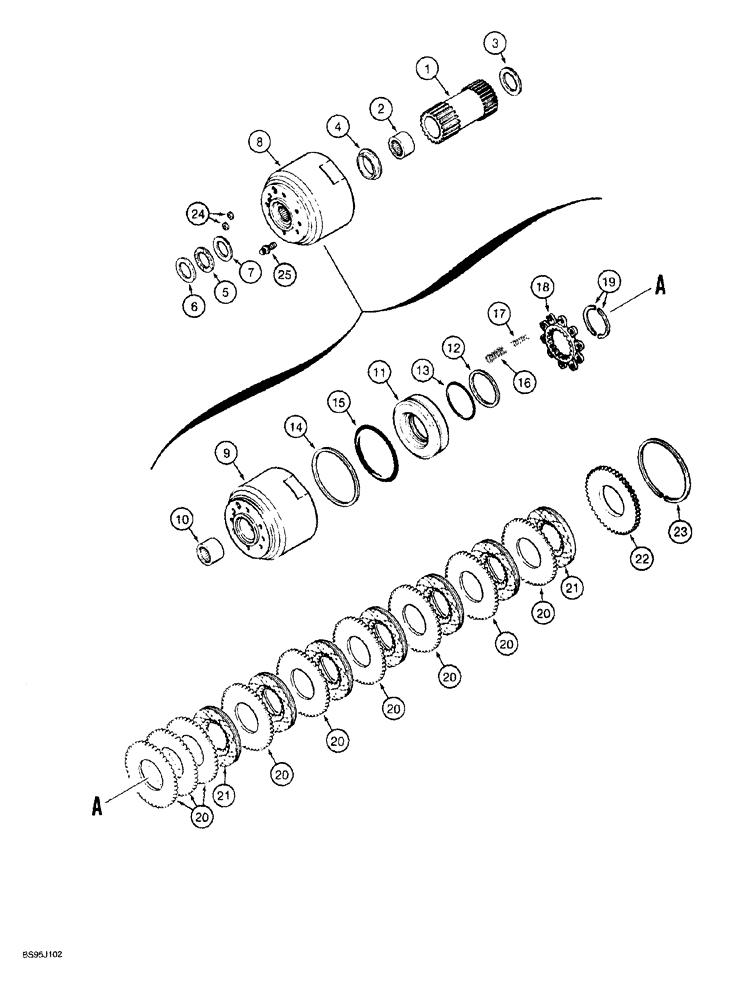

Схема запчастей Case 1150G - (6-016) - TRANSMISSION ASSEMBLY, SUN GEAR AND LOW RANGE CLUTCH (03) - TRANSMISSION
16
25
24
12
3
21
20
4
20
20
1
8
17
11
5
9
15
18
20
6
20
21
7
20
20
13
10
22
19
2
23
14

Артикул

Название

Примечание

Количество

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 25

1шт.

1

A51817

GEAR

sun, Includes: Ref. 2

1шт.

2

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

needle, 2-1/8 inch (54 mm) OD, sun gear

1шт.

3

H147785

BEARING WASHER

thrust, 0.787 mm (0.031 inch) thick, front

1шт.

4

A50650

RING

SLEEVE clutch assembly

1шт.

5

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

thrust, clutch assembly

1шт.

6

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

RACE, bearing, 0.032 inch (0.793 mm) thick

1шт.

7

T41021

RING RACE

WASHER thrust, 0.188 inch (4.76 mm) thick

1шт.

8

G105820

CLUTCH

ASSY., low range, Includes: Ref. 9 - 23

1шт.

9

G105821

FITTING

HOUSING clutch

1шт.

10

G105785

NEEDLE BEARING

needle, clutch housing

1шт.

A50621

PISTON

ASSY., high range clutch, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON clutch

1шт.

12

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

seal, inner

1шт.

Part of seal kit 238105A1

1шт.

13

238-5042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

Inner

1шт.

Part of seal kit 238105A1

1шт.

14

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEALRING outer

1шт.

Part of seal kit 238105A1

1шт.

15

238-5047

O-RING,0.07" Thk x 4.49" ID, -47, Cl 5, 75 Duro

Outer

1шт.

Part of seal kit 238105A1

1шт.

16

A50627

SPRING

piston return, outer

10шт.

17

A50628

SPRING

piston return, inner

10шт.

18

A50629

RETAINER

piston return springs

1шт.

19

A50630

RING

split, retaining, two-piece

1шт.

20

A67156

PLATE

steel, 70 external teeth

9шт.

21

G102264

CLUTCH DISC,66.93mm ID x 133.35mm OD x 4.04mm Thk

CLUTCH DISK friction, 22 internal teeth

7шт.

22

A50643

PLATE

backing

1шт.

23

A50639

RING

snap, clutch plates

1шт.

24

A50651

SEALING RING

SEALRING SEAL rubber

2шт.

Part of seal kit 238104A1

1шт.

25

180-605

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

BOLT, 12 point flange, chemical coating, 5/16 NC x 7/8 inch, grade 8

2шт.

238105A1

SEAL KIT

KIT transmission, clutches, Includes: Ref. 12 - 15, plus additional seals on Figures 6-014 and 6-020

1шт.

238104A1

SEAL KIT

KIT transmission, Includes: Ref. 24 , plus additional seals on Figures 6-010 - 6-018, 6-024, 6-031A and 7-002

1шт.
