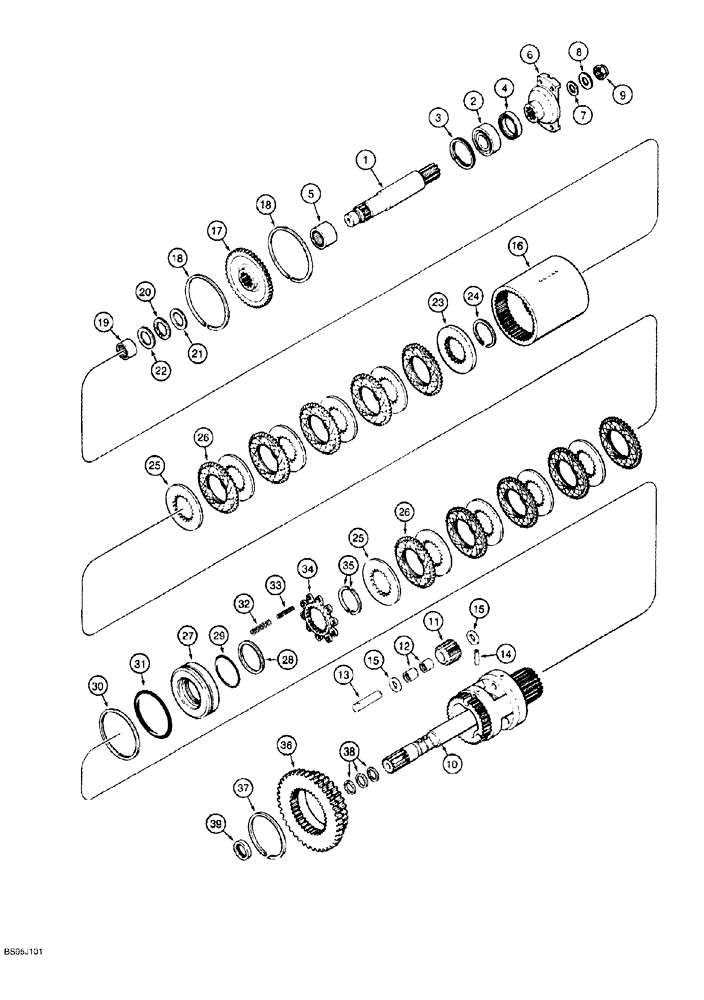

Запчасти Case 1150G (6-014) - TRANSMISSION ASSEMBLY (03) - TRANSMISSION

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 39

1шт.

1

A50605

SHAFT

input, transmission

1шт.

2

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

input shaft, Replaces: 40035

1шт.

3

A51419

SNAP RING,#354, 3.684, Int, Spiral

ball bearing, input shaft

1шт.

4

A50420

SEAL

oil, part of front cover assembly, see Figure 6-010, input shaft

1шт.

Part of seal kit 238104A1

1шт.

5

A50606

NEEDLE BEARING,Needle, 44.45mm ID x 53.98mm OD x 38.1mm W

needle, input shaft

1шт.

6

G103021

YOKE

UNIVERSAL JOINT YOKE input shaft to drive shaft

1шт.

7

A50608

WASHER

plastic, input shaft

1шт.

Part of seal kit 238104A1

1шт.

8

144618A1

WASHER

flat, special, input shaft

1шт.

Part of seal kit 238104A1

1шт.

9

131-465

LOCK NUT,7/8"-14, G8

thin hex, self-locking, 7/8 inch NF, input shaft

1шт.

1348916C2

GEAR WHEEL

PLANETARY ASSY., with high range clutch, Includes: Ref. 10 - 38

1шт.

10

1348878C2

GEAR WHEEL

CARRIER planetary

1шт.

11

A50616

GEAR

planetary, 18 teeth

3шт.

12

A62548

NEEDLE BEARING,0.62" ID x 0.88" OD x 0.875"

needle, planetary gear

6шт.

13

A50618

SHAFT

planetary gear

3шт.

14

38-1814

LOCK PIN,1/8" x 7/8", Slotted

1/8" x 7/8", Slotted

3шт.

15

A50617

WASHER

thrust, planetary gear

6шт.

16

G102600

RING

GEAR, planetary

1шт.

17

A50637

GEAR

70 teeth

1шт.

18

A50639

RING

snap, gear

2шт.

19

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

needle, clutch

1шт.

20

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

thrust, gear

1шт.

21

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

RACE, bearing, 0.032 inch (0.793 mm) thick, inner

1шт.

22

A50673

BEARING WASHER,38.27mm ID x 55mm OD x 3.16mm Thk

RACE, bearing, 0.125 inch (3.17 mm) thick, outer

1шт.

23

A50634

PLATE

backing

1шт.

24

101-11287

SNAP RING,#287, 2.713, Ext

RING external retaining, No. 287, clutch

1шт.

25

A50631

PLATE

steel, 22 internal teeth

10шт.

26

G102263

DISC

friction, 70 external teeth

10шт.

A50621

PISTON

ASSY., high range clutch, Includes: Ref. 27 - 31

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON high range clutch

1шт.

28

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

seal, inner

1шт.

Part of seal kit 238105A1

1шт.

29

238-5042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

Small

1шт.

Part of seal kit 238105A1

1шт.

30

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEALRING outer

1шт.

Part of seal kit 238105A1

1шт.

31

238-5047

O-RING,0.07" Thk x 4.49" ID, -47, Cl 5, 75 Duro

Large

1шт.

Part of seal kit 238105A1

1шт.

32

A50627

SPRING

piston return, outer

10шт.

33

A50628

SPRING

piston return, inner

10шт.

34

A50629

RETAINER

piston return springs

1шт.

35

A50630

RING

split, retaining, spring retainer, includes both halves

1шт.

36

G106716

GEAR

forward and reverse drive

1шт.

37

A50620

RING

snap, gear

1шт.

38

1348976C1

SEAL

RING, planetary output shaft

3шт.

Part of seal kit 238104A1

1шт.

39

A54107

OIL SEAL,38.1mm ID x 8mm Thk

oil, planetary output shaft, see Figure 6-010, Ref. 29

1шт.

Part of seal kit 238104A1

1шт.

238104A1

SEAL KIT

KIT transmission, Includes: Ref. 4, 7, 8, 38, 39, plus additional seals on Figures 6-010 - 6-018, 6-024, 6-031A and 7-002

1шт.

238105A1

SEAL KIT

KIT transmission, clutches, Includes: Ref. 28 - 31, plus additional seals on Figures 6-016 and 6-020

1шт.
