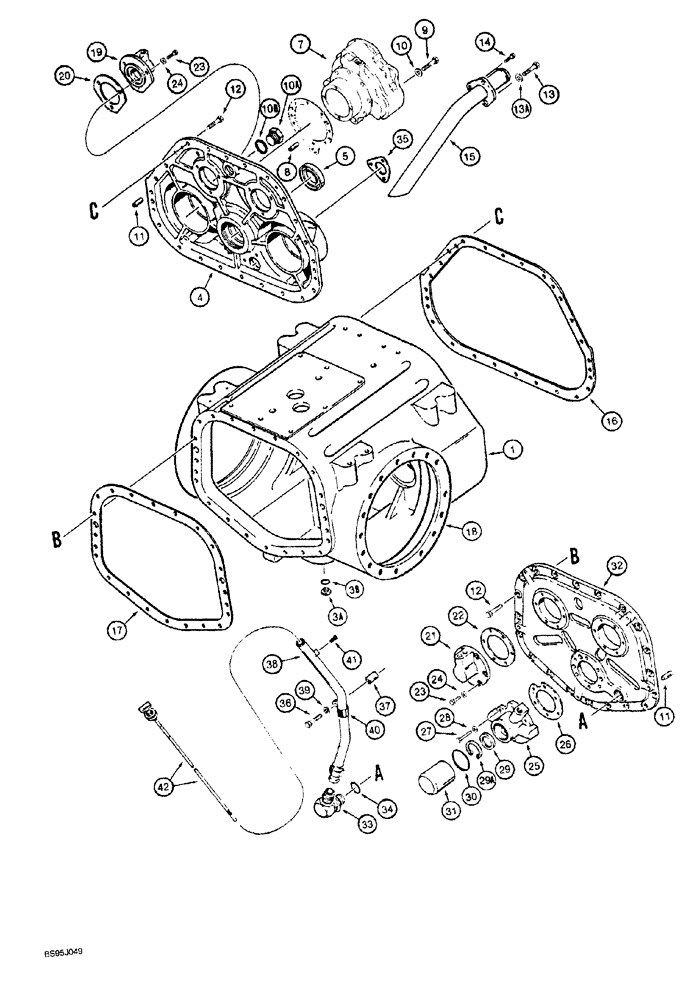

Запчасти Case 1150G (6-010) - TRANSMISSION ASSEMBLY, HOUSING, COVERS AND DIPSTICK (03) - TRANSMISSION

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 37

1шт.

1

G103460

HOUSING

transmission

1шт.

3a

9841223

PLUG,1-1/16" - 12 ORB

Transmission drain, Incl. Ref. 3B

1шт.

3b

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of seal kit 238104A1

1шт.

4

G109121

COVER

front

1шт.

5

A50420

SEAL

oil, input shaft

1шт.

Part of seal kit 238104A1

1шт.

7

1348984C2

HOUSING

brake, intermediate, left-hand and right-hand brake housings are shown on Figure 7-002

2шт.

8

S64319

CALIPER

PIN dowel, locating, 1/2 x 1 - 1/2 inch, brake housing

4шт.

9

180-608

12 PT SCREW,Flg, 7/16" - 14 x 2 1/4", Gr 8

BOLT, 12 point flange, chemical coating, 7/16 NC x 2-1/4 inch, grade 8

16шт.

10

A50689

WASHER

flat, special, 1/2 x 13/16 x 1/16 inch, hardened

16шт.

10a

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Front cover, Incl. Ref. 10B

1шт.

10b

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of seal kit 238104A1

1шт.

11

S64319

CALIPER

PIN dowel, locating, 1/2 x 1 - 1/2 inch, front and rear covers

4шт.

12

107-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G8, Full Thd

hex, chemical locking, 1/2 NC x 1 - 1/4 inch, grade 8

41шт.

13

107-9840

LOCK BOLT,Locking, 1/2"-13 x 2 1/2", G8

Suction tube, lower hole

1шт.

13a

D35288

WASHER

copper

1шт.

14

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

Suction tube, upper holes

2шт.

15

A51515

TUBE

oil suction

1шт.

16

1342378C1

GASKET

front cover

1шт.

Part of seal kit 238104A1

1шт.

17

1342432C1

GASKET

rear cover

1шт.

Part of seal kit 238104A1

1шт.

18

B17556

LOCTITE

SEALANT, Gasket Eliminator No. 515, 300 ml tube

1шт.

19

139970A1

CAP

COVER front, clutch shaft

2шт.

20

1981240C1

GASKET

clutch shaft cover

2шт.

Part of seal kit 238104A1

1шт.

21

139969A1

CAP

COVER rear, clutch shaft

2шт.

22

1342256C1

SHIM

0.0508 mm (.002 inch) thick

6шт.

Part of seal kit 238104A1

1шт.

22

1342255C1

SHIM

0.178 mm (.007 inch) thick

6шт.

Part of seal kit 238104A1

1шт.

23

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

18шт.

24

D32117

COPPER WASHER

If used

18шт.

24

B17578

LOCTITE

SEALANT, Lock N' Seal, 242 (blue), 10 ml bottle, if used

1шт.

Part of seal kit 238104A1

1шт.

25

139968A2

CAP

COVER rear, planetary output shaft, with ports

1шт.

26

G102757

SHIM,.005" Thk

(0.127 mm)

6шт.

Part of seal kit 238104A1

1шт.

26

G102758

SHIM,.007" Thk

(0.1778 mm)

6шт.

Part of seal kit 238104A1

1шт.

27

107-9628

LOCK BOLT,Locking, 3/8"-16 x 1 3/4", G8

6шт.

28

D32117

COPPER WASHER

If used

6шт.

28

B17578

LOCTITE

SEALANT, Lock N' Seal, 242 (blue), 10 ml bottle, if used

1шт.

29

A54107

OIL SEAL,38.1mm ID x 8mm Thk

oil, planetary output shaft

1шт.

Part of seal kit 238104A1

1шт.

29a

100-21206

SNAP RING,2.062", Int, #206

Oil seal

1шт.

30

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Used on models with a winch, not part of transmission assembly, order separately

1шт.

Part of seal kit 238104A1

1шт.

31

G101696

PROTECTIVE COVER

mainshaft, rear, planetary output shaft

1шт.

32

G106230

PLATE

COVER rear

1шт.

33

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ELBOW, 90°, 1 - 7/8-12 inch flare x adj. O-ring boss, fill tube, Includes: Ref. 34

1шт.

34

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

Part of seal kit 238104A1

1шт.

35

1981224C1

GASKET

oil suction tube

1шт.

Part of seal kit 238104A1

1шт.

36

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

1шт.

37

G107798

SPACER

filler tube

1шт.

38

R47647

TUBE,1.5" OD

oil filler, not included with 139993A1 transmission assembly, must be ordered separately

1шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

Not included with 139993A1 transmission assembly, must be ordered separately

1шт.

40

49773

CLAMP

P-type, Replaces: 515-253812, not included with 139993A1 transmission assembly, must be ordered separately

1шт.

41

D63543

BREATHER

dipstick tube, filler tube, not included with 139993A1 transmission assembly, must be ordered separately

1шт.

Part of seal kit 238104A1

1шт.

42

R46986

DIPSTICK

transmission oil, not included with 139993A1 transmission assembly, must be ordered separately

1шт.

238104A1

SEAL KIT

KIT, transmission, Includes: Ref. 3B, 5, 10B, 16, 17, 20, 22, 24 (B17578), 26, 29, 30, 34, 35, 41, plus additional seals on Figures 6-014 - 6-018, 6-024, 6-031A and 7-002

1шт.
