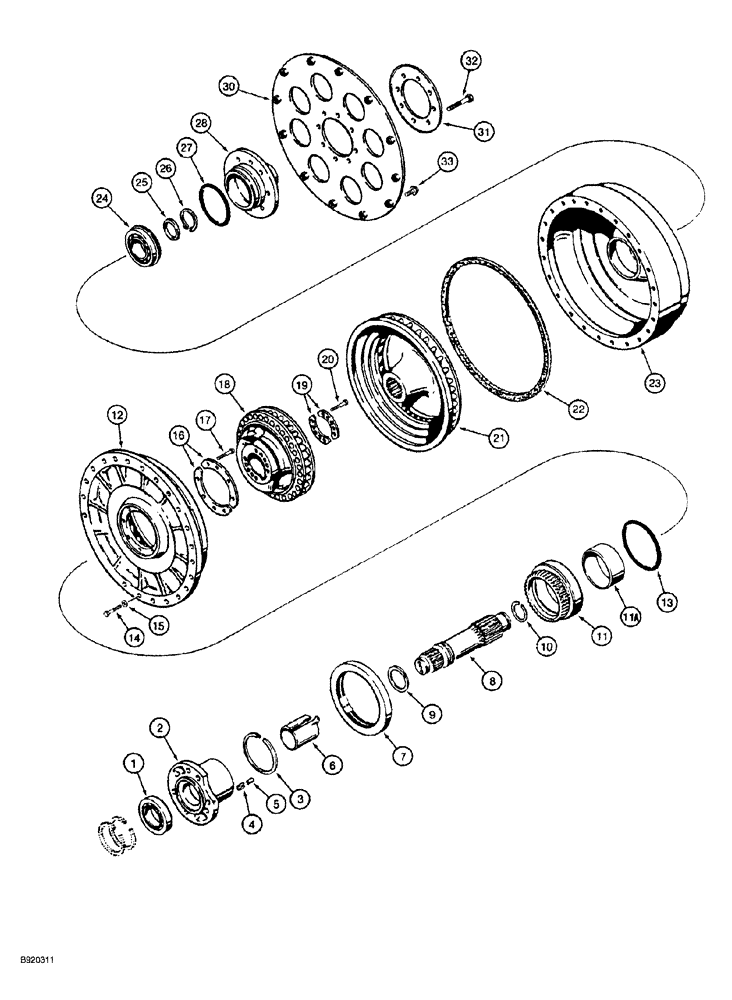

Запчасти Case 1150G (6-006) - TORQUE CONVERTER, SHAFT, IMPELLER AND TURBINE (03) - TRANSMISSION

R52029

CONVERTER

ASSY., torque, Twin Disc Spec. No. N66154, see Figures 6-002, 6-006, Includes: Ref. 1 - 32

1шт.

1

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

carrier

1шт.

2

D75861

GUIDE

CARRIER

1шт.

3

1341403C1

SEALING RING

RING carrier

1шт.

4

138-221

LOCK PIN,3/8" x 5/8", Slotted

4шт.

5

138-108

LOCK PIN,7/32" x 5/8", Slotted

4шт.

6

D32027

SLEEVE

Split, shaft

1шт.

7

D32109

SEAL,133.35mm ID x 165.35mm OD x 13.74mm Thk

oil, gear

1шт.

8

D32026

SHAFT

output, torque converter

1шт.

9

A20229

RING

retaining, shaft

1шт.

10

A22889

RING

snap, shaft

1шт.

D75862

GEAR

GEAR ASSY., drive, Includes: Ref. 11, 11A

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR pump drive

1шт.

11a

D75859

BUSHING,89.09mm ID x 93.75mm OD x 27.18mm L

steel backed

1шт.

12

D37376

TURBINE

IMPELLER torque converter

1шт.

13

238-7248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 7, 75 Duro

1шт.

14

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

24шт.

15

A22873

WASHER,8.33mm ID x 15.88mm OD x 1.88mm Thk

flat, special

24шт.

16

D32016

PLATE

clamp

2шт.

17

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

8шт.

18

D37377

GUIDE

WHEEL, torque converter

1шт.

19

D32010

PLATE

clamp

2шт.

20

27587R1

12 PT SCREW,Flg, 5/16"-18 x 1"

BOLT, 12 point flange, 5/16 NC x 1 inch, grade 8

6шт.

21

D31935

TURBINE

torque converter

1шт.

22

D31998

GASKET

rotating housing

1шт.

23

N9777

HOUSING

rotating

1шт.

24

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

flywheel pilot

1шт.

25

D32030

BALL BEARING,1.585" ID x 1.94" OD x 0.114"

SPACER ball bearing

1шт.

26

A26946

RING

snap, bearing retaining

1шт.

27

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3 - 5/8 x 1/8 inch wide

1шт.

28

N9775

HANDWHEEL

PILOT flywheel

1шт.

30

N9774

LARGE PLATE

PLATE, LARGE flex, torque converter

1шт.

31

N9778

WASHER

support

1шт.

32

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

BOLT hex, 3/8 NC x 7/8 inch, grade 8

8шт.

33

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

BOLT heavy hex flange, special, Scotchgrip-coated, flex plate to engine flywheel

12шт.

R38108

GASKET KIT

Seal, Includes: Ref. 3, 7, 9, 13, 22, 27 on this figure, Ref. 4, 11, 13, 16, 18, 21, 25, 27, 35, 37, 44, 46 on Figure 6-006, plus three additional seals and one shim not used in this application, also includes D32004 gasket on Fig. 8-006, Ref. 22

1шт.

R54507

KIT

overhaul, Includes: Ref. 1, 6, 10, 11A, 24, 26 on this figure and Ref. 5 - 7, 22 - 23B, 29, 32, 41, 42 on Figure 6-002, kit no longer available, order individual parts

1шт.
