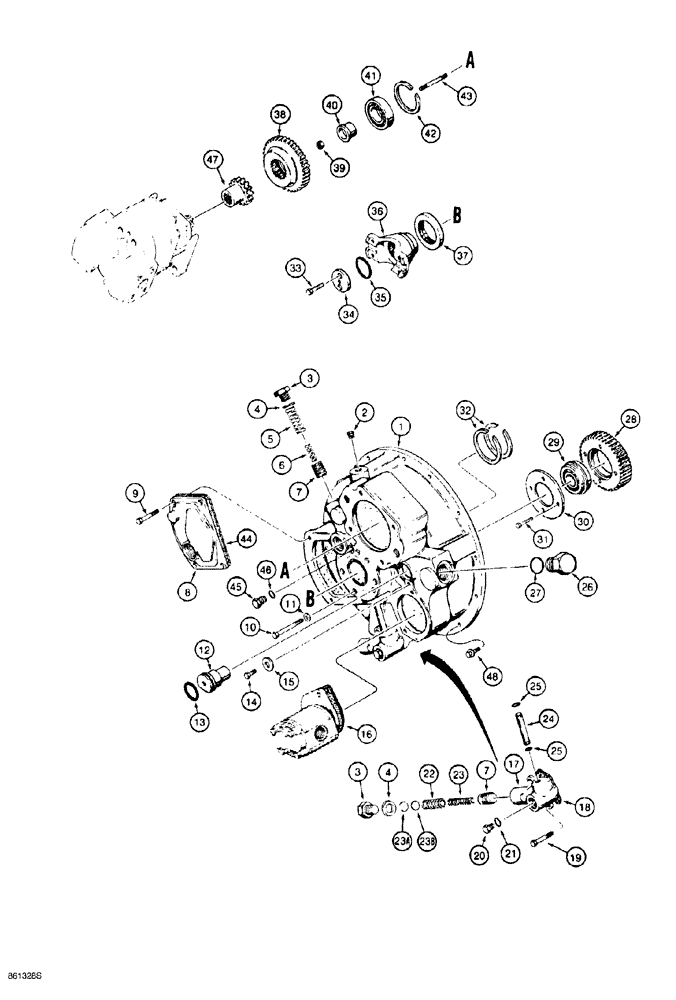

Запчасти Case 1150G (6-002) - TORQUE CONVERTER, HOUSING, COVERS, GEARS AND MOUNTING (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
R52029
CONVERTER
ASSY., torque, Twin Disc Spec. No. N66154, see Figures 6-002, 6-006, Includes: Ref. 1 - 46
1шт.
1
D77622
HOUSING
torque converter
1шт.
2
221-841
PLUG
hex socket, 1/4 inch PT
1шт.
3
D32013
PLUG
relief valve
2шт.
4
D32119
WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk
relief valve
2шт.
Part of seal kit R38108
1шт.
5
D32031
SPRING
outer
1шт.
Part of overhaul kit R54507
1шт.
6
D32021
SPRING
inner
1шт.
Part of overhaul kit R54507
1шт.
7
D32014
PISTON
relief valve
2шт.
Part of overhaul kit R54507
1шт.
8
R29098
PLATE
cover, housing
1шт.
9
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
10
413-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
6шт.
11
D32117
COPPER WASHER
6шт.
Part of seal kit R38108
1шт.
12
R29100
SHAFT
idler gear
1шт.
13
238-5222
O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro
1шт.
Part of seal kit R38108
1шт.
14
413-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
1шт.
15
D32118
WASHER
flat, special
1шт.
16
D32000
GASKET
pump, see Figure 6-044 for pump and Figure 6-034 for adapting parts
1шт.
Part of seal kit R38108
1шт.
17
N6952
HOUSING
BODY pressure regulator valve
1шт.
18
D32002
GASKET
pressure regulator valve
1шт.
Part of seal kit R38108
1шт.
19
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
20
214389
PLUG,3/4" - 16 ORB
Includes Ref. 21
1шт.
21
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
Part of seal kit R38108
1шт.
22
N6915
SPRING
outer
1шт.
Part of seal kit R38108
1шт.
Part of overhaul kit R54507
1шт.
23
D72856
SPRING
inner
1шт.
Part of overhaul kit R54507
1шт.
23a
N6953
SHIM,.0359" Thk
1шт.
Part of overhaul kit R54507
1шт.
23b
N6954
SHIM,.0239" Thk
1шт.
Part of overhaul kit R54507
1шт.
24
R30090
TUBE,0.62" ID x 0.87" OD x 3.62" L
relief valve
1шт.
25
238-5018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro
2шт.
Part of seal kit R38108
1шт.
26
273916
PLUG,Hex, 1-5/16" - 12 ORB
Includes Ref. 27
1шт.
Part of seal kit R38108
1шт.
28
R29096
GEAR
idler
1шт.
29
R29093
BALL BEARING,29.99mm ID x 72mm OD x 18.87mm W
ball, idler gear
1шт.
Part of overhaul kit R54507
1шт.
30
R29099
PLATE
retaining
1шт.
31
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
32
D32070
RING
snap, guide carrier
2шт.
Part of overhaul kit R54507
1шт.
33
414-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5
2шт.
34
D32018
PLATE
yoke retaining
1шт.
35
238-5222
O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro
1шт.
Part of seal kit R38108
1шт.
36
R42731
YOKE
UNIVERSAL JOINT YOKE shaft
1шт.
37
D51518
OIL SEAL,57.15mm ID x 82.75mm OD x 13.11mm Thk
oil, drive shaft yoke
1шт.
Part of seal kit R38108
1шт.
38
D32003
GEAR
driven
1шт.
39
425-116
NUT,3/8" - 24, Gr 5
Hex
1шт.
40
D32032
BEARING,1.3782" OD x 1.03
ball bearing
1шт.
41
R29094
BEARING, ROLLER, CYL,34.99mm ID x 72mm OD x 17mm W
BEARING, driven gear
1шт.
Part of overhaul kit R54507
1шт.
42
D32069
RING
snap, driven gear
1шт.
Part of overhaul kit R54507
1шт.
43
D32067
STUD
3/8 NF x 1 - 1/2 inch
1шт.
44
D32005
GASKET
Cover plate
1шт.
Part of seal kit R38108
1шт.
45
9672438
PLUG,7/16" - 20 ORB
1шт.
46
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
47
R46562
PINION
GEAR equipment pump drive
1шт.
48
R54620
BOLT,Hex, Flange, M10 x 35mm CL 10.9
BOLT heavy hex flange, special, Scotchgrip-coated
12шт.
R38108
GASKET KIT
Seal, Includes: Ref. 4, 11, 13, 16, 18, 21, 25, 27, 35, 37, 44, 46 on this figure, Ref. 3, 7, 9, 13, 22, 27 on Figure 6-006 plus three additional seals and one shim not used in this application; also includes D32004 gasket on Fig. 8-006, Ref. 22
1шт.
R54507
KIT
overhaul, Includes: Ref. 5 - 7, 22 - 23B, 29, 32, 41, 42 on this figure and Ref. 1, 6, 10, 11A, 24, 26 on Figure 6-006, kit no longer available, order individual parts
1шт.
