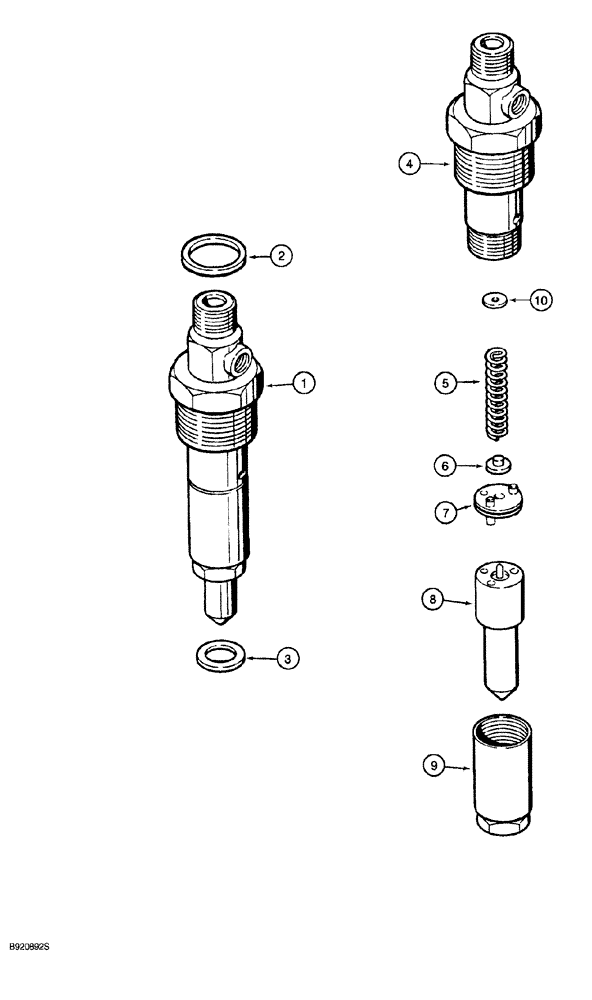

Запчасти Case 1150G (3-015A) - FUEL INJECTION NOZZLE, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER (02) - FUEL SYSTEM

1

J929490

NOZZLE INJECTION

ASSY., fuel injection (Bosch) Includes: Ref. 2 - 9

6шт.

1

JR929490

REMAN-FUEL INJECTOR

Remanufactured ASSY., fuel, component parts shown on this figure do not apply to the remanufactured assembly

6шт.

1

JC929490

CORE-FUEL INJECTOR

Return Number, use this part number to return nozzle assembly core for credit when using a remanufactured assembly

6шт.

2

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING, body to nut, injector body

1шт.

3

J906659

SEAL

injector nozzle, 7 mm tip

1шт.

Whenever a nozzle is removed from the cylinder head, J906659 seal must be replaced.

1шт.

4

NSS

NOT SOLD SEPARAT

BODY injector

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING nozzle pressure

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT nozzle pressure spring

1шт.

7

NSS

NOT SOLD SEPARAT

STOP nozzle valve

1шт.

8

NSS

NOT SOLD SEPARAT

TIP nozzle injector

1шт.

9

NSS

NOT SOLD SEPARAT

NUT cap, nozzle tip

1шт.

A48186

KIT

shim, nozzle opening pressure, starter kit, Includes: Ref. 10, use one shim of the thickness required (used with CAV and Bosch injectors) no longer available, order components separately

1шт.

10

1806233C1

SHIM,1.00mm Thk

Nozzle

5шт.

10

1806234C1

SHIM,1.04mm Thk

Nozzle

5шт.

10

1806235C1

SHIM,1.08mm Thk

Nozzle

5шт.

10

1806236C1

SHIM,1.10mm Thk

Nozzle

5шт.

10

1806237C1

SHIM,1.14mm Thk

Nozzle

5шт.

10

1806238C1

SHIM,1.18mm Thk

Nozzle

5шт.

10

1806239C1

SHIM,1.20mm Thk

Nozzle

5шт.

10

1806240C1

SHIM,1.24mm Thk

Nozzle

5шт.

10

1806241C1

SHIM,1.28mm Thk

Nozzle

5шт.

10

1806242C1

SHIM,1.30mm Thk

Nozzle

5шт.

10

1806243C1

SHIM,1.34mm Thk

Nozzle

5шт.

10

1806244C1

SHIM,1.38mm Thk

Nozzle

5шт.

10

1806245C1

SHIM,1.40mm Thk

Nozzle

5шт.

10

1806246C1

SHIM,1.44mm Thk

Nozzle

5шт.

10

1806247C1

SHIM,1.48mm Thk

Nozzle

5шт.

10

1806248C1

SHIM,1.50mm Thk

Nozzle

5шт.

10

1806249C1

SHIM,1.54mm Thk

Nozzle

5шт.

10

1806250C1

SHIM,1.58mm Thk

Nozzle

5шт.

10

1806251C1

SHIM,1.60mm Thk

Nozzle

5шт.

10

1806252C1

SHIM,1.64mm Thk

Nozzle

5шт.

10

1806253C1

SHIM,1.68mm Thk

Nozzle

5шт.

10

1806254C1

SHIM,1.70mm Thk

Nozzle

5шт.

10

1806255C1

SHIM,1.74mm Thk

Nozzle

5шт.

10

1806256C1

SHIM,1.78mm Thk

Nozzle

5шт.

10

1806257C1

SHIM,1.80mm Thk

Nozzle

5шт.

10

1806258C1

SHIM,1.84mm Thk

Nozzle

5шт.

10

1806259C1

SHIM,1.88mm Thk

Nozzle

5шт.

10

1806260C1

SHIM,1.90mm Thk

Nozzle

5шт.

10

1806261C1

SHIM,1.94mm Thk

Nozzle

5шт.

10

1806262C1

SHIM,1.98mm Thk

Nozzle

5шт.
