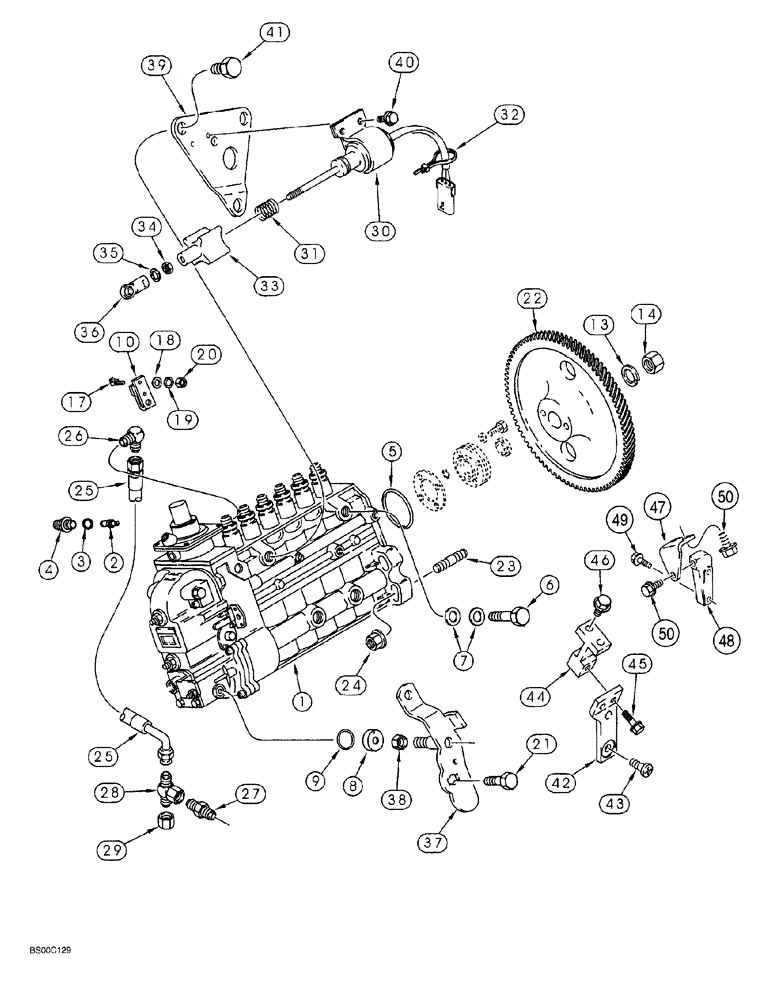

Запчасти Case 1150G (3-013A) - FUEL INJECTION PUMP AND DRIVE, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 & JJG0218479 AND AFTER (02) - FUEL SYSTEM

1

J929409

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY., fuel injection, new, Includes: Ref. 2 - 21

1шт.

1

JR929409

REMAN-INJECTION PUMP

ASSY., fuel, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC929409

CORE-INJECTION PUMP

Return Number

1шт.

2

A77720

PIN

timing

1шт.

3

J928981

LOCK WASHER

timing plug, Replaces: 3051337R1

1шт.

4

J912888

PLUG

timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

sealing

1шт.

6

J932096

VALVE

overflow, Replaces: J912886

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER valve sealing

2шт.

8

691292C1

RETAINER

HOUSING spring return

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

sealing, special

1шт.

10

1808728C1

LEVER

throttle control

1шт.

13

A77775

LOCK WASHER

lock

1шт.

14

A41852

LOCK NUT

hex, self-locking

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

BOLT throttle lever

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

20

829-1306

NUT,M6, Cl 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

22

J931450

PINION

GEAR fuel pump

1шт.

23

J915036

STUD

pump mounting

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

Flexible

1шт.

26

A77512

ELBOW

90°

1шт.

27

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

NIPPLE hex, 1/8 PT x 1-1/16 inch

1шт.

28

J924346

TEE

oil pressure

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

hex, 7/16 - 20 inch

1шт.

30

J932530

SOLENOID

fuel shutoff, 24 volt, Replaces: J931590, Includes: Ref. 31 - 36

1шт.

31

311100A1

SPRING

return, plunger, Replaces: 251828A1

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

33

J925171

BOOT

protective, plunger

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

36

311099A1

JOINT

ball, Replaces: L53928

1шт.

37

J930657

LEVER

pump shutoff

1шт.

38

J930683

LOCK NUT

hex, 5 mm - 0.8

1шт.

39

J930589

SUPPORT

BRACKET solenoid mounting

1шт.

40

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

BOLT heavy hex flange, 6 - 10 x 12 mm

2шт.

41

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

BOLT hex, 16 - 20 x 12 mm

3шт.

42

J928408

BRACE

fuel pump, no longer available, order J863311

1шт.

43

J928231

SCREW,Truss Torx, M8 x 1.25 x 25mm, Cl 10.9

round head cap, if used

2шт.

44

J928407

BRACE

fuel pump, no longer available, order J863312

2шт.

45

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

Heavy, if used

1шт.

46

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

If used

2шт.

47

J863311

BRACE

fuel pump, Replaces: J928408

1шт.

48

J863312

BRACE

fuel pump, Replaces: J928407

1шт.

49

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Used with Ref. 47, 48

2шт.

50

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

Used with Ref. 47, 48

3шт.
