(3-011C) - ANEROID SYSTEM, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER

Запчасти Case 1150G (3-011C) - ANEROID SYSTEM, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER (02) - FUEL SYSTEM

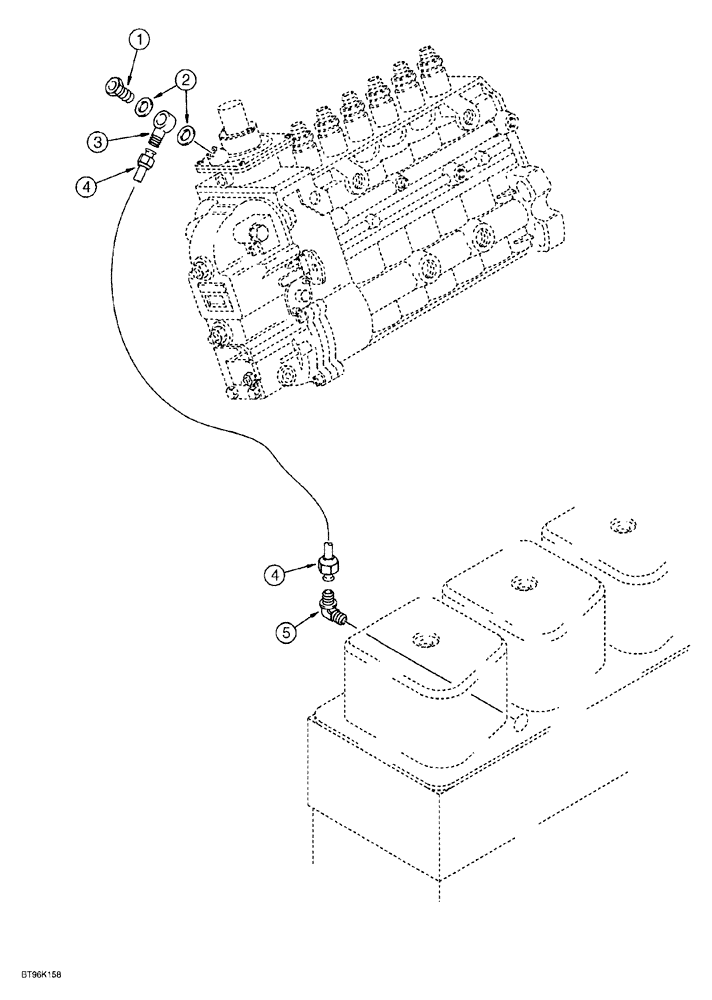

Схема запчастей Case 1150G - (3-011C) - ANEROID SYSTEM, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER (02) - FUEL SYSTEM
4
3
2
1
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J903035

BANJO BOLT

hex, 12 - 1.5 x 24 mm

1шт.

2

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.

3

J919644

FITTING

CONNECTOR banjo

1шт.

4

J926739

TUBE

aneroid, nylon

1шт.

5

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

Compression, 3/16 tube O.D. x 1/8 inch PT, Replaces: J910265

1шт.

Выбрано товаров: 5
