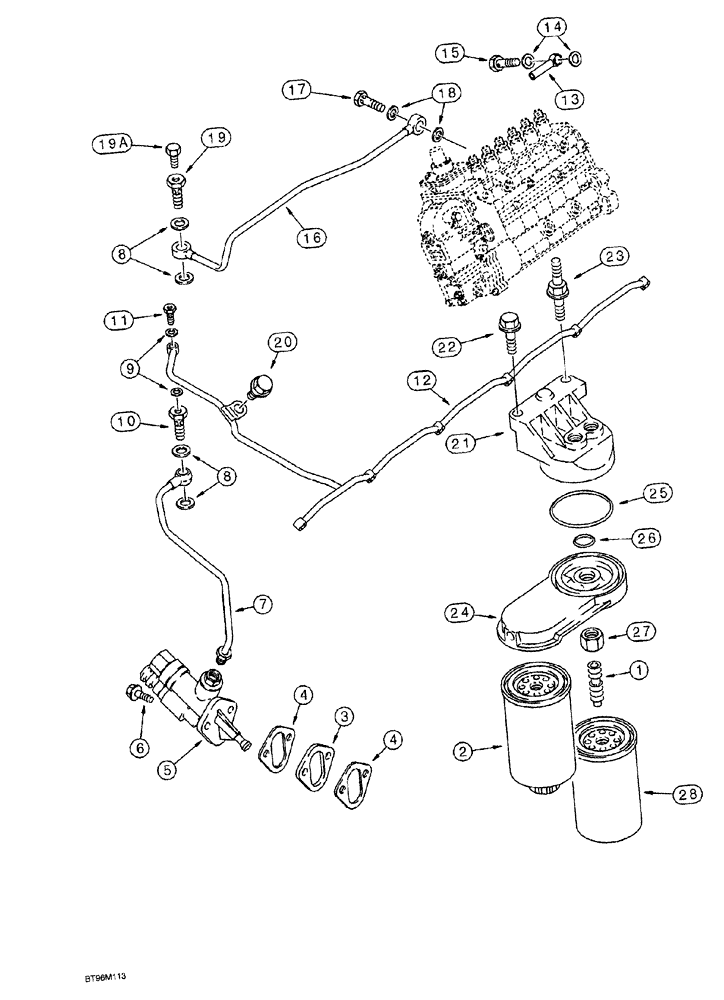

Запчасти Case 1150G (3-011A) - FUEL FILTER AND LIFT PUMP, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER (02) - FUEL SYSTEM

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter

1шт.

2

J925274

FILTER, FUEL

primary

1шт.

3

J914284

SPACER

fuel transfer pump mounting

1шт.

4

J931348

GASKET

mounting, fuel transfer pump

2шт.

5

J936316

FUEL PUMP

lift, fuel, Replaces: J930134

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J928423

FUEL TUBE,8 mm OD x 323.9 mm L

supply, fuel pump to fuel filter

1шт.

8

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

10

J916361

BANJO BOLT

banjo connector, 12 - 1.5 x 24 mm

1шт.

11

J924726

BANJO BOLT

check

1шт.

12

J926103

MANIFOLD

TUBE, fuel

1шт.

13

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, special, 14 x 20 x 1 mm

2шт.

15

J932096

VALVE

overflow, Replaces: J912886

1шт.

16

J930735

FUEL TUBE,8 mm OD

supply, fuel

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

connector

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, special, 14 x 20 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSY., banjo hex, special, Includes: Ref. 19, 19A

1шт.

19

NSS

NOT SOLD SEPARAT

BOLTconnector, banjo hex, special

1шт.

19a

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

21

J933752

HEAD

fuel filter, Replaces: J926788

1шт.

22

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

23

J928527

FLANGE BOLT,Spcl, Hex, M6 x 1 - M8 x 1.25 x 35mm, Full Thd

BOLT hex flange, special

1шт.

24

J897331

SUPPORT

HEAD fuel filter

1шт.

25

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID

1шт.

26

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID

1шт.

27

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

28

J903640

FILTER, FUEL

secondary

1шт.
