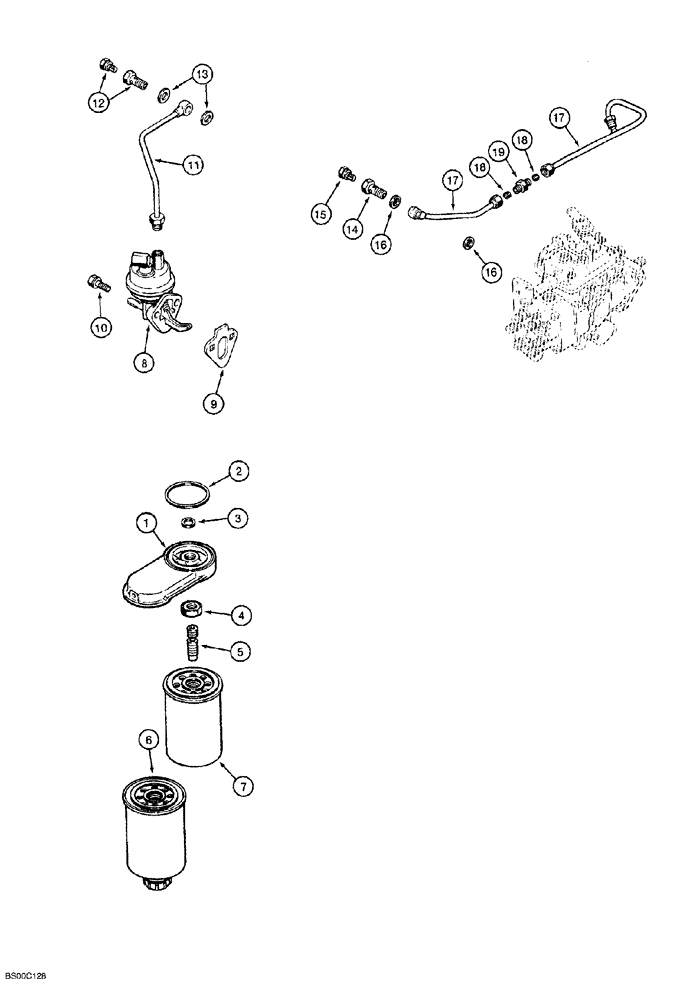

Запчасти Case 1150G (3-010) - FUEL FILTER AND LIFT PUMP, 6T-590 ENGINE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (02) - FUEL SYSTEM

1

J897331

SUPPORT

HEAD fuel filter, Replaces: J915240

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID

1шт.

4

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter, Replaces: J903485

1шт.

A77470

SEPARATOR

KIT fuel, Includes: Ref. 6, 7

1шт.

6

J925274

FILTER, FUEL

primary

1шт.

7

J903640

FILTER, FUEL

secondary

1шт.

8

J928143

PUMP

lift, fuel, Replaces: J904374

1шт.

9

J931059

GASKET

mounting, fuel transfer pump, Replaces: J914304, J923054

1шт.

10

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

11

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

fuel supply

1шт.

12

J903035

BANJO BOLT

hex, 12-15 x 24 mm

1шт.

13

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSY., banjo hex, special, Includes: Ref. 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

16

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.

17

J918640

FUEL TUBE

TUBE, fuel supply, two-piece, Includes: Ref. 18, 19

1шт.

18

222-103

SLEEVE,5/16" Tube

2шт.

19

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER compression, 5/16 inch tube O.D.

1шт.
