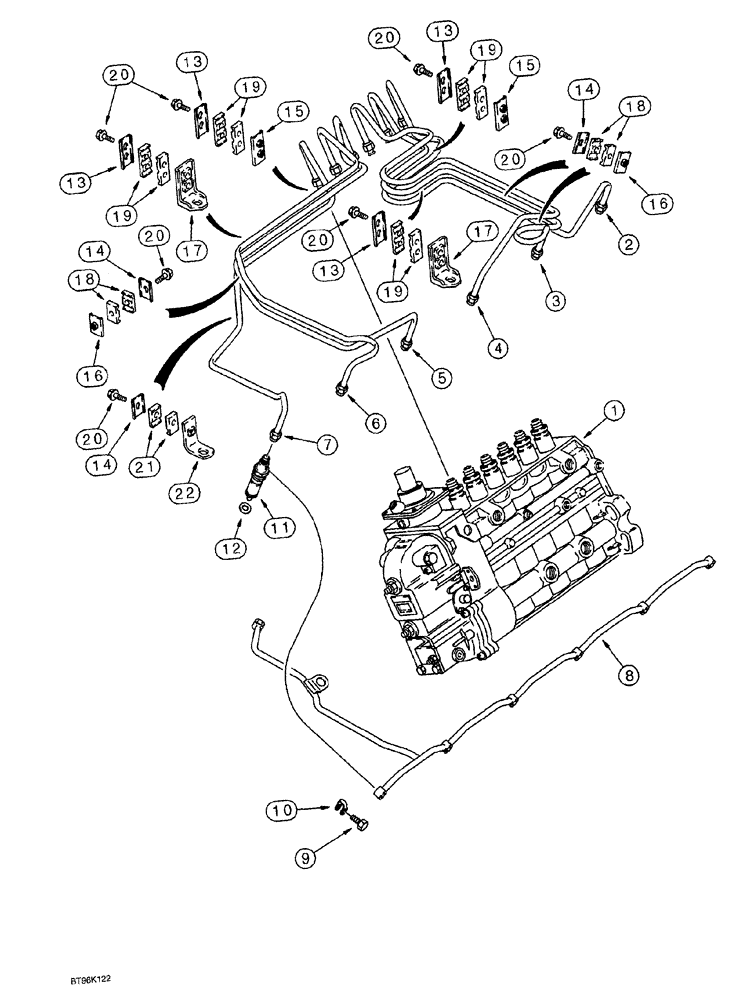

Запчасти Case 1150G (3-009A) - FUEL INJECTION SYSTEM, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJGO218479 AND AFTER (02) - FUEL SYSTEM

1

J929409

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY., fuel injection, new, see Figure 3-013A

1шт.

2

J929462

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 1 cylinder, Replaces: J932007

1шт.

3

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 2 cylinder

1шт.

4

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 3 cylinder

1шт.

5

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 4 cylinder

1шт.

6

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 5 cylinder

1шт.

7

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 6 cylinder

1шт.

8

J926103

MANIFOLD

TUBE fuel

1шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

10

J903380

SEAL

connector

6шт.

11

J929490

NOZZLE INJECTION

ASSY., fuel injection, see Figure 3-015A

6шт.

11

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

11

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

6шт.

12

J906659

SEAL

injector nozzle, 7 mm injector tip

6шт.

13

J904519

SUPPORT

tube retaining

4шт.

14

CURJ904711

CLAMP

fuel tube

4шт.

15

J917716

BRACE

fuel tube

2шт.

16

J917717

BRACE

fuel tube

3шт.

17

J282942

BRACKET

fuel tube

2шт.

18

J917746

CLAMP

fuel tube

5шт.

19

J917747

CLAMP

fuel tube

8шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

12шт.

21

J919359

CLAMP

vibration

2шт.

22

J940840

BRACE

fuel tube

1шт.
