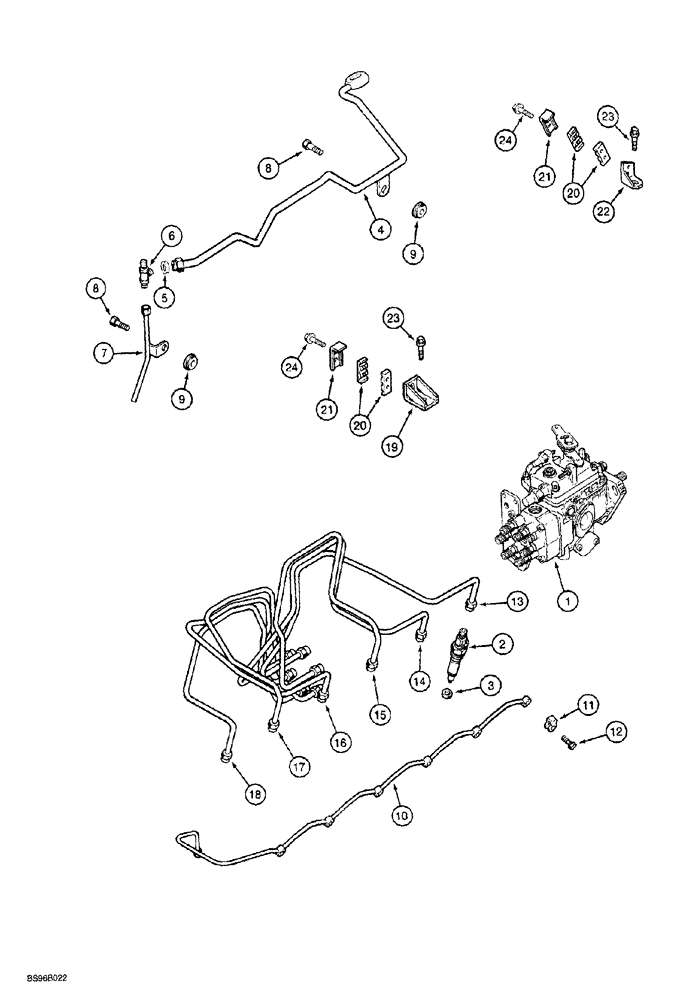

Запчасти Case 1150G (3-008) - FUEL INJECTION SYSTEM, 6T-590 ENGINE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (02) - FUEL SYSTEM

1

J916934

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY., fuel injection, new, see Figure 3-012

1шт.

2

REF

INSTRUCTION

INJECTOR ASSY., fuel, see Figure 3-014

6шт.

3

J906659

SEAL

injector nozzle, 7 mm injector tip, see Figure 3-014, Ref. 3

6шт.

4

J920889

FUEL TUBE

fuel drain, Replaces: J905705, Includes: Ref. 5

1шт.

Bolt to tappet cover, see Figure 2-040, Ref. 22.

1шт.

5

222-101

SLEEVE,3/16" Tube

1шт.

6

222-121

TEE,3/16", Flex Tubing

Remove and discard hex nuts and sleeves before assembly

1шт.

7

J905692

FUEL TUBE

fuel return, tee to fuel tank

1шт.

Bolt to tappet cover, see Figure 2-040, Ref. 22.

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

9

J928759

SEALING WASHER

cover bolt, Replaces: J900267

1шт.

10

J909696

TUBE

TUBE manifold, fuel drain

1шт.

11

J903380

SEAL

connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

13

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

fuel injector, No. 1 cylinder

1шт.

14

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

fuel injector, No. 2 cylinder

1шт.

15

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

fuel injector, No. 3 cylinder

1шт.

16

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

fuel injector, No. 4 cylinder

1шт.

17

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

fuel injector, No. 5 cylinder

1шт.

18

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

fuel injector, No. 6 cylinder

1шт.

19

J917777

BRACE

fuel tube

1шт.

20

J917747

CLAMP

fuel tube

4шт.

21

J904519

SUPPORT

tube retaining

2шт.

22

J917778

BRACE

fuel tube

1шт.

23

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special

2шт.

24

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

2шт.
