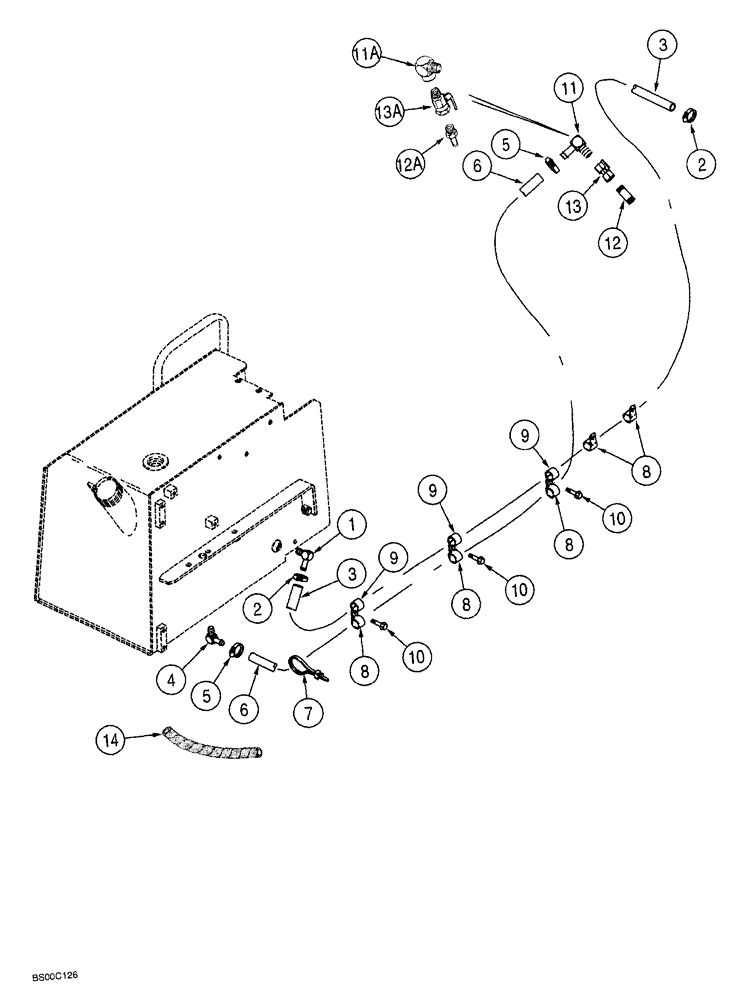

Запчасти Case 1150G (3-007A) - FUEL LINES, JJG0218023 AND JJG0218479 AND AFTER (02) - FUEL SYSTEM

1

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

90°, 3/8 stem end x 1/4 inch PT

1шт.

2

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

adj., 1/2 - 29/32 inch dia., Replaces: 214-1408

2шт.

3

243561A1

FUEL HOSE,9.53 mm ID x 2500.00 mm , SAE 30R2

Return

1шт.

4

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

5

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

Adjustable, if used

2шт.

5

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

adj., 1/2 - 29/32 inch dia, if used

2шт.

6

243560A1

FUEL HOSE,12.70 mm ID x 1900.00 mm , SAE 30R2

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

5шт.

9

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type

3шт.

10

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

3шт.

11

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

ELBOW, 90°, 1/2 inch stem end x PT, used with 242573A1 valve

1шт.

11a

218-923

ELBOW,90 Degree, 1/2" NPTF Male x 3/8" NPSM Fem Sw

ELBOW, 90°, 1/2 PT x 3/8 inch swivel str pipe, used with 284721A1 valve

1шт.

12

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE straight, 1/2 PT x 2 inch, used with 242573A1 valve

1шт.

12a

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

Adapter, straight, used with 284721A1 valve

1шт.

13

242573A1

VALVE

1/2 fem PT x 1/2 inch fem PT, fuel flow, if used

1шт.

13a

284721A1

VALVE

shutoff, fuel flow, if used

1шт.

14

R12586

TAPE

SLEEVE hose

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE,LARGE bulk, 10 (3/8) x 15 (5/8) x 7620 mm (300 inch) long

1шт.

S118466X

LARGE HOSE

HOSE,LARGE bulk, 13 (1/2) ID x 7620 mm (300 inch) long

1шт.
