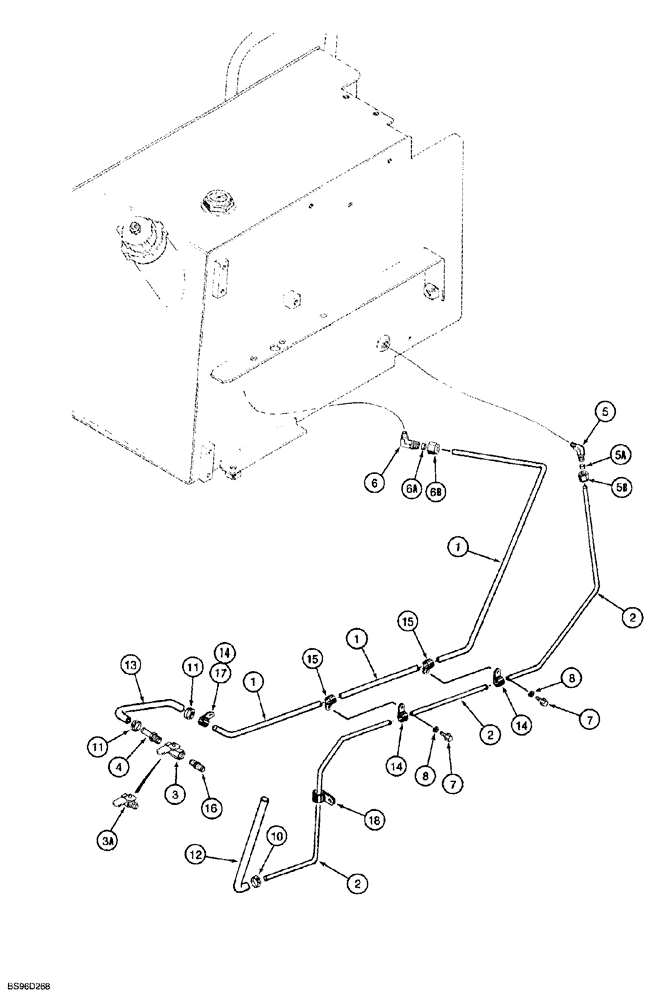

Запчасти Case 1150G (3-006) - FUEL LINES, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (02) - FUEL SYSTEM

1

143393A1

FUEL TUBE,9.53 mm OD, 1137, 325 mm Length

fuel line

1шт.

2

143378A1

FUEL TUBE,6.35 mm OD, 1136, 413 mm Length

fuel, return

1шт.

3

R47797

VALVE

shutoff, used with Ref. 16, 221-135, if used

1шт.

3a

113092A1

VALVE

shutoff, if used

1шт.

4

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter - straight

1шт.

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ELBOW, 90°, compression, 1/4 tube O.D. x 1/4 inch PT, Includes: Ref. 5 - 5B

1шт.

5

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

5a

222-102

SLEEVE,1/4" Tube

1шт.

5b

87017024

TUBE NUT,1/2"-24

hex, 1/4 tube O.D. x 1/2-24 inch

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ELBOW, 90°, compression, 3/8 tube O.D. x 1/4 inch PT, no longer available, order Ref. 6 - 6B

1шт.

6

222-4047

ELBOW

ELBOW, 90°, compression, 3/8 tube O.D. x 1/4 inch PT

1шт.

6a

222-104

SLEEVE,3/8" Tube

3/8 inch tube O.D.

1шт.

6b

222-114

NUT,5/8"-24

hex, 3/8 tube O.D. x 5/8-24 inch

1шт.

7

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

If used

2шт.

10

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adj

2шт.

11

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

12

S119600

FUEL HOSE,0.19" ID x 10.00", SAE 30R3

Cut from Bulk Hose, See below

1шт.

13

R49444

FUEL HOSE,9.53 mm ID x 400.00mm, SAE 30R3

1шт.

14

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

P-type, 1/4 inch ID

2-3шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type

2шт.

16

221-135

PIPE,Nipple, 1/4" NPT x 1 5/8"

Used with Ref. 3, R47797, if used

1шт.

17

51200321

CLAMP

P-type, 1/4 inch ID, if used

1шт.

18

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

S118575X

HOSE

bulk, 5 (3/16) x 10 (3/8) x 7620 mm (300 inch) long

1шт.

A21562X

LARGE HOSE,9.65mm ID x 711.2mm L

HOSE,LARGE bulk, 10 (3/8) ID x 7620 mm (300 inch) long

1шт.
