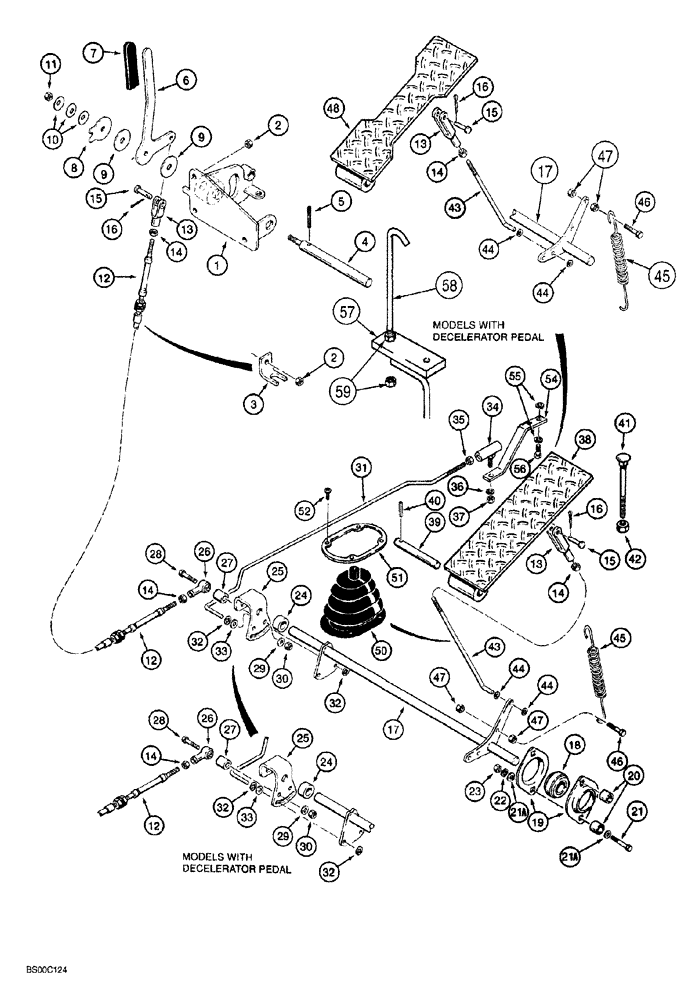

Запчасти Case 1150G (3-003C) - THROTTLE CONTROL LINKAGE, JJG0218023 AND JJG0218479 AND AFTER (01) - ENGINE

1

106584A1

BRACKET

mounting, throttle and transmission controls, see Figure 6-046 for transmission control components

1шт.

2

231-1446

NUT,3/8" - 16, Gr 5

4шт.

3

R52478

cable support, throttle cable

1шт.

4

R57937

SHAFT

pivot, throttle and transmission control levers

1шт.

5

38-11632

LOCK PIN,1/4" x 2", Slotted

1шт.

6

R57933

LEVER

throttle control

1шт.

7

R52376

MOLDING

GRIP lever

1шт.

8

R57932

LARGE PLATE

PLATE, LARGE friction disc, throttle control

1шт.

9

R52389

DISC

friction, throttle lever

2шт.

10

R58742

WASHER

Belleville, throttle lever mounting

3шт.

11

231-1446

NUT,3/8" - 16, Gr 5

1шт.

12

R57954

CABLE

hand throttle control

1шт.

13

239406A1

CLEVIS,5/16-24"

adjustable, 5/16 inch NF, for service use 213-125

2шт.

14

425-115

NUT,5/16"-24, G5

2шт.

15

D149287

PIN,7.9mm OD x 26.72mm L

Clevis, Special, 5/16 x 15/16 inch, hardened

2шт.

16

432-612

COTTER PIN,3/32" x 3/4"

2шт.

17

R57907

SHAFT

cross, throttle control

1шт.

18

468390R92

BALL BEARING,0.6255" ID x 40 mm OD x 0.75"

ball, throttle shaft

2шт.

19

F13526

FLANGED BEARING

bearing, cross shaft

4шт.

20

D40405

SPACER

SPACER flange

4шт.

21

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

4шт.

21a

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

8шт.

22

492-11025

LOCK WASHER,1/4"

4шт.

23

425-104

NUT,1/4"-20, Cl 5

4шт.

24

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14.3 mm (9/16 inch)

1шт.

25

R57904

LEVER

cable control

1шт.

26

R47498

END

ball joint, throttle cable

1шт.

27

F13386

SPACER

ball joint end

1шт.

28

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

29

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

1шт.

30

231-1445

NUT,5/16"-18, GB

1шт.

31

244014A1

ROD

throttle, at injection pump

1шт.

32

100-1425

SNAP RING,#25, Ext

2шт.

33

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

34

225619A1

BALL JOINT

Replaces: 245292A1

1шт.

35

425-114

NUT,1/4"-28, G5

1шт.

36

492-11025

LOCK WASHER,1/4"

1шт.

37

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

38

R26937

PEDAL

foot throttle

1шт.

39

R17364

SHAFT

pedal, pivot

1шт.

40

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

41

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

BOLT carriage, 1/2 NC x 4 inch, grade 2, accelerator stop

1шт.

42

425-108

NUT,1/2" - 13, Gr 5

1шт.

43

141932A1

LARGE PLATE

PLATE, LARGE ROD throttle, foot pedal

1шт.

44

100-1431

SNAP RING,#31, Ext

2шт.

45

R36912

SPRING

return, foot pedal

1шт.

46

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

47

425-104

NUT,1/4"-20, Cl 5

4шт.

48

R57935

PEDAL

foot throttle, decelerator, if used, for installation of decelerator parts, see instruction

1шт.

49

101638A1

DECAL

caution, this unit is equipped with a decelerator pedal, not shown, see Figure 9-074

1шт.

50

R47896

BOOT

control lever

1шт.

Used on models with cab only

1шт.

51

187174A1

RETAINER

boot

1шт.

Used on models with cab only

1шт.

52

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

4шт.

Used on models with cab only

1шт.

53

223-113

TAPE, 19 (3/4) x 152 mm (6 inch) long, not shown

1шт.

Used on models with cab only

1шт.

54

242864A1

LEVER

accelerator

1шт.

55

892-11006

LOCK WASHER,M6

4шт.

56

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

57

D67114

PLATE

used with item 48 decelerator pedal

1шт.

58

R27652

ROD

BOLT J-type, used with Ref. 48 decelerator pedal

1шт.

59

425-105

NUT,5/16"-18, G5

Used with Ref. 48 decelerator pedal

2шт.
