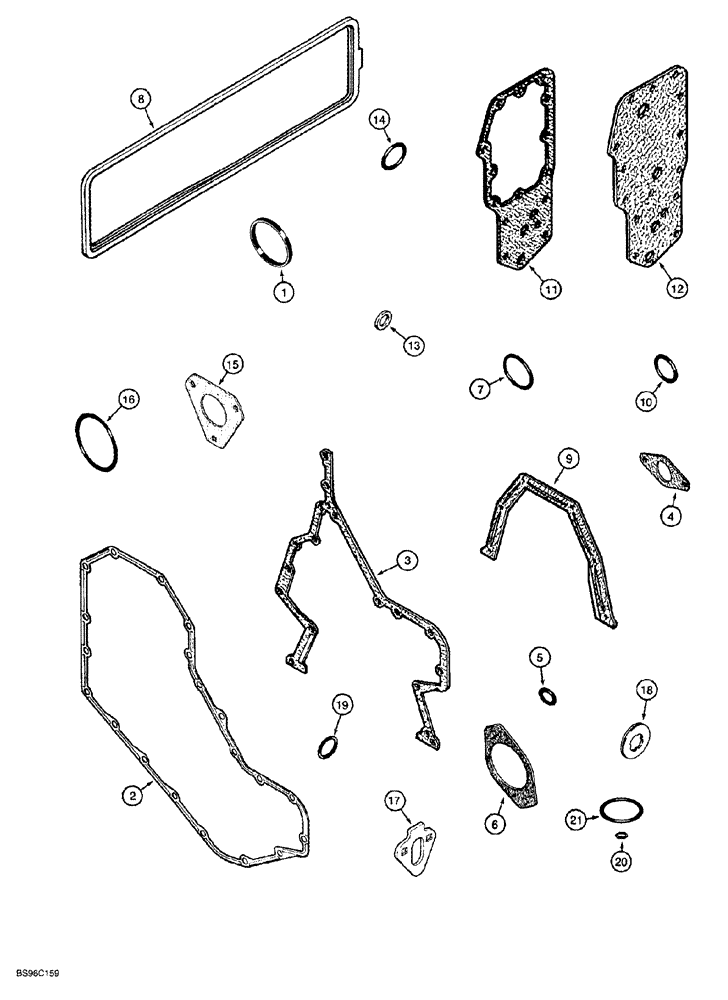

Запчасти Case 1150G (2-050) - GASKET KIT, 6T-590 ENGINE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (01) - ENGINE

A77861

GASKET KIT

cylinder block, Replaces: A77674, Includes: Ref. 1 - 21

1шт.

For complete engine overhaul, order (1) each of valve grind kit, Figure 2-048, cylinder block kit, oil pan kit, Figure 2-030, front and rear crankshaft seal kit, Figure 2-042 and required cylinder head gasket, Figure 2-032.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

2

J914385

GASKET,1.02mm Thk

front cover

1шт.

3

J931351

GASKET

gear housing, Replaces: J916131

1шт.

4

J905595

GASKET

timing pin housing

1шт.

5

J913994

O-RING

sealing

1шт.

6

J929751

GASKET

access cover plate, Replaces: J919601

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

8

J928832

GASKET

tappet cover, Replaces: J907617

1шт.

9

J928493

GASKET

rear cover retainer, Replaces: J914386

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

11

J929791

GASKET

oil cooler core, Replaces: J926760

1шт.

12

J929792

GASKET,1.2mm Thk

filter head, Replaces: J918257

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm (1-1/2 inch) ID, engine oil filler, not used in this application

1шт.

15

J914389

GASKET

pump mounting

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

17

J931059

GASKET

mounting, fuel transfer pump, Replaces: J914304, J923054

1шт.

18

J928759

SEALING WASHER

cover bolt, push rod, Replaces: J900267

6шт.

19

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

20

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID

1шт.

21

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID

1шт.
