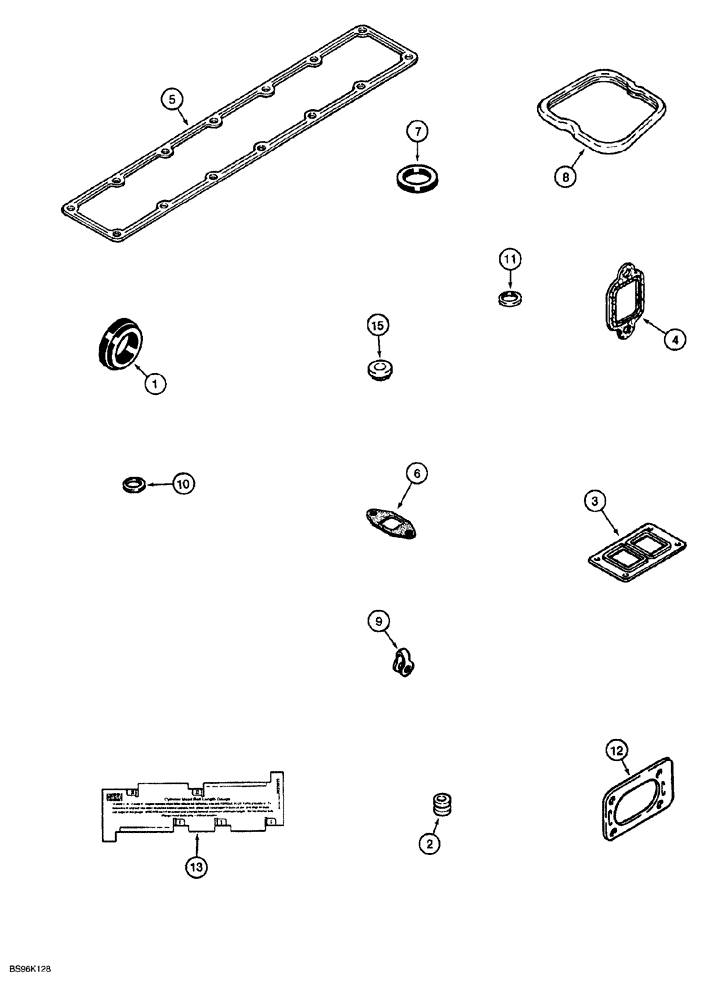

Запчасти Case 1150G (2-049A) - GASKET KIT, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER, VALVE GRIND (01) - ENGINE

A77866

KIT

gasket, valve grind, Includes: Ref. 1 - 14

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, on Figure 2-033A.

1шт.

1

J923331

GASKET

thermostat housing

1шт.

2

J901097

SEAL

valve

12шт.

3

J901356

GASKET,0.5mm Thk

turbocharger to manifold, Replaces: J709861

1шт.

4

J927154

GASKET,0.38mm Thk

exhaust manifold, Replaces: J905443

6шт.

5

J931347

GASKET

mounting, intake manifold cover

1шт.

6

J931350

GASKET

turbo oil drain tube, Replaces: J519807, J928919

1шт.

7

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap, not used in this application

1шт.

8

J930906

GASKET

SEAL rocker arm cover

6шт.

9

J903380

SEAL

connector, return manifold

6шт.

10

J906659

SEAL

injector nozzle, 7 mm injector tip

6шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING sealing, Serial Range: body-nut

6шт.

12

J914856

GASKET,1.02mm Thk

air crossover connection

1шт.

13

J823921

GAUGE

cylinder head, bolt length

1шт.

14

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, rocker arm cover, Replaces: J928406

6шт.
