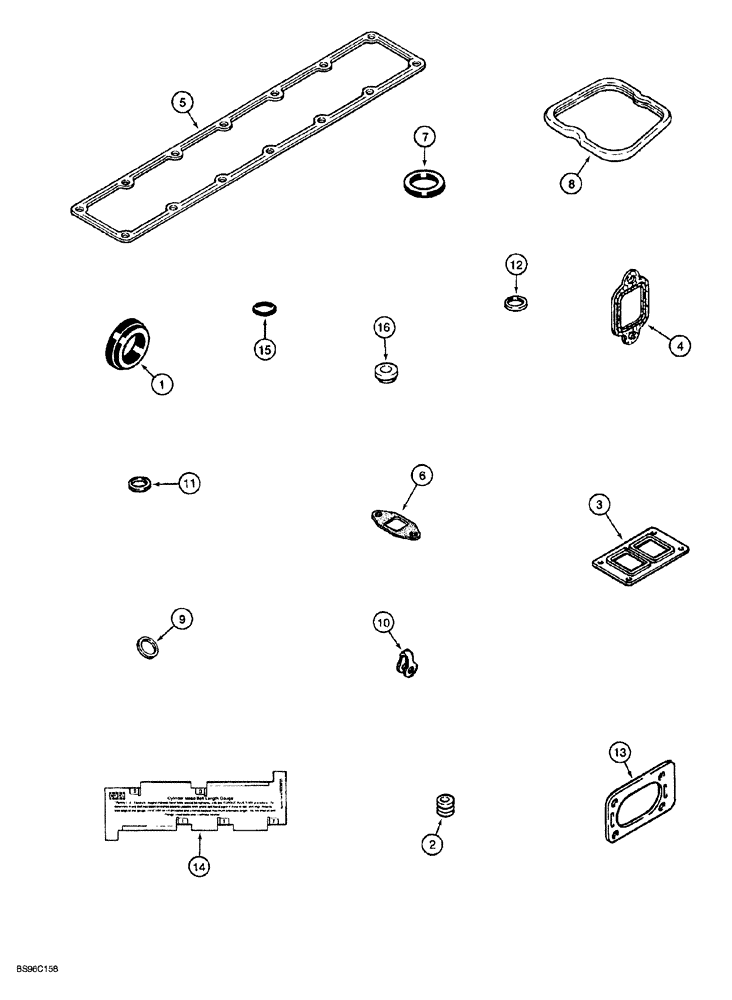

Запчасти Case 1150G (2-048) - GASKET KIT, 6T-590 ENGINE, PRIOR TO JJG0218023 AND JG0218024 - JJG0218478, VALVE GRIND (01) - ENGINE

A77859

GASKET KIT

valve grind, Replaces: A77793, Includes: Ref. 1 - 16

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, on Figure 2-032.

1шт.

1

J923331

GASKET

thermostat housing

1шт.

2

J901097

SEAL

valve

12шт.

3

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

4

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

5

J914029

GASKET

mounting, intake manifold cover

1шт.

6

J928919

GASKET

turbo oil drain tube, Replaces: J914388

1шт.

7

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap, not used in this application

1шт.

8

J930906

GASKET

SEAL rocker arm cover, Replaces: J902666, J929795

6шт.

9

J900808

SEAL

injector nozzle, 9 mm injector tip, not used in this application

6шт.

10

J903380

SEAL

connector, return manifold

6шт.

11

J906659

SEAL

injector nozzle, 7 mm injector tip

6шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING sealing, Serial Range: body-nut

6шт.

13

J914856

GASKET,1.02mm Thk

air crossover connection

1шт.

14

J823921

GAUGE

cylinder head, bolt length

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, rocker arm

6шт.

16

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, rocker arm cover, Replaces: J928406

6шт.
