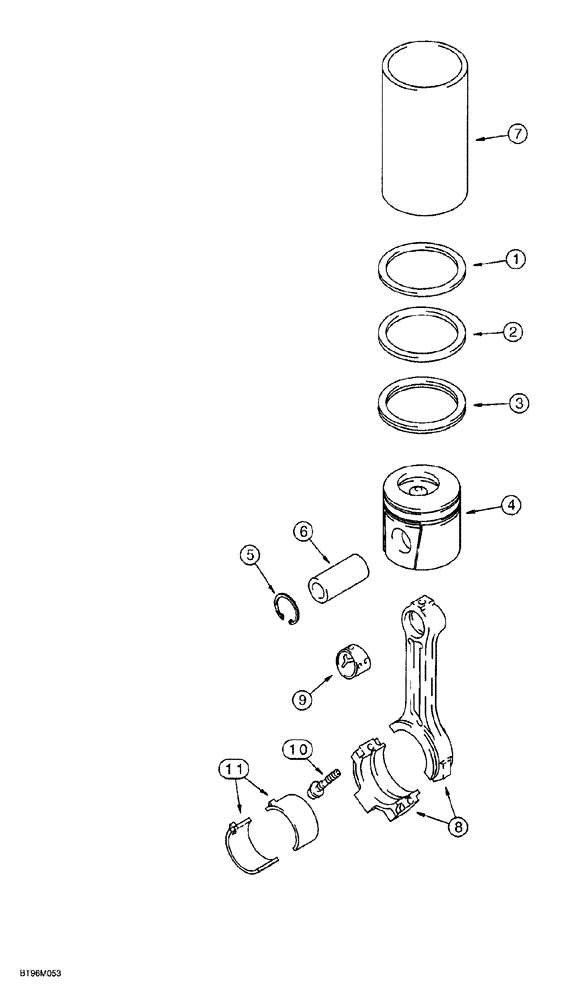

Запчасти Case 1150G (2-047A) - PISTONS AND CONNECTING RODS, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER (01) - ENGINE

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

standard, Includes: J802746 and Ref. 1 - 5

6шт.

J802746

PISTON RING SET

KIT, standard, Includes: Ref 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, standard

1шт.

5

J901706

RING

snap

2шт.

6

J919053

PISTON PIN

1шт.

J802764

PISTON & RINGS KIT

0.5 mm oversize, Includes: J802422 and Ref. 1 - 5

6шт.

J802422

PISTON RING SET

KIT, 0.5 mm, oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, 0.5 mm, oversize

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, 0.5 mm, oversize

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, 0.5 mm, oversize

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 0.5 mm, oversize

1шт.

5

J901706

RING

snap

2шт.

6

J919053

PISTON PIN

1шт.

J802765

PISTON & RINGS KIT

1.0 mm oversize, Includes: J802423 and Ref. 1 - 5

6шт.

J802423

PISTON RING SET

KIT, 1.0 mm, oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, 1.0 mm, oversize

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, 1.0 mm, oversize

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, 1.0 mm, oversize

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm, oversize

1шт.

5

J901706

RING

snap

2шт.

6

J919053

PISTON PIN

1шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair (when liner is installed, use J802747 standard piston kit)

1шт.

J925232

ROD, CONNECTING

ASSY., new, Includes: Ref. 8 - 10

1шт.

JR925232

ROD

Assy., connecting, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC925232

CORE-ROD CONNECTING

Return Number

1шт.

84145405R

REMAN-CONNECTING ROD

1150G JJG0218023 AND JJG0218479 AND AFTER (2/95-), Reman For New PN J925232

1шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

1шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod Return Number, use this part number to return connecting rod for credit when using a remanufactured assembly

1шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

9

J901085

BUSHING

Connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special, connecting rods

2шт.

11

A77465

BEARING SET

KIT, upper and lower set, standard

6шт.

11

A77466

BEARING SET

KIT, upper and lower set, 0.25 mm, oversize

6шт.

11

A77467

BEARING LINER

KIT, upper and lower set, 0.50 mm, oversize

6шт.

11

A77468

BEARING SET

KIT, upper and lower set, 0.75 mm, oversize

6шт.

11

A77469

BEARING SET

KIT, upper and lower set, 1.00 mm, oversize

6шт.
