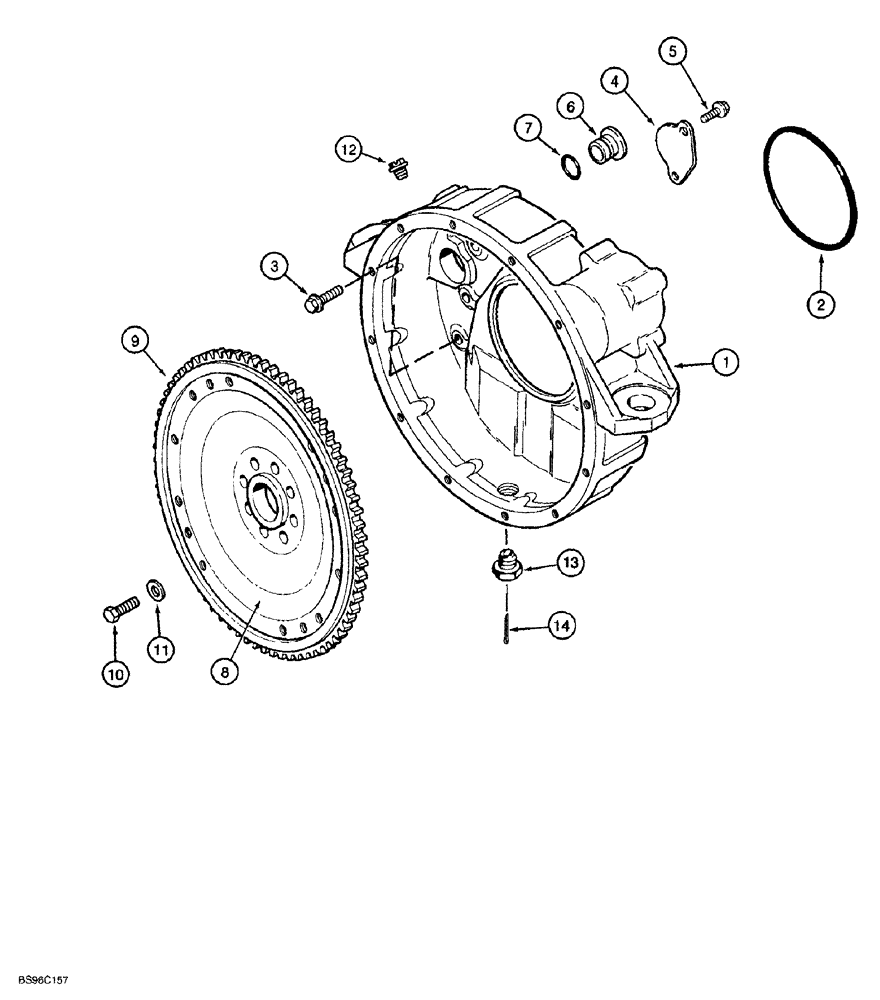

Запчасти Case 1150G (2-045A) - FLYWHEEL AND HOUSING, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JG0218479 AND AFTER (01) - ENGINE

1

J931714

HOUSING

flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

cover

1шт.

5

J912072

SELF-TAP SCREW

hex washer head, special, 8 - 1.25 x 15 mm, plate retaining

2шт.

6

J910248

PLUG

flywheel housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

8

J908832

FLYWHEEL WITH GEAR

ASSEMBLY, engine, Includes: Ref. 9

1шт.

9

J905427

GEAR

ring, flywheel

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special, flywheel bolt

8шт.

12

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

13

L113178

PLUG

BUSHING reducer, 3/4 inch PT, order separately, not included with engine

1шт.

14

32-1416

COTTER PIN,7/32" x 1"

Order separately, not included with engine

1шт.
