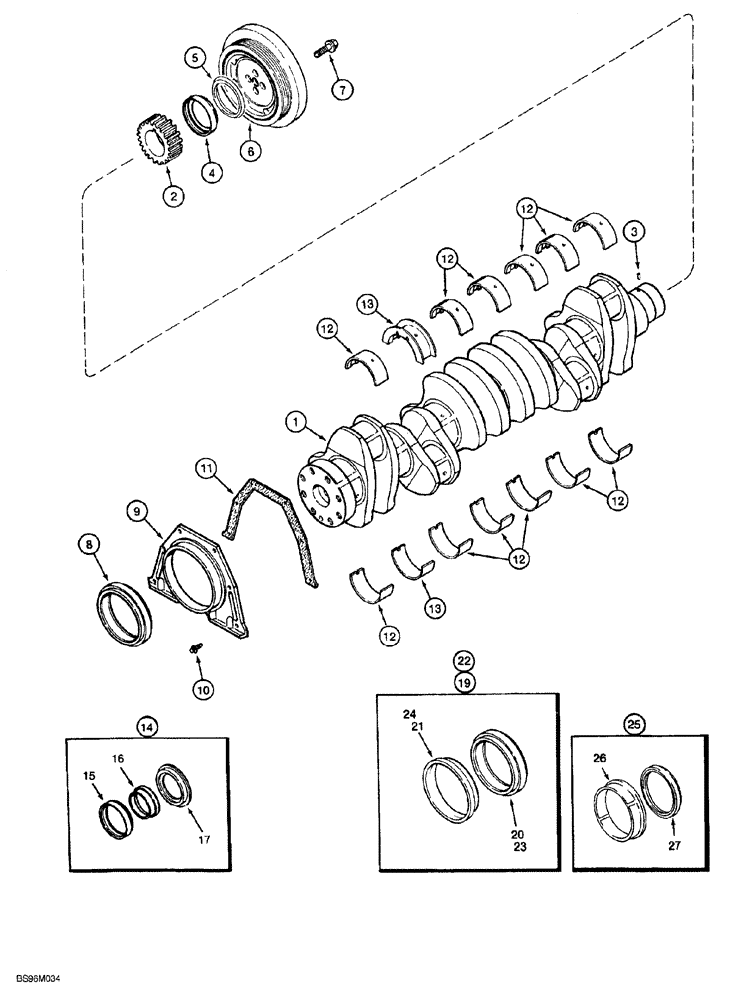

Запчасти Case 1150G (2-042) - CRANKSHAFT, 6T-590 ENGINE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (01) - ENGINE

JR908032

REMAN-CRANKSHAFT

ASSY., engine, Replaces: JR918234, for service order J918324 crankshaft, Ref. 1

1шт.

JC908032

CORE-CRANKSHAFT

RETURN NUMBER, use this part number to return crankshaft core for credit when using a remanufactured assembly

1шт.

1

J918324

CRANKSHAFT

ASSY., engine, new, Includes: Ref. 2, 3

1шт.

2

J929027

PINION

GEAR crankshaft, Replaces: J919681

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order Ref. 14, kit

1шт.

5

J926430

SHAFT SEAL

dust, crankshaft, service repair only

1шт.

6

J914454

DAMPER

PULLEY crankshaft vibration damper

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange, special, 12 - 1.25 x 36 mm

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft rear, order Ref. 19 kit

1шт.

9

J921043

REAR COVER

RETAINER seal

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

11

J928493

GASKET

rear cover retainer, Replaces: J914386

1шт.

12

A77405

CRANKSHAFT BEARING

main, upper and lower set, standard

6шт.

12

A77472

BEARING SET

main, upper and lower set, 0.25 mm undersize

6шт.

12

A77474

BEARING SET

main, upper and lower set, 0.50 mm undersize

6шт.

12

A77476

BEARING SET

main, upper and lower set, 0.75 mm undersize

6шт.

12

A77478

BEARING SET

main, upper and lower set, 1.00 mm undersize

6шт.

13

A77896

BEARING SET

main, upper and lower set, standard, Replaces: A77406

1шт.

13

A77473

THRUST BEARING

main, upper and lower set, 0.25 mm undersize

1шт.

13

A77475

THRUST BEARING

main, upper and lower set, 0.50 mm undersize

1шт.

13

A77477

THRUST BEARING

main, upper and lower set, 0.75 mm undersize

1шт.

13

A77479

THRUST BEARING

main, thrust, upper and lower set, 1.00 mm undersize

1шт.

13

A77841

THRUST BEARING

main, upper and lower set, 0.50 mm undersize, 0.50 mm oversize

1шт.

13

A77840

THRUST BEARING

main, upper and lower set, 1.00 mm undersize, 1.00 mm oversize

1шт.

14

J904353

GASKET KIT

oil seal, crankshaft front, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

19

J802820

PACKAGE, REPAIR

KIT oil seal, crankshaft front, includes wear sleeve, Includes: Ref. 20 - 21

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

20a

NSS

NOT SOLD SEPARAT

SLEEVE wear, not shown

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

22

A77809

GASKET KIT

oil seal, crankshaft rear, Includes: Ref. 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

25

A77810

SERVICE KIT

KIT oil seal, crankshaft rear, includes wear sleeve, Includes: Ref. 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.
