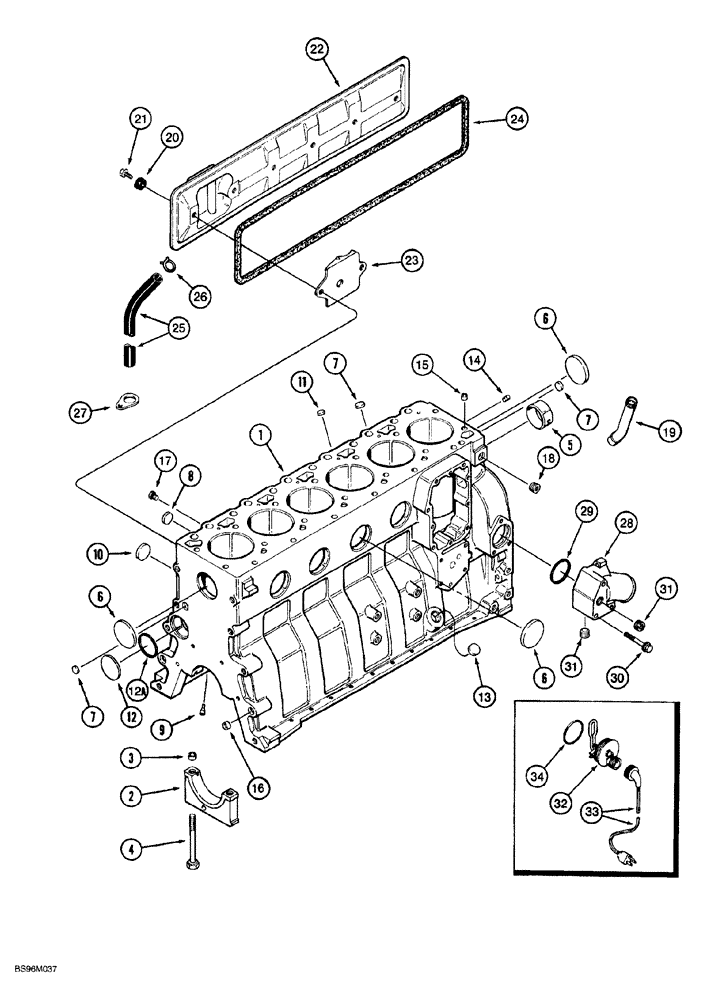

Запчасти Case 1150G (2-041A) - CYLINDER BLOCK, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER (01) - ENGINE

194664A1

ENGINE ASSEMBLY

ENGINE ASSY 6T-590 Emissions Certified, complete, for service order 246148A1 basic engine below

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover

1шт.

246148A2R

REMAN-BASIC ENGINE

With Four Bolt Injection Pump Mounting. Assy., basic, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, Replaces: 246148A1R; See Note

1шт.

246148A1C

CORE-ENGINE

Return Part Number, use this part number to return core for credit when using a remanufactured assembly

1шт.

246148A2

BASIC ENGINE

ASSY., Replaces: 246148A1

1шт.

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, turbocharger and belt tensioner.; See Note

1шт.

1

A77867

MOTOR

BLOCK ASSY., short, new, Includes: Ref. 2 - 18, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, no longer available, order (1) J933645 short block and (2) 250838A2 connectors, not shown

1шт.

1

AR77867

ENGINE

BLOCK ASSY., short, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, no longer available, order, (1) J933645 short block and (2) 250838A2 connectors, not shown

1шт.

1

AC77867

ENGINE ASSEMBLY

ENGINE ASSY RETURN NUMBER, use this part number to return short block core for credit when using a remanufactured assembly

1шт.

1

JR933645

REMAN-SHORT ENGINE

Remanufactured

1шт.

1

6-590-SHBC

CORE-SHORT ENGINE

Return Part Number, Block Assy., Engine Cyl. Short 6T/6TA

1шт.

2

J900967

BEARING CAP

CAP main

7шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm O.D.

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

main bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING camshaft, front, see Figure 2-037A, Ref. 6

1шт.

6

A77782

PLUG

expansion, 58 mm O.D.

6шт.

7

J900956

PLUG

expansion, 18 mm O.D.

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

4шт.

9

J930139

NOZZLE CAP

piston cooling

6шт.

10

J900958

PLUG

expansion, 32 mm O.D.

1шт.

11

J900955

PLUG

expansion, 10 mm O.D.

2шт.

12

172599

PLUG,Exp, 2 3/8"

expansion, Welch, 60 mm O.D.

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING sealing, 57 mm ID

1шт.

13

J920706

PLUG

expansion, 22 mm O.D., not used in this application

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long, locating

2шт.

15

J902343

DOWEL

RING, 16 mm O.D.

2шт.

16

J900068

BEARING WASHER

RING dowel, 18 mm O.D.

2шт.

17

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

18

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

1шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain

1шт.

20

J900267

SEAL

cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

22

J927913

COVER

tappet

1шт.

23

J907586

BAFFLE

tappet cover, use with J823494 sealant, see below

1шт.

24

J928832

GASKET

tappet cover

1шт.

25

J918614

TUBE,435.00 mm

635 mm (25 inch) long

1шт.

26

J904230

CLAMP,25.4mm

spring, hose

1шт.

27

J928989

CLIP

retaining

1шт.

28

J934877

HYD CONNECTOR

water inlet, Replaces: J903102

1шт.

29

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

30

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

3шт.

31

A77429

PLUG

hex socket, 1/2 inch PT

2шт.

196803A1

KIT

engine block heater, Includes: Ref. 32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

ELEMENT engine block heater

1шт.

33

196466A1

ELECTRIC CABLE

engine block heater

1шт.

34

J910517

O-RING

heater sealing

1шт.

J823494

SEALANT

Three Bond Silver RTV Adhesive/Sealer, 3 ounce tube, engine block heater

1шт.
