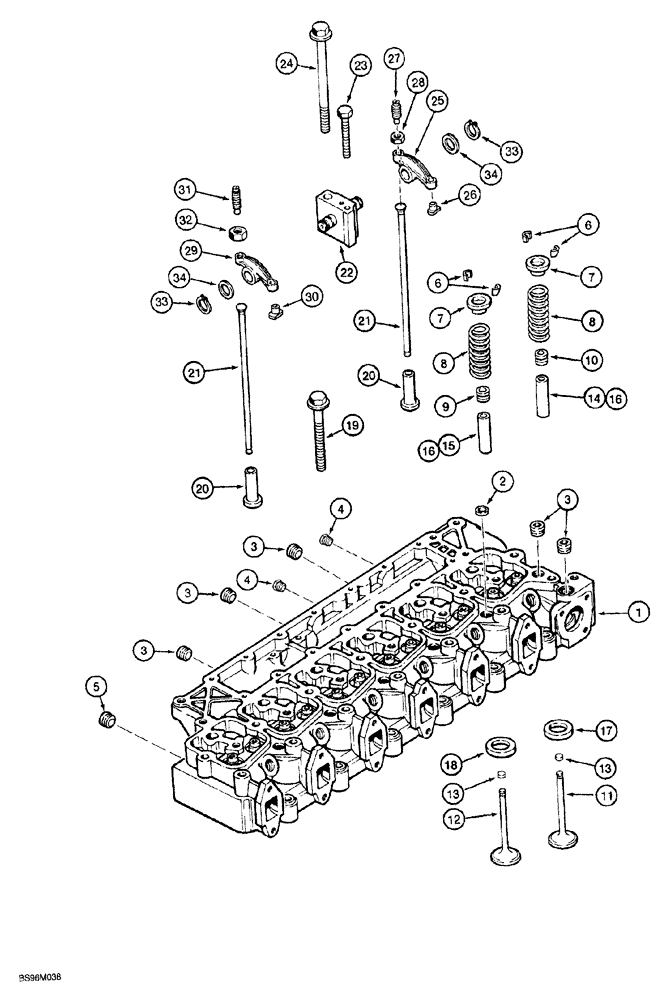

Запчасти Case 1150G (2-035A) - CYLINDER HEAD & VALVE MECHANISM, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 & JJG0218479 & AFTER (01) - ENGINE

JR934769

REMAN-CYLINDER HEAD

North America only, component parts shown on this figure do not apply to the remanufactured assembly, Replaces: JR927301

1шт.

JC927301

CORE-CYLINDER HEAD

RETURN NUMBER, use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

J927301

HEAD (CYLINDER)

ASSY., new, with valves

1шт.

1

J934746

HEAD (CYLINDER)

ASSY., without valves, Replaces: J930652

1шт.

2

A77783

PLUG

expansion, 21 mm O.D.

5шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

5

A77505

PLUG

hex socket, 3/4 inch PT

1шт.

6

J900250

SCREW

KEEPER valve

24шт.

7

J900299

RETAINER

valve spring

12шт.

8

J926700

VALVE SPRING

12шт.

9

J901097

SEAL

valve

12шт.

10

J901097

SEAL

valve

6шт.

11

J920867

VALVE

intake

6шт.

12

J920868

VALVE

exhaust

6шт.

13

J910412

WEAR PAD

valve stem tip, for use on intake and exhaust valves

1шт.

14

J904408

GUIDE

valve, intake, service repair only, 14 mm O.D.

6шт.

These parts are semi-finished valve guides.

1шт.

15

J904409

GUIDE

valve, exhaust, service repair only, 14 mm O.D.

6шт.

These parts are semi-finished valve guides.

1шт.

16

J906206

GUIDE

valve, intake and exhaust, service repair only, 11 mm O.D.

12шт.

These parts are semi-finished valve guides.

1шт.

17

J906854

SEAT, VALVE

insert, intake, service repair only

6шт.

18

J904105

SEAT, VALVE

insert, exhaust, service repair only

6шт.

19

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long

6шт.

19

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long

14шт.

20

J931623

TAPPET

valve, push rod

12шт.

21

J923262

PUSH ROD

rocker arm

12шт.

22

J922488

SUPPORT

AND SHAFT ASSY., rocker arm

6шт.

23

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

24

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long

6шт.

25

J910811

ROCKER

ARM ASSY., intake

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

28

A77902

NUT

hex, 3/8 inch NF, Replaces: 425-116

1шт.

29

J910810

ROCKER

ARM ASSY., exhaust

6шт.

30

NSS

NOT SOLD SEPARAT

INSERT arm

1шт.

31

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

32

A77902

NUT

hex, 3/8 inch NF, Replaces: 425-116

1шт.

33

J900242

SNAP RING

retaining, rocker arm

12шт.

34

J900245

WASHER

thrust, rocker arm

12шт.
