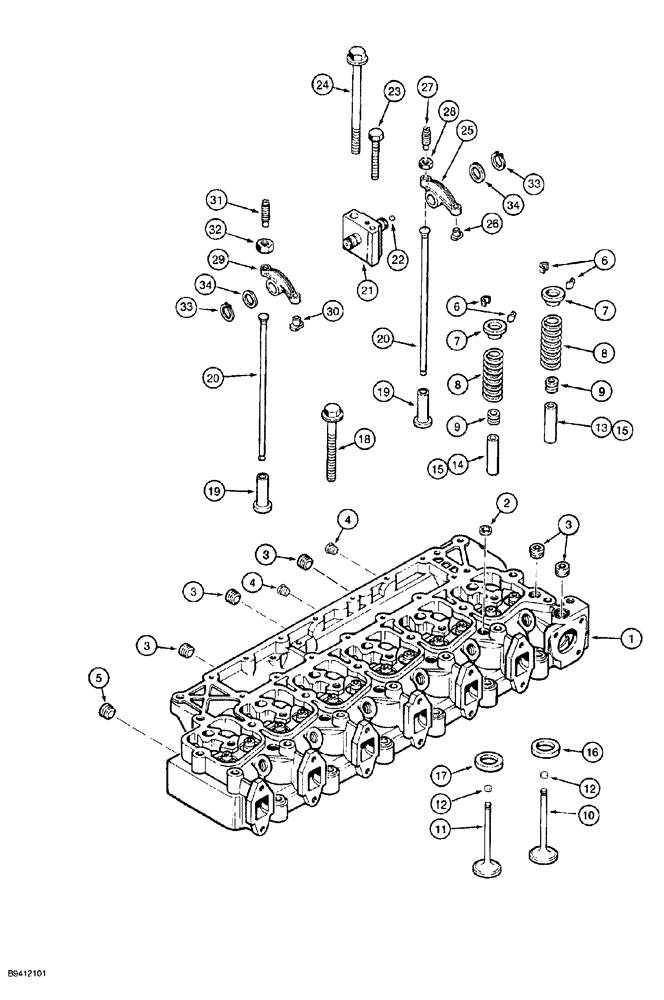

Запчасти Case 1150G (2-034) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 ENGINE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (01) - ENGINE

JR930912

REMAN-CYLINDER HEAD

North America only, component parts shown on this figure do not apply to the remanufactured assembly, JR929735

1шт.

JC929735

CORE-CYLINDER HEAD

RETURN NUMBER, use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

J929735

HEAD (CYLINDER)

ASSY., new, with valves, Includes: Ref. 1- 11

1шт.

1

J917287

HEAD (CYLINDER)

ASSY., 7 mm injector, without valves, Includes: Ref. 2

1шт.

2

A77783

PLUG

expansion, 21 mm O.D.

5шт.

3

A77429

PLUG

hex socket, 1/2 inch PT

5шт.

4

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

5

A77505

PLUG

hex socket, 3/4 inch PT

1шт.

6

CASJ900250

RETAINER

KEEPER valve

24шт.

7

J900299

RETAINER

valve spring

12шт.

8

J926700

VALVE SPRING

valve

12шт.

9

J901097

SEAL

valve

12шт.

10

J920867

VALVE

intake

6шт.

11

J920868

VALVE

exhaust

6шт.

12

J280911

WEAR PAD

valve stem tip, for use on intake and exhaust valves

1шт.

13

J904408

GUIDE

valve, intake, service repair only, 14 mm O.D.

6шт.

These parts are semi-finished valve guides.

1шт.

14

J904409

GUIDE

valve, exhaust, service repair only, 14 mm O.D.

6шт.

These parts are semi-finished valve guides.

1шт.

15

J906206

GUIDE

valve, intake and exhaust, service repair only, 11 mm O.D.

12шт.

These parts are semi-finished valve guides.

1шт.

16

J906854

SEAT, VALVE

insert, intake, service repair only

6шт.

17

J904105

SEAT, VALVE

insert, exhaust, service repair only

6шт.

18

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long

6шт.

18

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long

6шт.

19

J931623

TAPPET

valve, push rod, Replaces: J925031

12шт.

20

J923262

PUSH ROD

rocker arm

12шт.

21

J910814

SUPPORT

AND SHAFT ASSY., rocker arm, Includes: Ref. 22

6шт.

22

J907555

PLUG

rocker arm shaft

1шт.

23

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

24

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long

6шт.

25

J910811

ROCKER

ARM ASSY., intake, Includes: Ref. 26 - 28

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

28

A77902

NUT

hex, 3/8 inch NF, Replaces: 425-116

1шт.

29

J910810

ROCKER

ARM ASSY., exhaust, Includes: Ref. 30 - 32

6шт.

30

NSS

NOT SOLD SEPARAT

INSERT arm

1шт.

31

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

32

A77902

NUT

hex, 3/8 inch NF, Replaces: 425-116

1шт.

33

J900242

SNAP RING

retaining, rocker arm

12шт.

34

J900245

WASHER

thrust, rocker arm

12шт.
