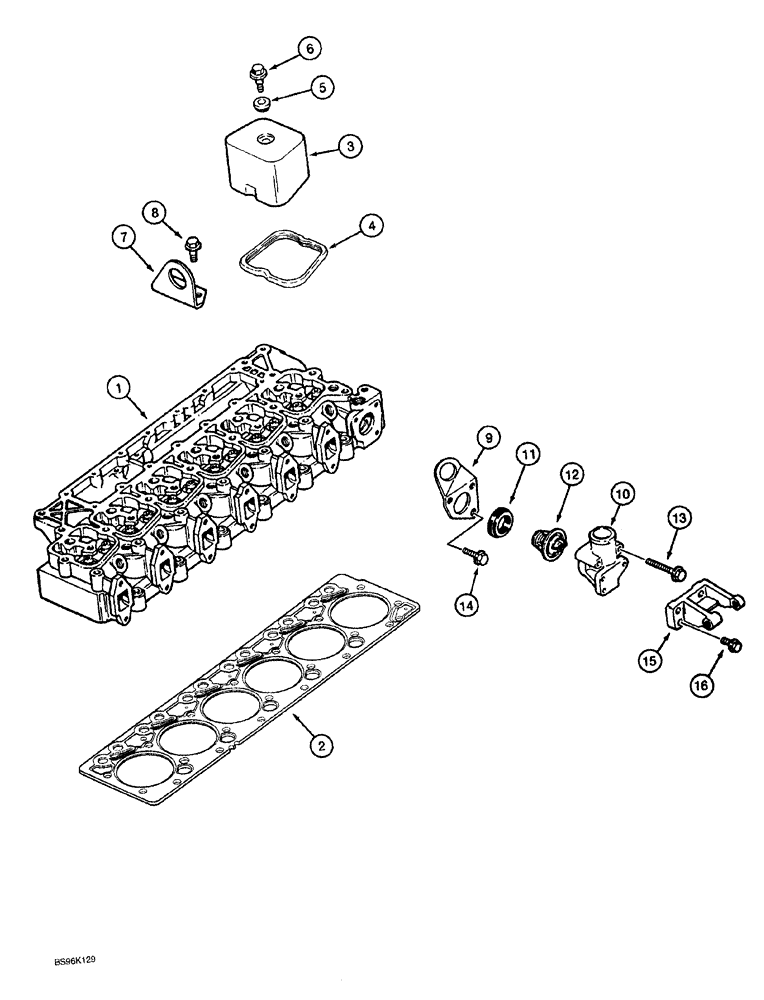

Запчасти Case 1150G (2-033A) - CYLINDER HEAD COVER, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER (01) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, see Figure 2-035A for correct cylinder head and parts list

1шт.

2

J282805

GASKET

head, standard

1шт.

2

J283337

GASKET,2.24mm Thk

head, 1 notch, 0.25 mm thicker, Replaces: J283000

1шт.

2

J283002

GASKET

head, 2 notches, 0.50 mm thicker

1шт.

3

J928404

COVER

rocker arm

6шт.

4

J930906

GASKET

SEAL rocker arm cover

6шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, Replaces: J928406

6шт.

6

J907049

BOLT,Hex

hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

7

J908118

BRACKET

lifting, rear

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

9

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

10

J914409

HOUSING

thermostat

1шт.

A77736

THERMOSTAT

KIT coolant thermostat, housing, Includes: Ref. 11, 12

1шт.

11

J923331

GASKET

thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT coolant, housing

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

15

J923387

SUPPORT

alternator mounting, thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Thermostat and housing

3шт.
