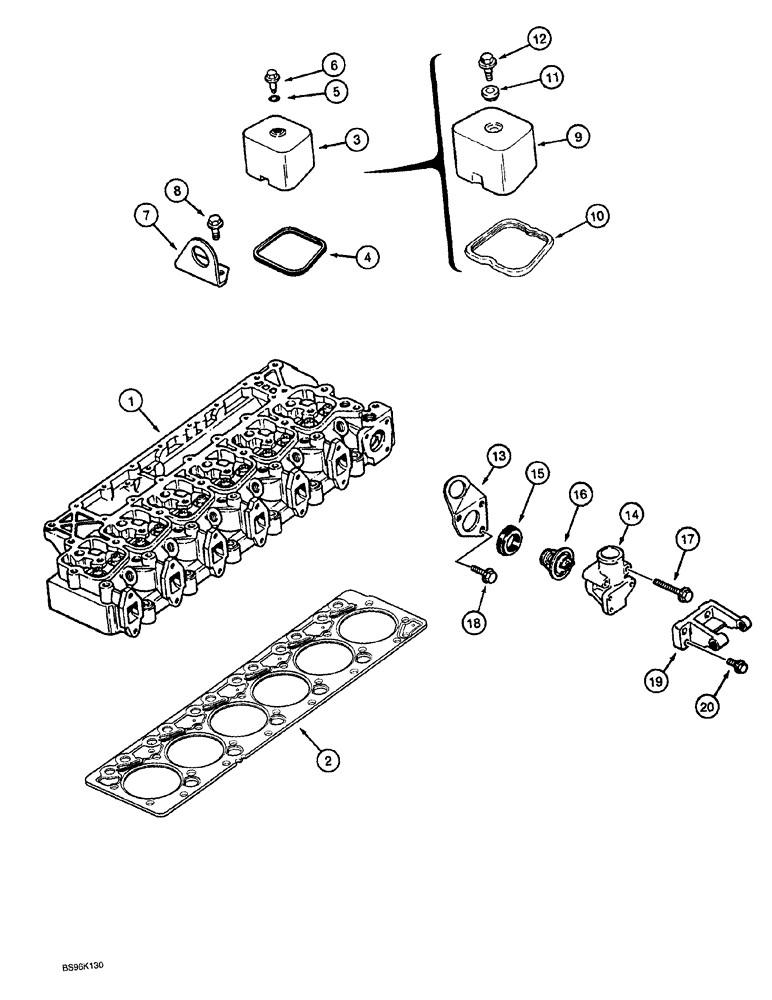

Запчасти Case 1150G (2-032) - CYLINDER HEAD COVER, 6T-590 ENGINE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (01) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, see Figure 2-034 for correct cylinder head and parts list

1шт.

2

J282805

GASKET

head, standard, Replaces: J921394

1шт.

2

J283337

GASKET,2.24mm Thk

head, 1 notch, 0.25 mm thicker, Replaces: J921396, J283000

1шт.

2

J283002

GASKET

head, 2 notches, 0.50 mm thicker, Replaces: J921398

1шт.

3

J902604

COVER

rocker arm, if used

6шт.

4

J902666

GASKET

SEAL rocker arm cover, if used

6шт.

5

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, if used

6шт.

6

J907049

BOLT,Hex

hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

7

J908118

BRACKET

lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

9

J928404

COVER

rocker arm, if used

6шт.

10

J930906

GASKET

SEAL rocker arm cover, if used

6шт.

11

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, Replaces: J928406, if used

6шт.

12

J907049

BOLT,Hex

hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

13

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

14

J914409

HOUSING

thermostat

1шт.

A77736

THERMOSTAT

KIT coolant thermostat, housing, Includes: Ref. 15, 16

1шт.

15

J923331

GASKET

thermostat housing

1шт.

16

NSS

NOT SOLD SEPARAT

THERMOSTAT coolant, housing

1шт.

17

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

BOLT heavy hex flange, 8 - 1.25 x 70 mm, thermostat and housing

2шт.

18

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

19

J923387

SUPPORT

alternator mounting, thermostat and housing

1шт.

20

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Thermostat and housing

3шт.
