(2-027A) - TURBOCHARGER, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER

Запчасти Case 1150G (2-027A) - TURBOCHARGER, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER (01) - ENGINE

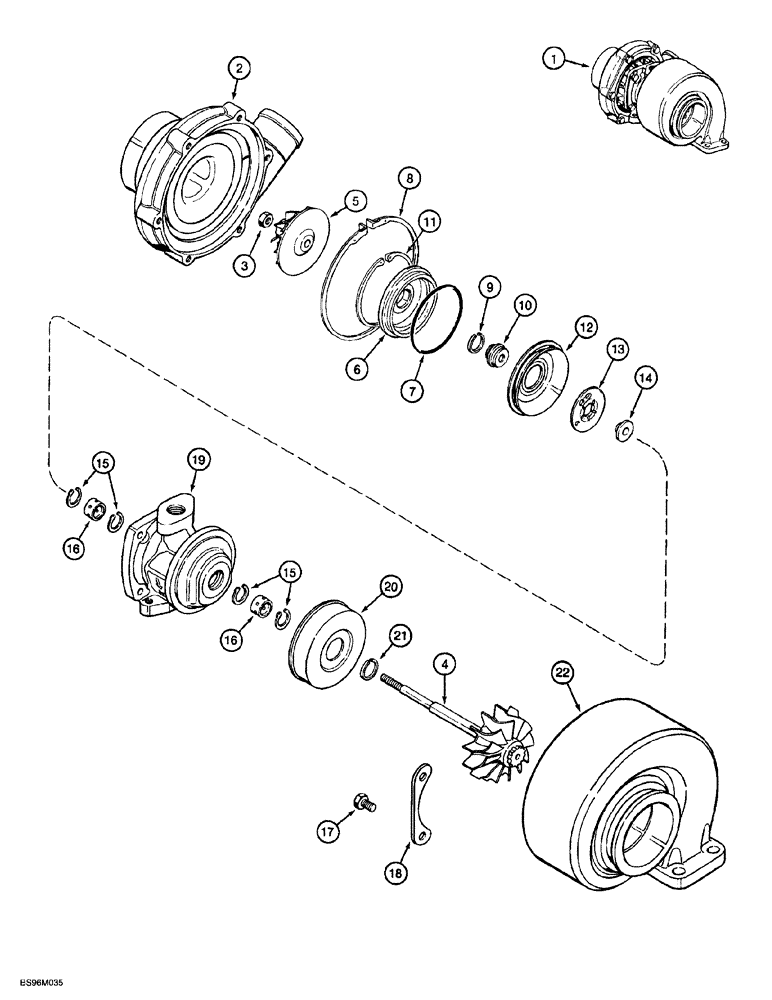

Схема запчастей Case 1150G - (2-027A) - TURBOCHARGER, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER (01) - ENGINE
4
1
7
12
5
19
18
3
21
16
15
22
16
11
13
9
10
8
2
6
17
14
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J802770

TURBOCHARGER

KIT, with gaskets, includes new turbocharger assembly and one each of J709861 turbocharger mounting gasket and J519807 turbo oil drain tube gasket, not shown, Includes: J575217

1шт.

1

JR802770

REMAN-TURBOCHARGER

1150G SN JJG0218023 & JJG0218479 & Aft.

1шт.

1

JC537132

CORE-TURBOCHARGER

Return Number

1шт.

J575217

HOUSING

CENTER ASSY., turbocharger, Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex lock

1шт.

Part of overhaul kit J575169

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR ASSY., turbocharger

1шт.

Part of overhaul kit J575169

1шт.

5

NSS

NOT SOLD SEPARAT

IMPELLER turbo compressor

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE oil seal

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of overhaul kit J575169

1шт.

8

J533163

SNAP RING

retaining

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL split ring, compressor

1шт.

Part of overhaul kit J575169

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

11

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

Part of overhaul kit J575169

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

Part of overhaul kit J575169

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of overhaul kit J575169

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING snap, retaining

4шт.

Part of overhaul kit J575169

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING impeller shaft

2шт.

Part of overhaul kit J575169

1шт.

17

J959917

SCREW set, hex head, plate retaining

4шт.

Part of overhaul kit J575169

1шт.

18

J501188

PLATE

clamping, turbine housing

2шт.

19

NSS

NOT SOLD SEPARAT

HOUSING turbine bearing

1шт.

20

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL split ring, turbine

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING turbine

1шт.

J575169

REPAIR KIT

KIT overhaul, turbocharger, Includes: Ref. 3, 7, 9, 11 - 13, 15 - 17, 21

1шт.
