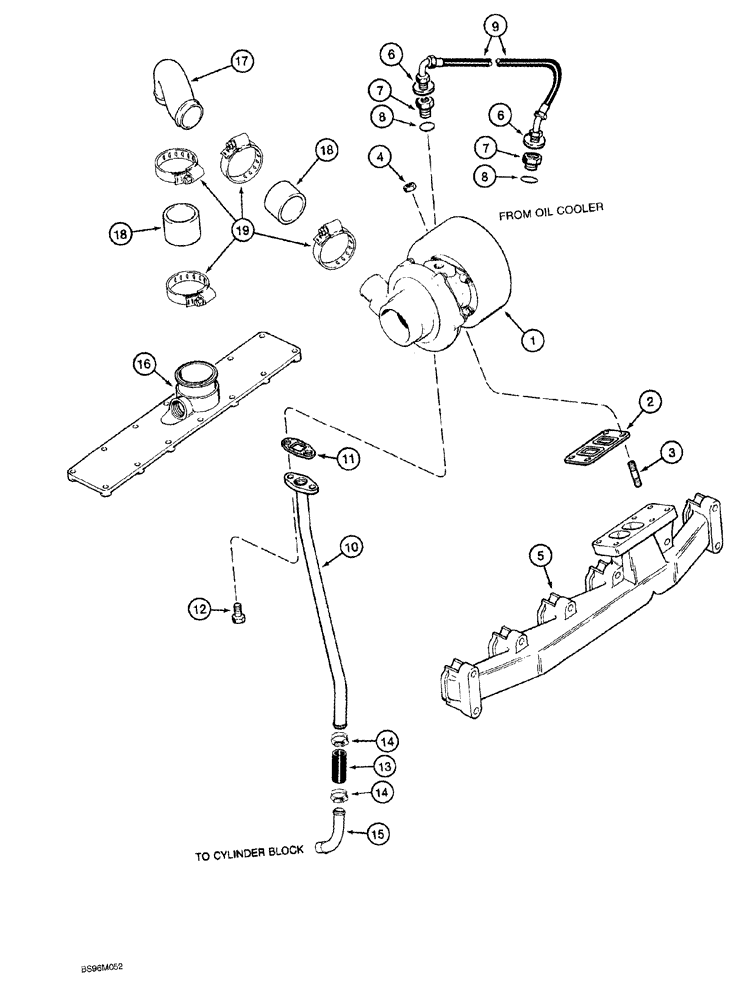

Запчасти Case 1150G (2-025A) - TURBOCHARGER SYSTEM, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER (01) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSY., engine, new, see Figure 2-027A for correct assembly and component parts

1шт.

2

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

3

J818823

STUD

turbocharger mounting

4шт.

4

J818824

FLANGE NUT

hex flange, special, 10 mm - 1.5

4шт.

5

J901683

MANIFOLD

exhaust, see Figure 2-023A, Ref. 1

1шт.

6

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

7

J919687

HYD CONNECTOR

ADAPTER female hex, special, Includes: Ref. 8

2шт.

8

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

9

J918562

HOSE

538 mm (21-3/16 inch) long, turbocharger

1шт.

10

J918579

TUBE

turbocharger oil drain, upper

1шт.

11

J931350

GASKET

turbo oil drain tube

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

13

J931970

HOSE,22.22 mm ID x 76.20 mm

Replaces J903745

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj., Turbocharger drain hose

2шт.

15

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain, lower

1шт.

16

J904862

COVER

intake manifold, see Figure 2-023A, Ref. 4

1шт.

17

J931453

TUBE,63.5 mm OD x 254.77 mm L

air intake, crossover

1шт.

18

J931805

INTAKE AIR HOSE

58 mm (2-9/32 inch) long

2шт.

19

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

4шт.
