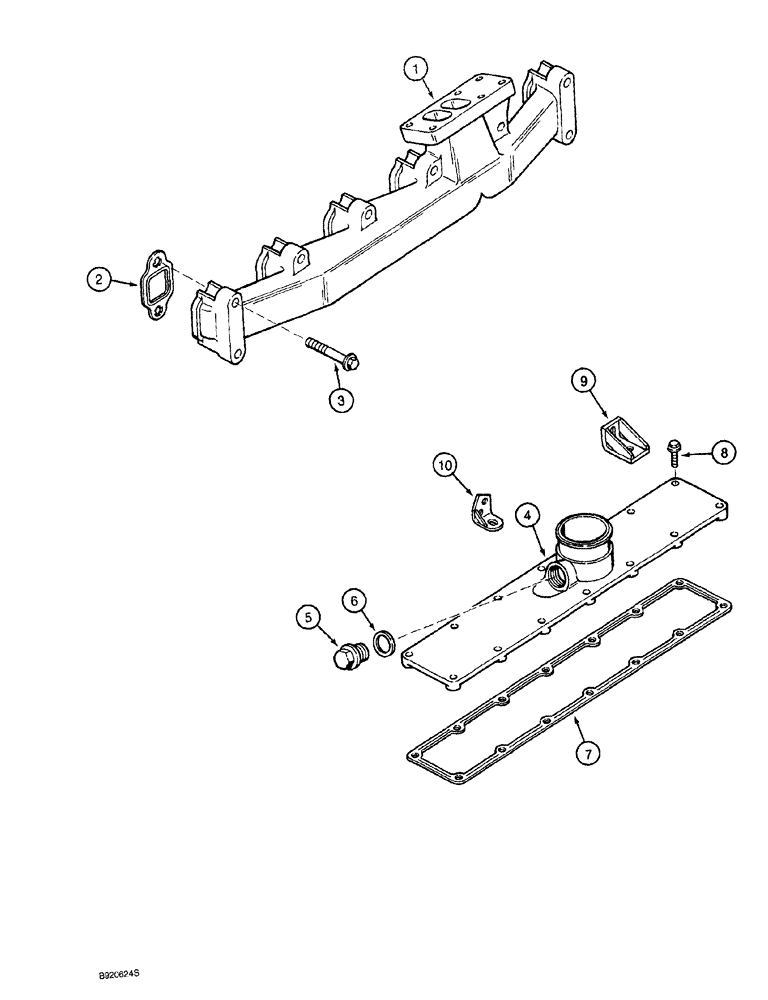

Запчасти Case 1150G (2-022) - MANIFOLDS, 6T-590 ENGINE, PRIOR TO JJG02180223 AND JJG0218024 - JJG0218478 (01) - ENGINE

1

J901683

MANIFOLD

exhaust

1шт.

2

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

Replaces 854-10065

12шт.

A77418

KIT

manifold, intake, no longer available, order Ref. 4 - 6

1шт.

4

J904862

COVER

intake manifold

1шт.

5

J907185

PLUG

intake manifold

1шт.

6

J906773

WASHER

plug sealing, intake manifold

1шт.

7

J914029

GASKET

mounting, intake cover

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Intake Manifold Hex Flg Hd, M8 x 1.25 x 25

14шт.

9

J917777

BRACE

fuel tube, see Figure 3-008, Ref. 19, intake manifold

2шт.

10

J917778

BRACE

fuel tube, see Figure 3-008, Ref. 22, intake manifold

1шт.
