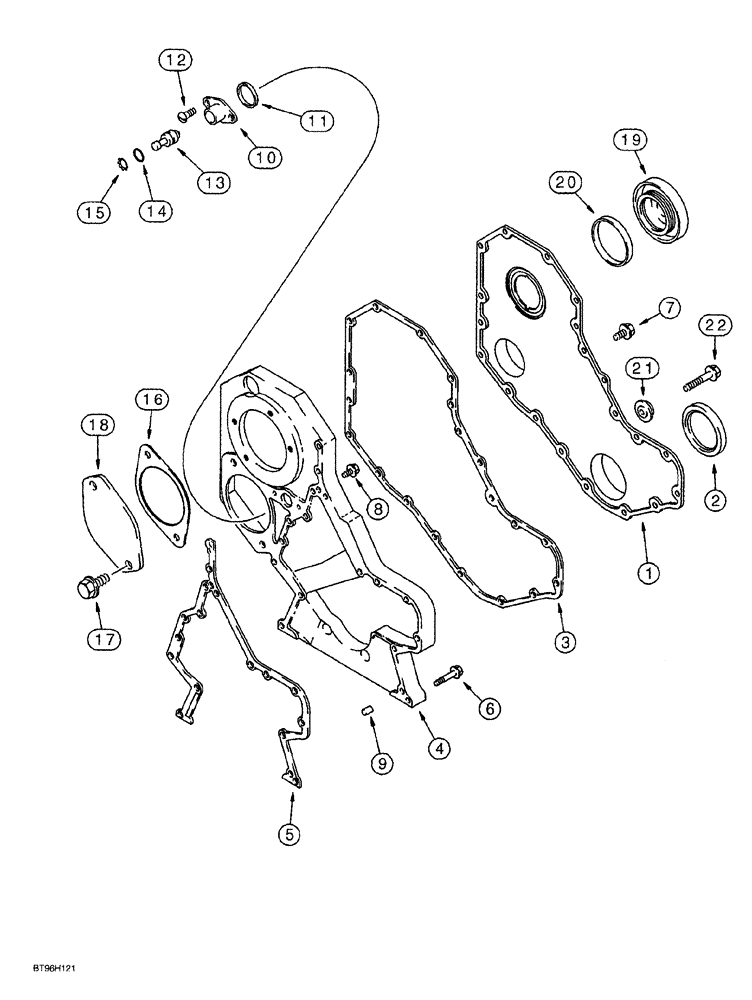

Запчасти Case 1150G (2-021A) - FRONT GEAR COVER, 6T-590 EMISSIONS CERTIFIED ENGINE, JJG0218023 AND JJG0218479 AND AFTER (01) - ENGINE

1

J918675

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft, front, see Figure 2-043A for correct kit

1шт.

3

J918673

GASKET,1.02mm Thk

front cover

1шт.

4

J932120

HOUSING

timing gear

1шт.

5

J931351

GASKET

gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

(8) for front gear cover to timing gear housing to engine block and (2) for timing gear housing to engine block

10шт.

7

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, front gear cover to timing gear housing

8шт.

8

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, timing gear housing to engine block

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

10

J919683

HOUSING

timing pin

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

14

J913994

O-RING

sealing

1шт.

15

J904849

SNAP RING,0.875", Int, #87

Timing pin

1шт.

16

J929751

GASKET

access cover plate

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

18

J914868

COVER

PLATE access, flat

1шт.

19

J903463

PLUG,M63 x 5

front access

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, fuel pump drive gear

1шт.

21

J912772

RETAINER

bolt

1шт.

22

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

Heavy

1шт.
