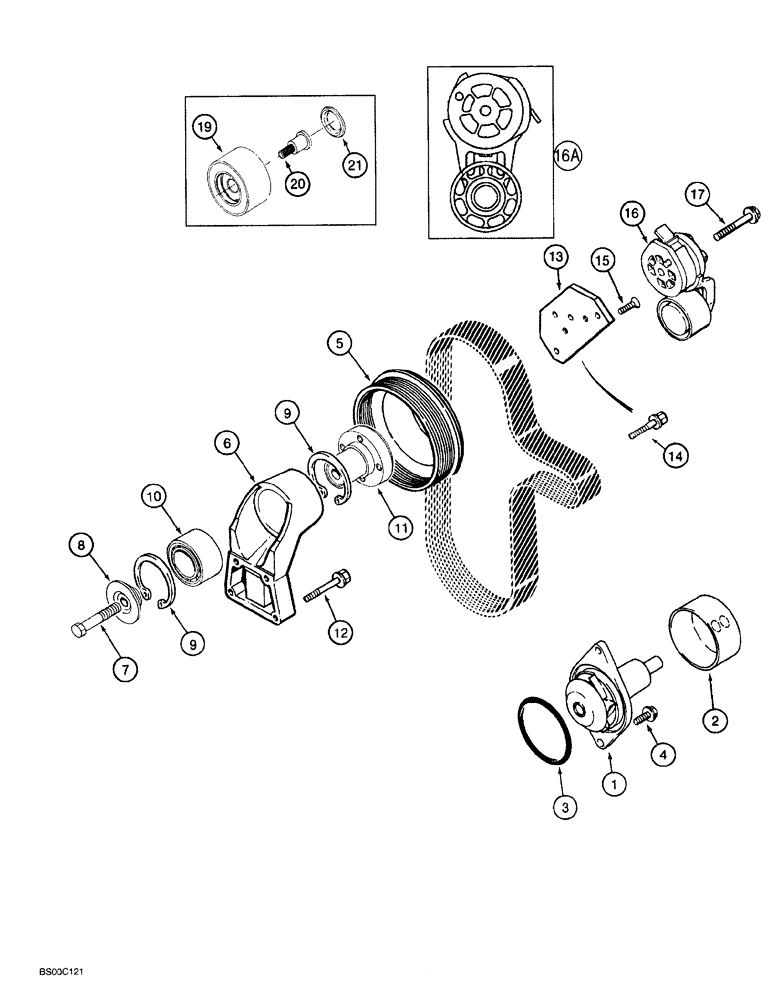

Запчасти Case 1150G (2-018) - WATER PUMP SYSTEM, 6T-590 ENGINE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (01) - ENGINE

A77703

PUMP, WATER

KIT, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

1150G Prior To JJG0218023, & JJG0218024 to JJG0218478

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

fan, 11 to 1 ratio

1шт.

6

J911922

SUPPORT ASSY.

BRACKET fan pulley, Includes: Ref. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

BOLT hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

8

J923044

RETAINER

fan hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

fan

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

Fan bracket to cylinder block

4шт.

13

J925207

SUPPORT

BRACKET belt tensioner

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Special

1шт.

16

J918944

BELT TENSIONER

belt, no longer available, order J936202

1шт.

16a

J936202

BELT TENSIONER

belt, Replaces: J918944

1шт.

17

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

Belt tensioner mounting

1шт.

18

A77817

KIT

KIT belt tensioner pulley, Includes: Ref. 19 - 21, used to replace pulley of J918944 belt tensioner, Ref. 16

1шт.

19

NSS

NOT SOLD SEPARAT

PULLEY belt tensioner

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL bolt

1шт.
