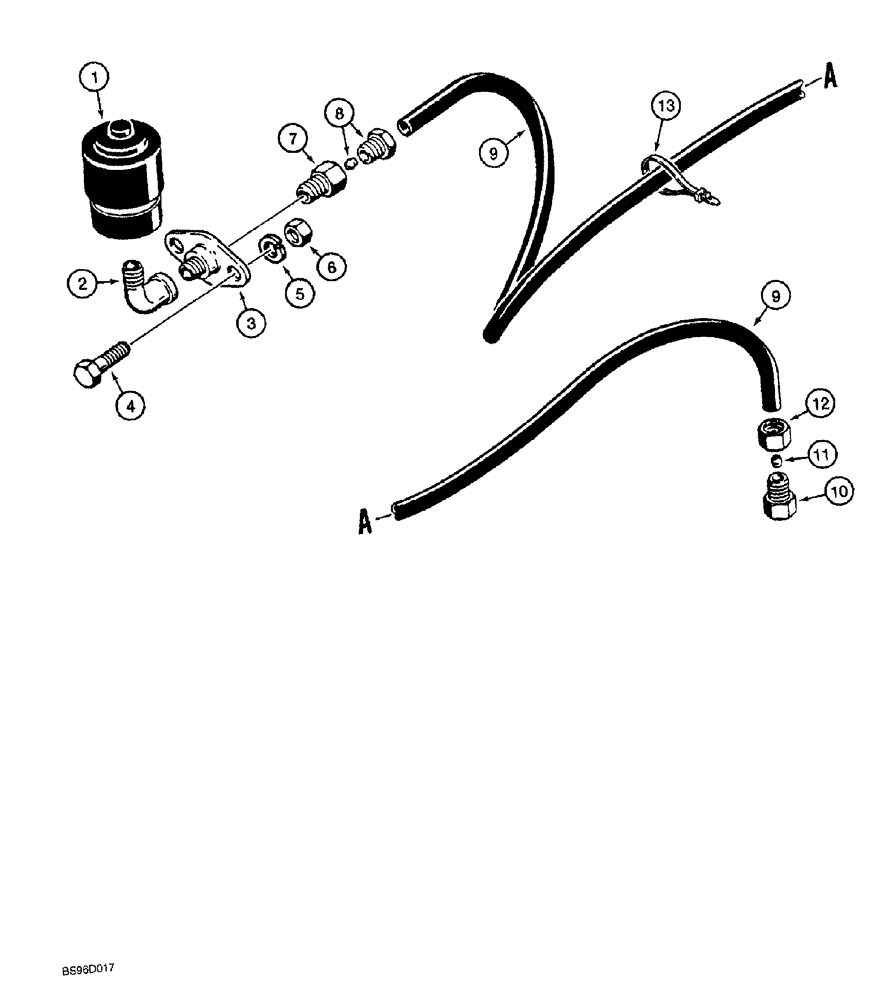

Запчасти Case 1150G (2-016) - AIR RESTRICTION INDICATOR (01) - ENGINE

1

A59569

INDICATOR

restriction, air cleaner

1шт.

2

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, brass

1шт.

3

H357707

FLANGE

BRACKET restriction indicator mounting

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

492-11025

LOCK WASHER,1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

2шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER compression, 1/8 tube O.D. x 1/8 inch PT, Includes: Ref. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

BODY adapter

1шт.

8

222-500

TUBE NUT,5/16" - 24 NPT

hex, 1/8 tube O.D. x 5/16-24 inch

1шт.

9

R45449

PLASTIC-RUBBER TUBE,1/8" OD x 26.5" L

nylon, 673 mm (26-1/2 inch) long, cut from A138483 bulk tube, see below

1шт.

D35091

PIPE FITTING

ADAPTER ASSY., straight, compression, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY compression fitting

1шт.

11

D37176

SLEEVE

compression

1шт.

12

D37362

TUBE NUT

compression

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

A138483

TUBE

nylon, 2515 mm (99 inch) long

1шт.
