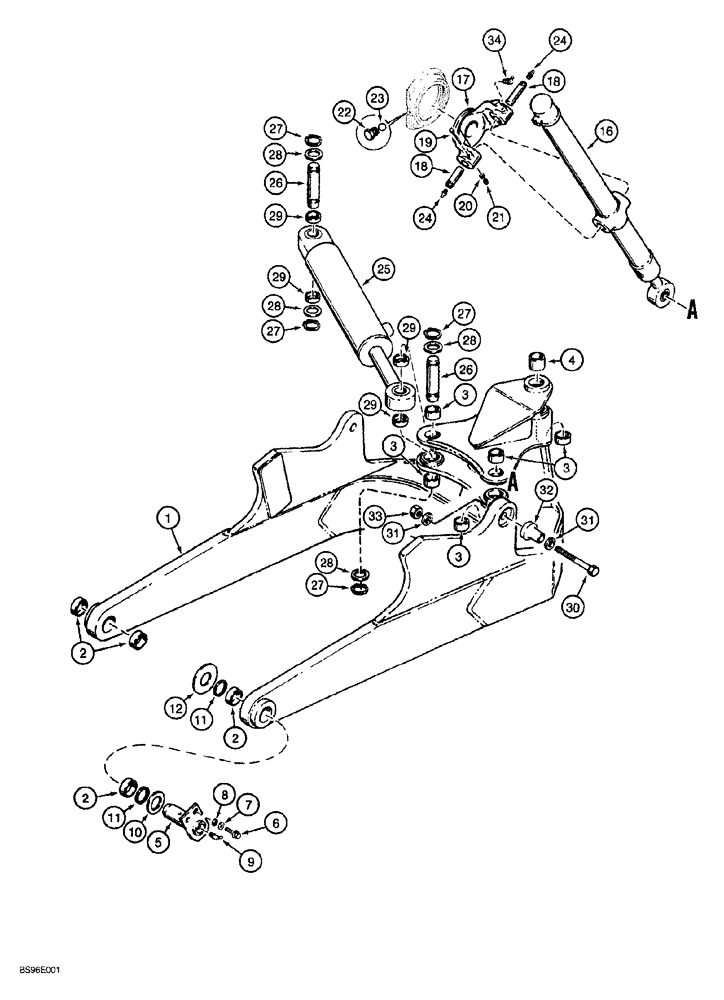

Запчасти Case 1150G (9-002) - C-FRAME, LIFT AND ANGLE CYLINDER MOUNTING (07) - HYDRAULIC SYSTEM

1

183779A2

CHASSIS

C-FRAME, blade, Replaces: 183779A1, Includes: Ref. 2 - 4

1шт.

2

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

2-1/2 x 3 x 1 inch, C-frame mounting at main frame

4шт.

3

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

2 x 2-1/2 x 1-1/4 inch

5шт.

4

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

2 x 2-1/2 x 2 inch

1шт.

5

R53254

PIN,63.5mm OD x 195mm L

C-frame mounting

2шт.

6

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT hex flange, 5/8 NC x 2 inch, grade 8

4шт.

7

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

flat, special

4шт.

8

R53353

WASHER,16.13mm ID x 22.23mm OD x 15.3mm L

BUSHING bolt

4шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

10

95-81156

WASHER,2.56" ID x 4" OD x 0.11" Thk

flat, 2-9/16 x 4 x 1/8 inch

1шт.

11

L113522

SEAL

U-cup, trunnion pin, use with red Loctite No. 271, shown below

4шт.

12

95-31262

WASHER,2.62" ID x 5" OD x 0.24" Thk

flat, 2-5/8 x 5 x 1/4 inch

2шт.

16

G109819

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 817.63mm Stroke

83 (3-1/4) ID x 818 mm (32-3/16 inch) stroke, lift, see Figure 8-026

2шт.

17

R54810

TRUNNION

lift cylinder

2шт.

18

D36176

PIN,38.1mm OD x 63.5mm L

trunnion

4шт.

19

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex, 3/8 NC x 4 inch

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.

22

D28481

PLUG

special

2шт.

23

211-1024

BALL,3/4" Dia

chrome alloy steel, 3/4 inch, grade 24

50шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

25

G110702

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 381mm Stroke

127 (5) ID x 381 mm (15 inch) stroke, angle, see Figure 8-030

2шт.

26

R54768

PIN,50.77mm OD x 195.8mm L

6-1/4 inch retaining length, angle cylinders

4шт.

27

103-16200

SNAP RING,#200, Ext

Pin

8шт.

28

495-81282

WASHER,2 1/16" x 3" x .109"

1шт.

29

R53383

WASHER,52.32mm ID x 57.15mm OD x 17mm L

SPACER pin, angle cylinder mounting

8шт.

30

326-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

Replaces 326-1276

2шт.

31

R58570

SPACER

WASHER special

4шт.

32

R58489

PIN,88.9mm OD x 60.6mm L

PIN, Mount - Lift cylinder rod, Serial Range: eye-C-frame

2шт.

33

232-41112

NUT,3/4"-10, GC

2шт.

34

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

B17500

LOCTITE

No. 271 , red, 6 ml tube

1шт.
