(8-072) - OUTLET SECTION, JJG0218023 AND JJG0218479 AND AFTER

Запчасти Case 1150G (8-072) - OUTLET SECTION, JJG0218023 AND JJG0218479 AND AFTER (07) - HYDRAULIC SYSTEM

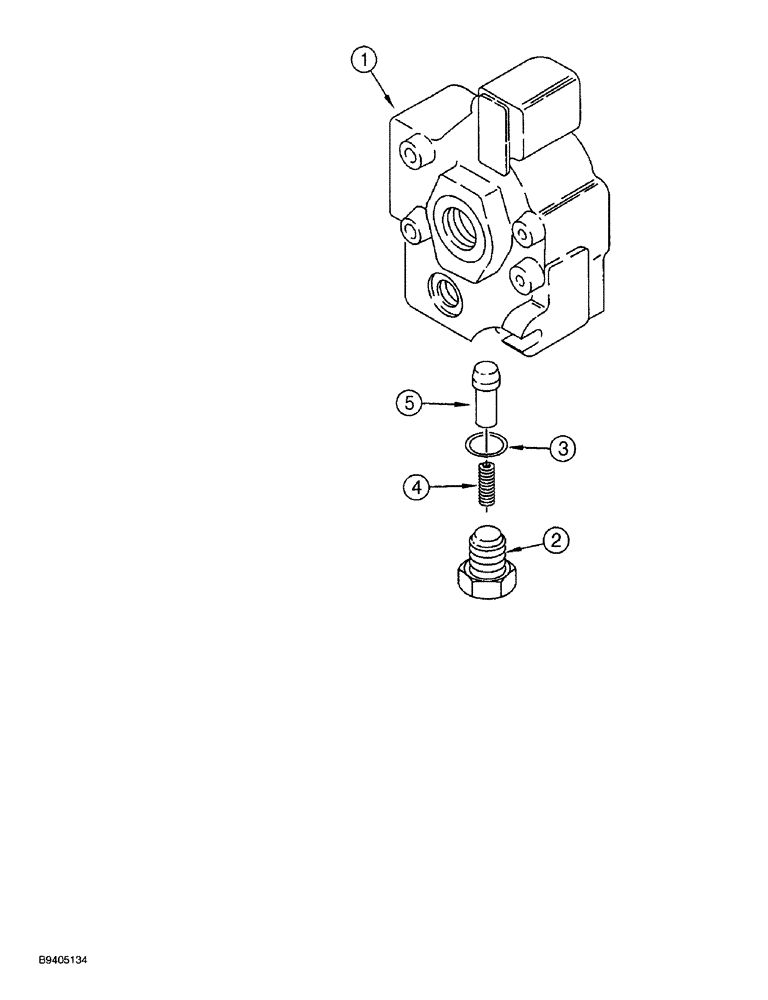

Схема запчастей Case 1150G - (8-072) - OUTLET SECTION, JJG0218023 AND JJG0218479 AND AFTER (07) - HYDRAULIC SYSTEM
5
3
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

132004A2

HYD VALVE SECTION

ASSY., outlet, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING outlet section

1шт.

2

G109644

PLUG,Hex, 3/4" - 16

load check

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

G109646

SPRING,Compression, 6.35mm OD x 38.35mm L

load check

1шт.

5

G109645

VALVE POPPET

load check

1шт.
