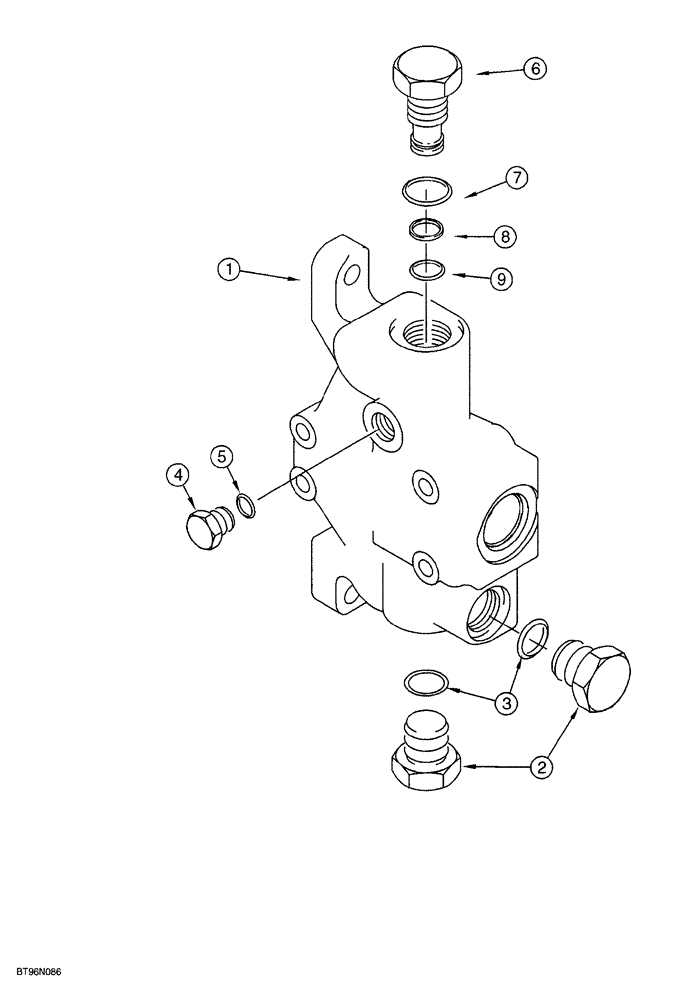

Запчасти Case 1150G (8-064) - INLET SECTION, JJG0218023 AND JJG0218479 AND AFTER (07) - HYDRAULIC SYSTEM

234153A1

VALVE

SECTION ASSY., inlet, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, inlet section

1шт.

2

86625138

PLUG,7/18" - 14

Includes Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 5

1шт.

251714A1

PLUG

ASSY., pilot relief, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

BODY plug

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
