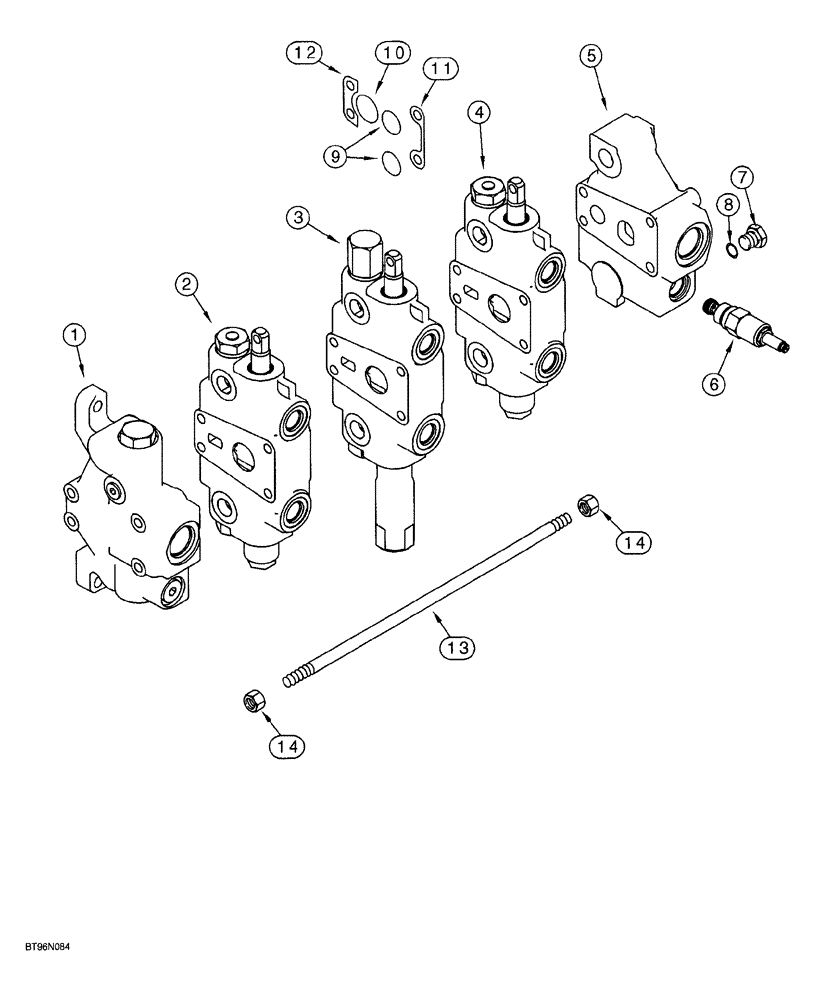

Запчасти Case 1150G (8-060) - THREE-SPOOL CONTROL VALVE, JJG0218023 AND JJG0218479 AND AFTER (07) - HYDRAULIC SYSTEM

229079A2

VALVE, CONTROL

three-spool, order Ref. 1 - 14, Replaces: 229079A1

1шт.

1

234153A1

VALVE

SECTION ASSY., inlet, see Figure 8-064

1шт.

2

234152A2

VALVE

SECTION ASSY., tilt, see Figure 8-066, Replaces: 234152A1

1шт.

3

234151A2

VALVE

SECTION ASSY., lift, with manual detent, see Figure 8-068, Replaces: 234151A1

1шт.

4

234152A2

VALVE

SECTION ASSY., angle, see Figure 8-066, Replaces: 234152A1

1шт.

5

132004A2

HYD VALVE SECTION

ASSY., outlet, see Figure 8-072

1шт.

6

1343688C1

VALVE

ASSY., main relief, pilot-operated, component parts not serviced separately, order G110098 for service of external seals

1шт.

7

278548

PLUG,Hex, 7/16"-20 ORB

Outlet section diagnostic port, Incl Ref 8

1шт.

9

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small

12шт.

Part of seal kit 1346108C2

1шт.

10

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports

4шт.

Part of seal kit 1346108C2

1шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve

4шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve

4шт.

13

G108805

STUD

tie, 3/8 NC x 11-3/4 inch

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

1346108C2

SEAL KIT

seal, Includes: Ref. 9, 10, plus additional O-rings not required for this application

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
