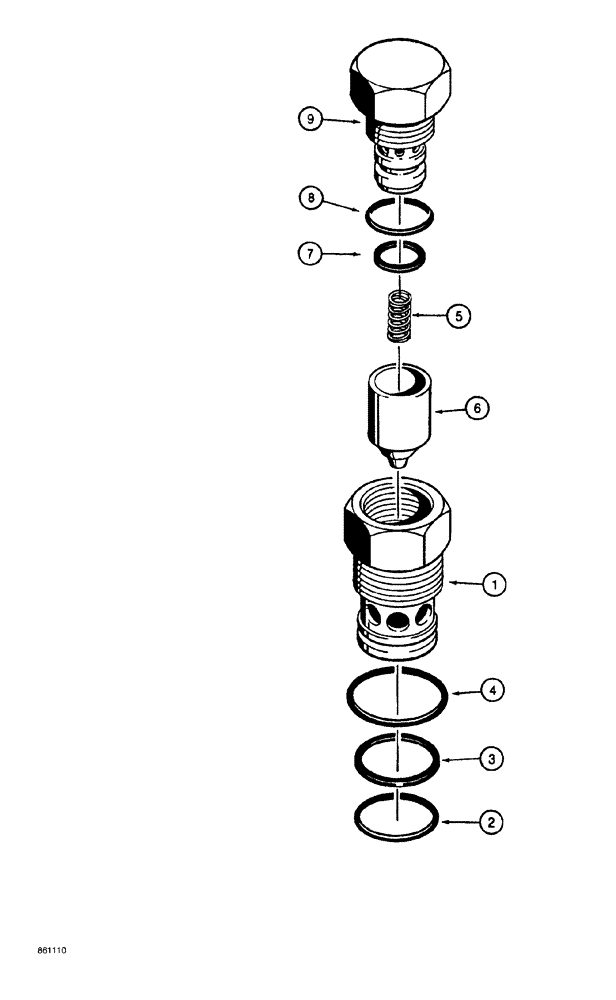

Запчасти Case 1150G (8-058) - ANTICAVITATION VALVE, PRIOR TO JJG0218023 AND JJG018024 - JJG0218478 (07) - HYDRAULIC SYSTEM

N14024

VALVE

ASSY., anticavitation, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

3

R31052

O-RING,15/16" ID x 1-1/16" OD x 3/64"

backup

1шт.

4

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

Body

1шт.

5

N9267

SPRING

plunger

1шт.

6

N9263

PISTON

POPPET anticavitation

1шт.

7

N13271

O-RING

SEAL special, with O-ring

1шт.

8

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

9

N14025

PLUG

anticavitation

1шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Body

1шт.
