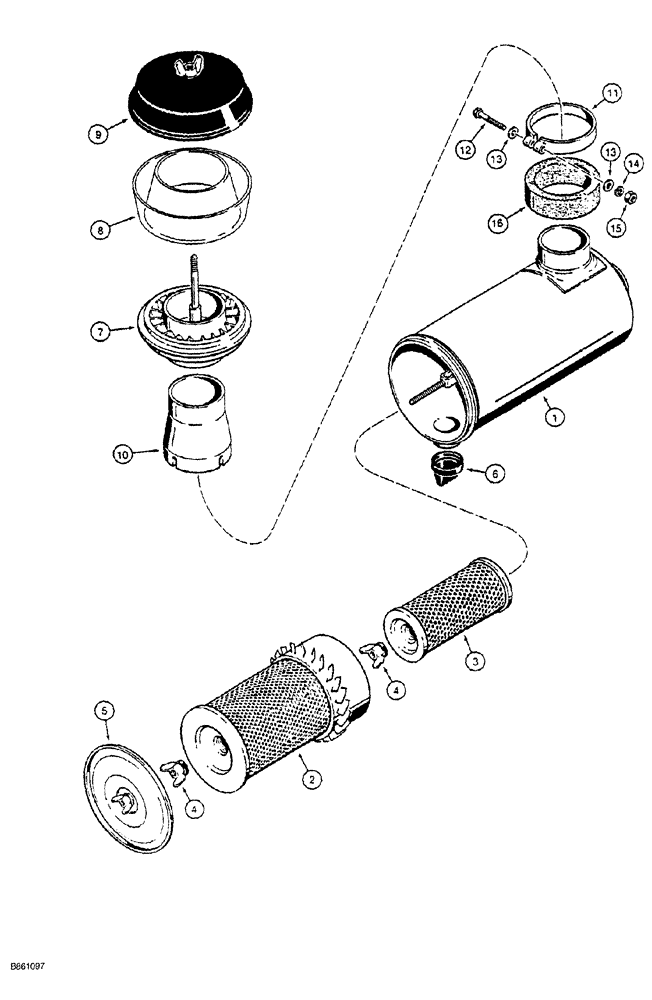

Запчасти Case 1150G (2-014) - AIR CLEANER ASSEMBLY AND AIR INTAKE PARTS, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (01) - ENGINE

A170613

AIR CLEANER

ASSY., Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.

2

R29295

FILTER, ELEMENT

ELEMENT, FILTER primary, outer

1шт.

3

R36361

FILTER, ELEMENT

ELEMENT, FILTER secondary, inner

1шт.

4

L35499

NUT

wing, with washer

2шт.

5

A14522

SPARE PART COVER air cleaner, with locking tab for wing nut

1шт.

6

S113982

CAP

VALVE dust, rubber

1шт.

258541A1

PRECLEANER

ASSY., air cleaner, Replaces: R48592, Includes: Ref. 7 - 9A

1шт.

7

NSS

NOT SOLD SEPARAT

BODY precleaner

1шт.

8

L30671

HOUSING

BOWL precleaner

1шт.

9

L30669

COVER

precleaner

1шт.

9a

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

Adj., 258541A1 Precleaner, Not shown

1шт.

10

R48590

ORIFICE RING

STACK air cleaner inlet, Serial Range: attaches-hood

1шт.

11

R48589

CLAMP

air cleaner stack

1шт.

12

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

13

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

flat, 13/32 x 13/16 x 1/16 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

129-770

NUT,3/8"-16, G5

1шт.

16

R52871

FOAM

PAD seal, air cleaner stack

1шт.
