(8-056) - CIRCUIT RELIEF AND ANTICAVITATION VALVES, PRIOR TO JJG0218023 AND JG0218024 - JJG0218478

Запчасти Case 1150G (8-056) - CIRCUIT RELIEF AND ANTICAVITATION VALVES, PRIOR TO JJG0218023 AND JG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM

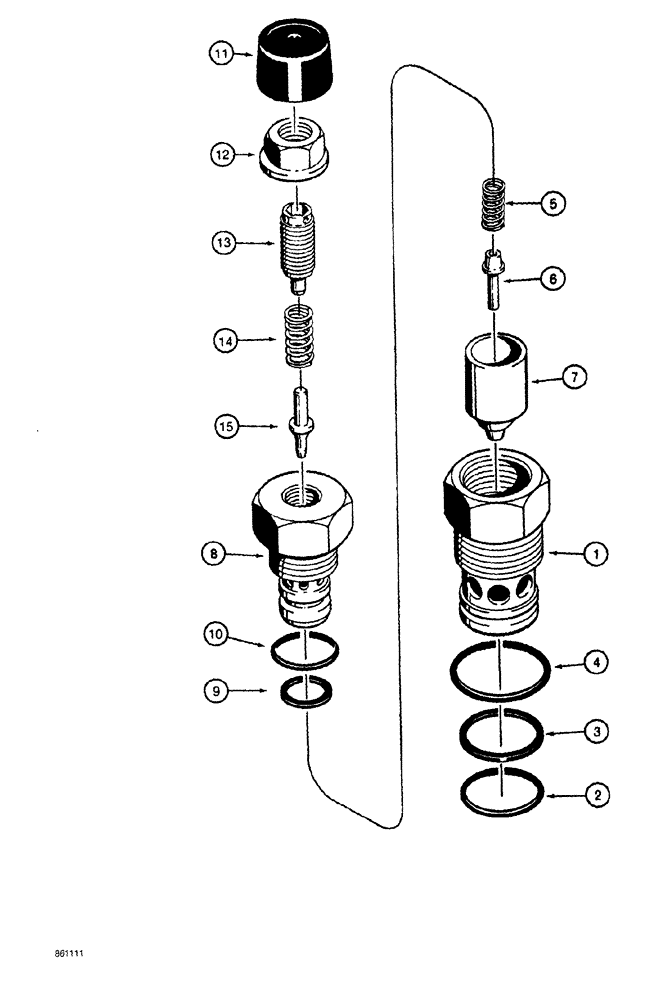

Схема запчастей Case 1150G - (8-056) - CIRCUIT RELIEF AND ANTICAVITATION VALVES, PRIOR TO JJG0218023 AND JG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM
13
14
4
15
11
10
1
8
12
3
9
5
6
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

N14029

VALVE

ASSY., antiactivation and circuit relief, pressure setting is pre-set for this application, Includes: Ref. 1 - 15

2шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

3

R31052

O-RING,15/16" ID x 1-1/16" OD x 3/64"

backup

1шт.

4

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

Body

1шт.

5

N9267

SPRING

plunger

1шт.

6

N9264

PLUNGER

valve

1шт.

7

N9263

PISTON

anticavitation

1шт.

8

N13269

SEAT, VALVE

1шт.

9

N13271

O-RING

SEAL special, with O-ring

1шт.

10

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Poppet

1шт.

11

N9270

CAP

valve

1шт.

12

N9269

SPECIAL NUT

special

1шт.

13

N9266

ADJUSTMENT SCREW,M10 x 1 x 1.14mm

adjusting

1шт.

14

N13270

SPRING

relief

1шт.

15

N9265

PISTON

POPPET relief

1шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Body

1шт.
