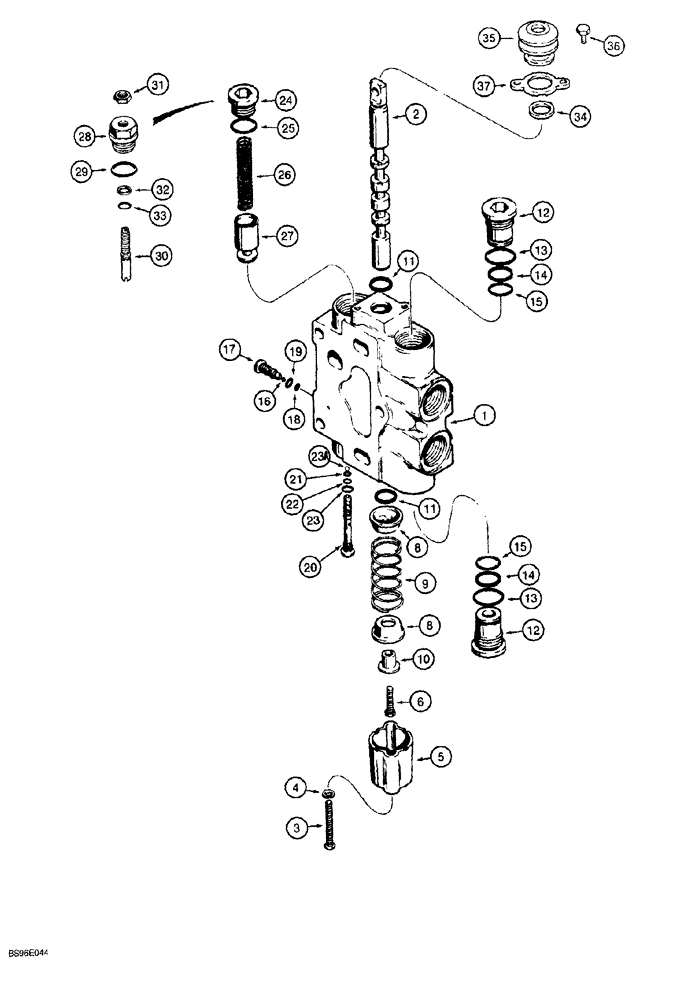

Запчасти Case 1150G (8-054) - TILT AND ANGLE SECTIONS, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM

N14017

VALVE

SECTION ASSY., angle

1шт.

S300687

HYD VALVE SECTION

ASSY., tilt, Includes: Ref. 1 - 37

1шт.

1

NSS

NOT SOLD SEPARAT

BODY section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL section

1шт.

3

61-32532

HEX SOC SCREW,1/4"-20 x 2"

2шт.

4

492-11025

LOCK WASHER,1/4"

2шт.

5

D78454

HOUSING

centering spring

1шт.

6

75-416

SCREW,Rd, 1/4" - 20 x 1"

machine, round head, slotted, 1/4 NC x 1 inch, N14017 section

1шт.

6

113-64

PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5

S300687 section

1шт.

8

R30191

WASHER

SEAT centering spring

2шт.

9

R30192

SPRING

centering

1шт.

10

N7506

SPACER

spool

1шт.

11

D150707

O-RING,0.862" ID x 1.068" OD

spool, Replaces: 218-5118, used on some models

2шт.

R30167

PLUG

section body, Includes: Ref. 12 - 15

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG section assembly

1шт.

R30174

GASKET KIT

seal, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING large, outer

1шт.

14

NSS

NOT SOLD SEPARAT

RING backup, small

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING small, inner

1шт.

16

211-1006

BALL,3/16" Dia

1шт.

A47210

PLUG

SHUTTLE ASSY., secondary, order Ref. 17 and R30185 kit, Includes: Ref. 17 - 19

1шт.

17

A47204

PLUG

BODY shuttle

1шт.

R30185

SEAL KIT

seal, Includes: Ref. 18, 19

1шт.

18

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

19

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

D87080

VALVE

SHUTTLE primary, Includes: Ref. 20 - 23B

1шт.

20

NSS

NOT SOLD SEPARAT

BODY shuttle

1шт.

21

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

1шт.

22

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

23a

211-1010

BALL,5/16" OD

chrome alloy steel, 5/16 inch, grade 24

1шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

23b

NSS

NOT SOLD SEPARAT

SEAT ball, not shown

1шт.

24

9841223

PLUG,1-1/16" - 12 ORB

N14017 angle section only, Incl. Ref. 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

N14017 angle section only

1шт.

26

R30189

SPRING

load check

1шт.

27

D87082

VALVE POPPET

load check

1шт.

S300688

PLUG

ASSY., flow limiter, S300687 tilt section only, Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG flow limiter

1шт.

29

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

30

NSS

NOT SOLD SEPARAT

SCREW adjusting, plug assembly

1шт.

31

NSS

NOT SOLD SEPARAT

NUT plug assembly

1шт.

32

D87094

BACK-UP RING

backup

1шт.

33

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

A48938

KIT

filter, body and spool, kit no longer available, order Ref. 34 - 37

1шт.

34

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER spool

1шт.

35

A47188

COVER

dust

1шт.

36

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

retainer

2шт.

37

A47196

RETAINER

filter

1шт.
