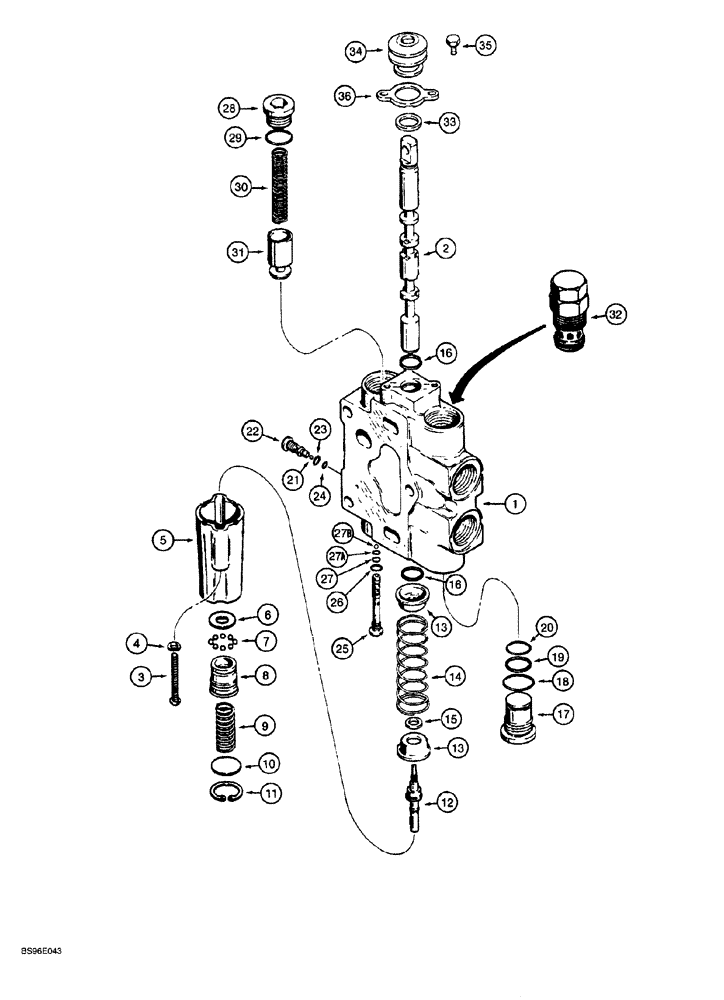

Запчасти Case 1150G (8-052) - LIFT SECTION, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM

N14018

VALVE

SECTION ASSY., lift, Includes: Ref. 1 - 36

1шт.

1

NSS

NOT SOLD SEPARAT

BODY section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL section

1шт.

3

61-32536

HEX SOC SCREW,1/4"-20 x 2 1/4"

2шт.

4

492-11025

LOCK WASHER,1/4"

2шт.

5

N14194

HOUSING

detent

1шт.

6

A48931

WASHER

guide

1шт.

7

211-1007

BALL,7/32" Dia

Gr 24, Chrome alloy steel

8шт.

8

N14196

PISTON

detent

1шт.

9

A48934

SPRING

detent

1шт.

10

A48933

RING

RETAINER piston

1шт.

11

100-21118

SNAP RING,1.188", Int, #118

1шт.

12

N14193

SHAFT

detent

1шт.

13

CASR30191

RETAINER

SEAT centering spring

2шт.

14

R30192

SPRING

centering

1шт.

15

N14192

SPACER

detent shaft

1шт.

16

D150707

O-RING,0.862" ID x 1.068" OD

spool, Replaces: 238-5118, used on some models

2шт.

17

R30167

PLUG

section body, Includes: Ref. 18 - 20

1шт.

R30174

GASKET KIT

seal, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING large

1шт.

19

NSS

NOT SOLD SEPARAT

RING backup, small O-ring

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING small, inner

1шт.

21

211-1006

BALL,3/16" Dia

Secondary shuttle

1шт.

A47210

PLUG

SHUTTLE ASSY., secondary, order Ref. 22 and R30185 kit

1шт.

22

A47204

PLUG

BODY shuttle

1шт.

R30185

SEAL KIT

seal

1шт.

23

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

24

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

D87080

VALVE

SHUTTLE primary, Includes: Ref. 25 - 27C

1шт.

25

NSS

NOT SOLD SEPARAT

BODY shuttle

1шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

27

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

1шт.

27a

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

27b

211-1010

BALL,5/16" OD

chrome alloy steel, 5/16 inch, grade 24

1шт.

27c

NSS

NOT SOLD SEPARAT

SEAT ball, not shown

1шт.

28

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

R30189

SPRING

load check

1шт.

31

D87082

VALVE POPPET

load check

1шт.

32

N14024

VALVE

ASSY., anticavitation, see Figure 8-058

1шт.

A48938

KIT

filter, body and spool, kit no longer available, order Ref. 33 - 36

1шт.

33

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER spool

1шт.

34

A47188

COVER

dust

1шт.

35

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

retainer

2шт.

36

A47196

RETAINER

filter

1шт.
