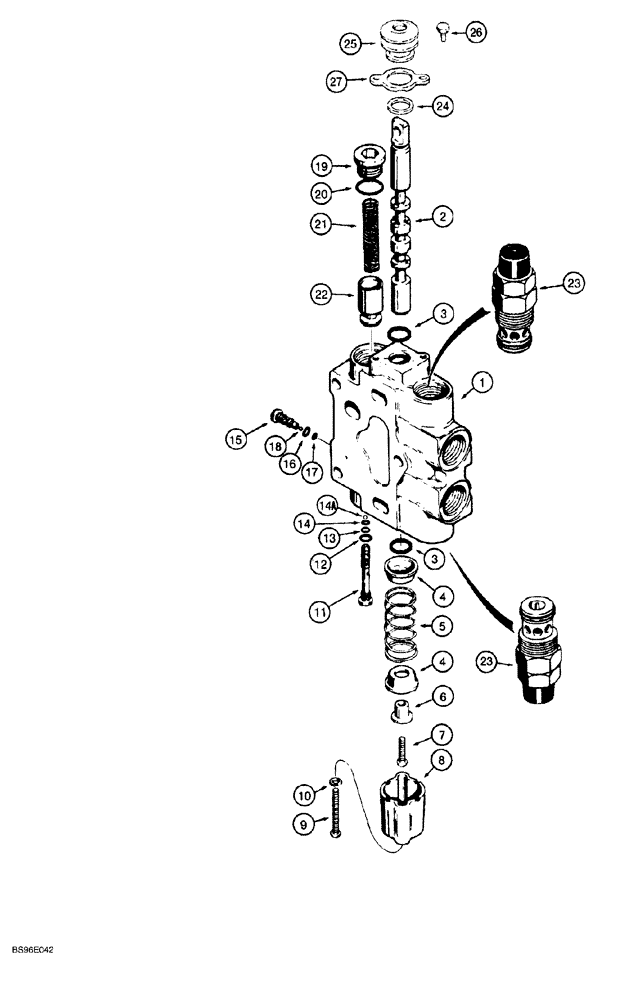

Запчасти Case 1150G (8-050) - RIPPER SECTION, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
N14026
VALVE
SECTION ASSY., ripper, Includes: Ref. 1 - 27
1шт.
1
NSS
NOT SOLD SEPARAT
BODY section
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL section
1шт.
3
D150707
O-RING,0.862" ID x 1.068" OD
spool, Replaces: 238-5118, used on some models
2шт.
4
CASR30191
RETAINER
SEAT centering spring
2шт.
5
R30192
SPRING
centering
1шт.
6
N7506
SPACER
spool
1шт.
7
113-64
PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5
1шт.
8
D78454
HOUSING
centering spring
1шт.
9
61-32532
HEX SOC SCREW,1/4"-20 x 2"
2шт.
10
492-11025
LOCK WASHER,1/4"
2шт.
D87080
VALVE
SHUTTLE primary, Includes: Ref. 11 - 14B
1шт.
11
NSS
NOT SOLD SEPARAT
BODY shuttle
1шт.
12
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
13
238-6010
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
1шт.
14
238-6009
O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro
1шт.
14a
211-1010
BALL,5/16" OD
chrome alloy steel, 5/16 inch, grade 24
1шт.
14b
NSS
NOT SOLD SEPARAT
SEAT ball, not shown
1шт.
A47210
PLUG
SHUTTLE ASSY., secondary, order Ref. 15 and R30185 kit, Includes: Ref. 15 - 17
1шт.
15
A47204
PLUG
BODY shuttle
1шт.
R30185
SEAL KIT
seal, Includes: Ref. 16, 17
1шт.
16
237-6003
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
1шт.
17
238-6008
O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro
1шт.
18
211-1006
BALL,3/16" Dia
1шт.
19
9841223
PLUG,1-1/16" - 12 ORB
Incl. Ref. 20
1шт.
20
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
21
R30189
SPRING
load check
1шт.
22
D87082
VALVE POPPET
load check
1шт.
23
N14029
VALVE
ASSY., anticavitation and circuit relief, see Figure 8-056
2шт.
A48938
KIT
filter, body and spool, kit no longer available, order Ref. 24 - 27
1шт.
24
A47205
SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk
FILTER spool
1шт.
25
A47188
COVER
dust
1шт.
26
86019274
SCREW,Hex, 1/4"-20 x 1/2", G5
retainer
2шт.
27
A47196
RETAINER
filter
1шт.
Выбрано товаров: 34
