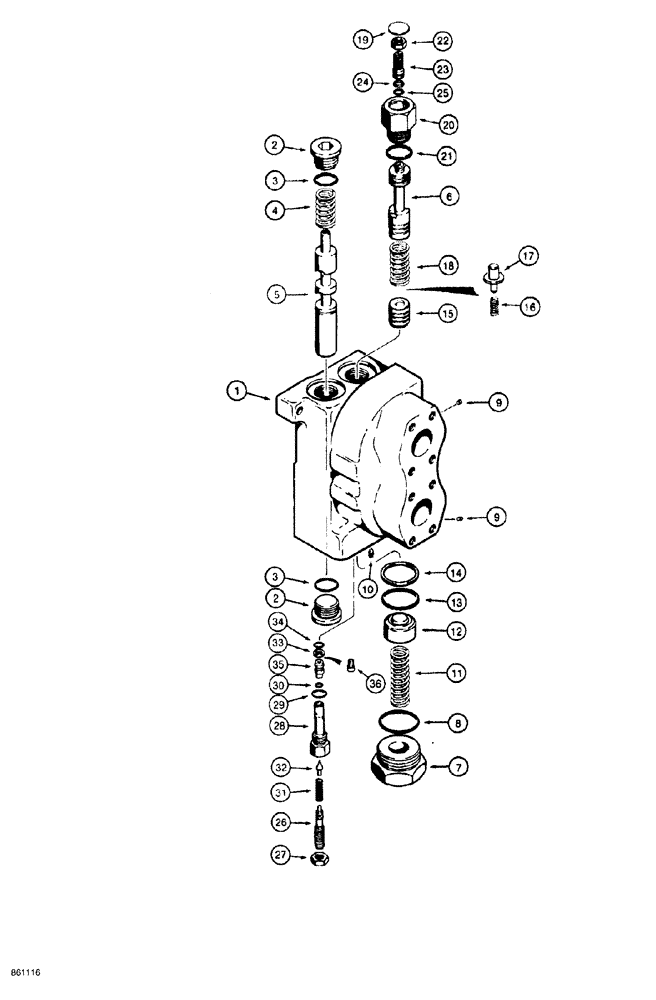

Запчасти Case 1150G (8-048) - INLET AND OUTLET SECTION, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM

N14016

VALVE

SECTION ASSY., inlet and outlet, ID No. 110, Includes: Ref. 1 - 36

1шт.

The pressure setting of the main relief valve is not preset for application on the 1150G Crawler. Adjust the setting according to the service manual.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY section

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

D78464

SPRING

regeneration spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL regeneration

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL unloading

1шт.

7

D78462

PLUG

hex head, special, Includes: Ref. 8

1шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

9

D78456

PLUG

RESTRICTOR flow

2шт.

10

D78455

PLUG

hex socket, pressure

1шт.

11

N14019

SPRING

piston

1шт.

12

D78461

PISTON ASSY.

unloading valve

1шт.

13

238-5127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

1шт.

14

D87079

RING

backup

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON unloading valve

1шт.

16

N14023

SPRING

unloading valve, small

1шт.

17

N14022

SPACER

unloading valve

1шт.

18

D78458

SPRING

unloading spool, large

1шт.

19

D87075

COVER

CAP dust

1шт.

D87077

PLUG

ASSY., valve section, Includes: Ref. 20 - 25

1шт.

20

NSS

NOT SOLD SEPARAT

BODY plug

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW adjusting

1шт.

24

D87094

BACK-UP RING

backup

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

N14020

VALVE

ASSY., main relief, Includes: Ref. 26 - 36

1шт.

The pressure setting of the main relief valve is not preset for application on the 1150G Crawler. Adjust the setting according to the service manual.

1шт.

26

D78467

ADJUSTMENT SCREW,3/8" - 24 x 1.953"

relief assembly

1шт.

27

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

28

NSS

NOT SOLD SEPARAT

BODY main relief assembly

1шт.

30

238-5007

O-RING,0.07" Thk x 0.145" ID, -7, Cl 5, 75 Duro

Inner, small

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

D78468

SPRING

plunger

1шт.

32

N14021

PLUNGER

relief assembly

1шт.

33

L35305

RING

backup

1шт.

34

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

35

NSS

NOT SOLD SEPARAT

SEAT plunger

1шт.

36

NSS

NOT SOLD SEPARAT

FILTER main relief assembly, wire mesh, cylinder-shaped

1шт.
