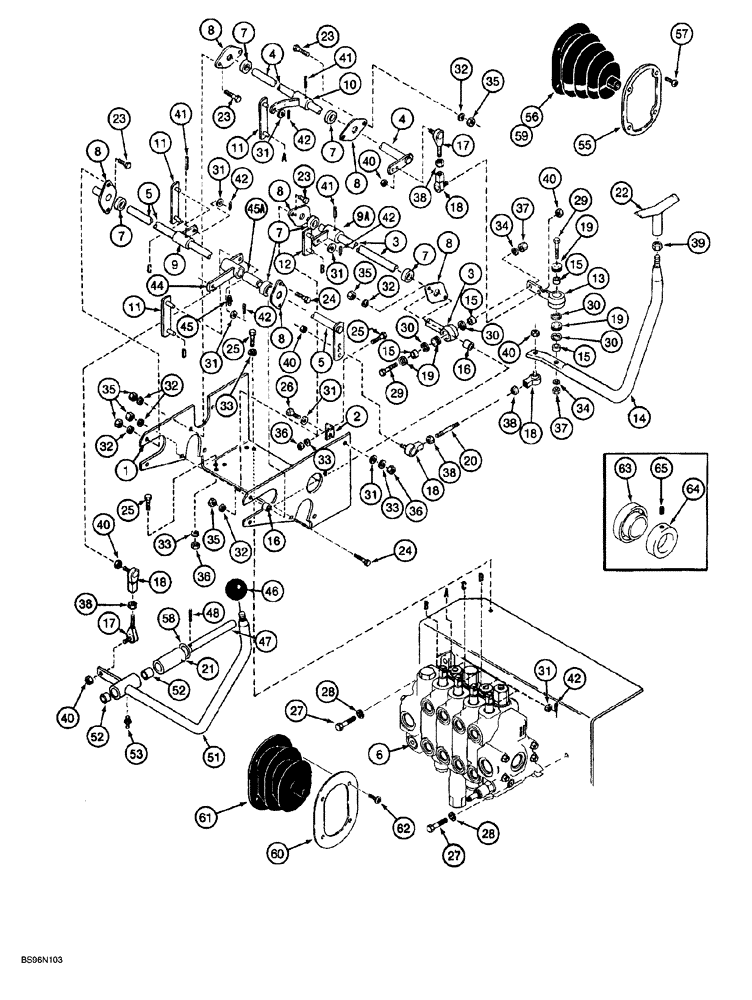

Запчасти Case 1150G (8-043A) - EQUIPMENT CONTROL VALVE & LEVERS, TWO LEVERS, FOUR-SPOOL VALVE, JJG0218023 AND JJG0218479 AND AFTER (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
233575A1
BRACKET
mounting
1шт.
2
R41335
SUPPORT
BRACKET angle
1шт.
3
231325A1
SHAFT ASSY.
lower, tilt control, includes (1) R56407, Ref. 19 and (2) 100-21112, Ref. 30
1шт.
4
231312A2
SHAFT
upper, lift control
1шт.
5
231314A1
SHAFT
control, angle
1шт.
6
225601A2
VALVE, CONTROL
ASSY., control, four-spool, see Figure 8-062, Replaces: 225601A1
1шт.
7
R36380
BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm
ball, no longer available, order 455957R92 and 455958R11, Ref. 63 and 64
6шт.
8
469924R1
FLANGE
bearing
12шт.
9
233580A1
ARM
BELLCRANK, control, angle, tilt
1-2шт.
9a
233576A1
ARM
BELLCRANK, control, tilt, if used
1шт.
10
233578A1
ARM
BELLCRANK, control, lift
1шт.
11
236898A1
LINK
valve
3шт.
139220A1
CLEVIS PIN
3/8 inch diameter, Serial Range: welded-link
2шт.
12
236900A1
LINK
valve
1шт.
139220A1
CLEVIS PIN
3/8 inch diameter, Serial Range: welded-link
2шт.
13
184769A1
HOUSING ASSY.
LINK connector
1шт.
14
140334A1
LEVER
HANDLE control
1шт.
15
R56436
SPACER
ball bearing
4шт.
16
R56431
SPACER
ball bearing
4шт.
17
R47939
ROD
JOINT ball, male, 5/16 inch NF
2шт.
18
H289652
BALL JOINT,5/16" - 24 x 1-3/8" L
JOINT, female, 5/16 inch NF
4шт.
19
R56407
BEARING, BALL,12.7 mm ID x 28.575 mm OD x 7.938 mm
4шт.
20
S97451
STUD
5/16 inch
1шт.
21
R27673
SLEEVE
lever
1шт.
22
R58490
HANDLE
equipment control, T-grip
1шт.
22
R58490
HANDLE
equipment control, T-grip
1шт.
23
411-516
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2
8шт.
24
411-524
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 2
4шт.
25
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
5шт.
26
413-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
1шт.
27
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
3шт.
28
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
Flat, (13/32 x 13/16 x 1/16")
1шт.
29
413-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
2шт.
30
100-21112
SNAP RING,1.125", Int, #112
4шт.
31
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
Flat, (13/32 x 13/16 x 1/16")
1шт.
33
492-11038
LOCK WASHER,3/8"
6шт.
34
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
35
425-105
NUT,5/16"-18, G5
12шт.
36
425-106
NUT,3/8"-16, Cl 5
2шт.
37
425-108
NUT,1/2" - 13, Gr 5
2шт.
39
425-158
JAM NUT,Jam, 1/2"-20, G5
1шт.
40
232-4605
LOCK NUT,5/16"-24, GC
6шт.
41
38-31620
PIN,6.35mm OD x 31.75mm L
3шт.
42
432-612
COTTER PIN,3/32" x 3/4"
8шт.
43
345-49
SEALANT
SEALANT, 242, blue, 1 ml tube, not shown
1шт.
44
233582A1
ARM
BELLCRANK control, auxiliary, Includes: Ref. 45, 45A
1шт.
45
219-8
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
45a
R52129
BRONZE BUSHING
BRONZE BUSH 3/4 inch long
2шт.
46
70213
KNOB
control lever
1шт.
47
R47819
SHAFT
auxiliary control lever
1шт.
48
19711R1
PIN,3.17mm OD x 31.75mm L, Coiled
1/8" x 1 1/4", Coiled
1шт.
R52154
LEVER
ASSY., control, Includes: Ref. 51 - 53
1шт.
51
R47732
LEVER control, order R52154
1шт.
52
R52129
BRONZE BUSHING
BRONZE BUSH 3/4 inch long
2шт.
53
219-8
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
54
B17069
LOCTITE
Hi Strength, No. 601, 2 oz. (50 ml), not shown
1шт.
55
187174A1
RETAINER
boot, cab models
1шт.
56
R47896
BOOT
control lever, cab models
1шт.
57
294-1658
SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"
Cab models
4шт.
58
D35268
SHIM,1/32" Thk
(25/32" ID x 1-1/4" OD)
1шт.
59
223-113
TAPE, 19 (3/4) x 152 mm (6 inch) long, boot to handle, cab models
1шт.
60
R47894
ANCHOR
RETAINER boot, cab models
1шт.
61
R47897
BELLOWS
BOOT control lever, cab models
1шт.
62
294-1658
SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"
Cab models
4шт.
63
455957R92
BEARING ASSY,19.05mm ID x 47mm OD x 14mm W
ball
6шт.
64
455958R11
COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W
lock, bearing, Includes: Ref. 65
6шт.
65
483-1254
SET SCREW,Hex Soc, 1/4"-20 x 1/4"
hex socket headless, 1/4 NC x 1/4 inch, cup pt
1шт.
Выбрано товаров: 69
