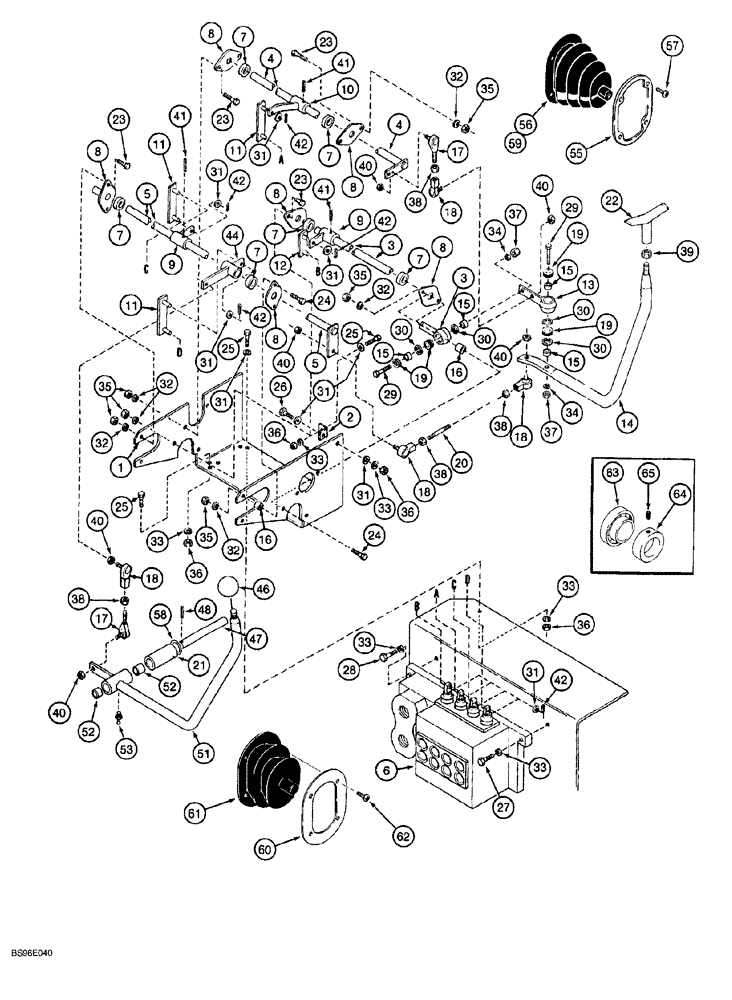

Запчасти Case 1150G (8-040) - EQUIPMENT CTRL VALVE & LEVERS, 2 LEVERS, 4-SPOOL VALVE, PRIOR JJG0218023 & JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM

1

R56412

SUPPORT

BRACKET mounting

1шт.

2

R41335

SUPPORT

BRACKET angle

1шт.

3

R56414

SHAFT

lower

1шт.

4

R56427

SHAFT

upper

1шт.

5

140331A1

SHAFT

control

1шт.

6

R56333

VALVE

ASSY., control, four-spool, see Figure 8-046

1шт.

7

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

ball, no longer available, order 455957R92 and 455958R11, Ref. 63 and 64 on Figure 8-43A

6шт.

8

469924R1

FLANGE

bearing

12шт.

9

R27689

LEVER

BELLCRANK control shaft

2шт.

10

R56429

LEVER

angled

1шт.

11

R56423

POWER ARM

LINK valve

3шт.

12

R56425

POWER ARM

LINK valve

1шт.

13

184769A1

HOUSING ASSY.

LINK connector

1шт.

14

140334A1

LEVER

HANDLE control

1шт.

15

R56436

SPACER

ball bearing

4шт.

16

R56431

SPACER

ball bearing

4шт.

17

R47939

ROD

JOINT ball, male, 5/16 inch NF

2шт.

18

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT, female, 5/16 inch NF

4шт.

19

R56407

BEARING, BALL,12.7 mm ID x 28.575 mm OD x 7.938 mm

4шт.

20

S97451

STUD

5/16 inch

1шт.

21

R27673

SLEEVE

lever

1шт.

22

R58490

HANDLE

equipment control, T-grip

1шт.

23

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

8шт.

24

411-524

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 2

4шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

26

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

28

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

29

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

30

100-21112

SNAP RING,1.125", Int, #112

4шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

12шт.

32

492-11031

LOCK WASHER,5/16"

12шт.

33

492-11038

LOCK WASHER,3/8"

9шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

35

425-105

NUT,5/16"-18, G5

12шт.

36

425-106

NUT,3/8"-16, Cl 5

6шт.

37

425-108

NUT,1/2" - 13, Gr 5

2шт.

38

425-115

NUT,5/16"-24, G5

4шт.

39

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

40

232-4605

LOCK NUT,5/16"-24, GC

6шт.

41

38-31620

PIN,6.35mm OD x 31.75mm L

3шт.

42

432-612

COTTER PIN,3/32" x 3/4"

8шт.

43

345-49

SEALANT

SEALANT, 242, blue, 1 ml tube, not shown

1шт.

44

R56520

CONTROL LEVER

BELLCRANK, shaft

1шт.

46

70213

KNOB

control lever

1шт.

47

R47819

SHAFT

auxiliary control lever

1шт.

48

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1/8" x 1 1/4", Coiled

1шт.

R52154

LEVER

ASSY., control, Includes: Ref. 51 - 53

1шт.

51

R47732

LEVER control, order R52154 lever assembly

1шт.

52

R52129

BRONZE BUSHING

BRONZE BUSH 3/4 inch long

2шт.

53

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

54

B17069

LOCTITE

Hi Strength, No. 601, 2 oz. (50 ml), not shown

1шт.

55

187174A1

RETAINER

boot, cab models

1шт.

56

R47896

BOOT

control lever, cab models

1шт.

57

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

Cab models

4шт.

58

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD)

1шт.

59

223-113

TAPE, 19 (3/4) x 152 mm (6 inch) long, boot to handle, cab models

1шт.

60

R47894

ANCHOR

RETAINER boot, cab models

1шт.

61

R47897

BELLOWS

BOOT control lever, cab models

1шт.

62

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

Cab models

4шт.

63

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ball

6шт.

64

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

lock, bearing, Includes: Ref. 65

6шт.

65

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

hex socket headless, 1/4 NC x 1/4 inch, cup pt

1шт.
