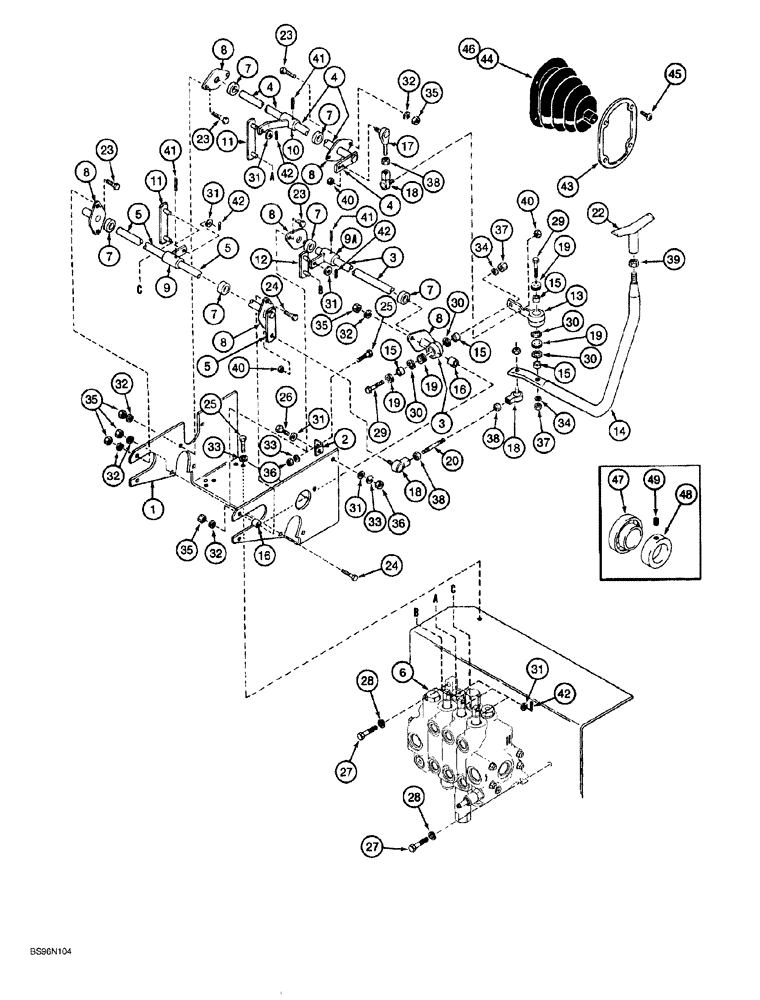

Запчасти Case 1150G (8-039A) - EQUIPMENT CONTROL VALVE AND LEVERS, ONE LEVER, THREE-SPOOL VALVE, JJG0218023 & JJG0218479 AND AFTER (07) - HYDRAULIC SYSTEM

1

233575A1

BRACKET

mounting

1шт.

2

R41335

SUPPORT

BRACKET angle

1шт.

3

231325A1

SHAFT ASSY.

lower, tilt control, includes (1) R56407, Ref. 19 and (2) 100-21112, Ref. 30

1шт.

4

231312A2

SHAFT

upper, lift control

1шт.

5

231314A1

SHAFT

control, angle

1шт.

6

229079A2

VALVE, CONTROL

ASSY., control, three-spool, see Figure 8-060, Replaces: 229079A1

1шт.

7

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

ball, no longer available, order 455957R92 and 455958R11, Ref. 47 and 48

6шт.

8

469924R1

FLANGE

bearing

12шт.

9

233580A1

ARM

BELLCRANK control, angle, tilt

1-2шт.

9a

233576A1

ARM

BELLCRANK control, tilt, if used

1шт.

10

233578A1

ARM

BELLCRANK control, lift

1шт.

11

236898A1

LINK

valve

2шт.

139220A1

CLEVIS PIN

3/8 inch diameter, Serial Range: welded-link

2шт.

12

236900A1

LINK

valve

1шт.

139220A1

CLEVIS PIN

3/8 inch diameter, Serial Range: welded-link

2шт.

13

184769A1

HOUSING ASSY.

LINK connector

1шт.

14

140334A1

LEVER

HANDLE control

1шт.

15

R56436

SPACER

ball bearing

4шт.

16

R56431

SPACER

ball bearing

4шт.

17

R47939

ROD

JOINT ball, male, 5/16 inch NF

1шт.

18

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT, female, 5/16 inch NF

3шт.

19

R56407

BEARING, BALL,12.7 mm ID x 28.575 mm OD x 7.938 mm

4шт.

20

S97451

STUD

5/16 inch, Replaces: D50720

1шт.

22

R58490

HANDLE

equipment control, T-grip

1шт.

23

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

8шт.

24

411-524

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 2

4шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

26

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

3шт.

29

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

30

100-21112

SNAP RING,1.125", Int, #112

4шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), Used as a shim

1шт.

32

492-11031

LOCK WASHER,5/16"

12шт.

33

492-11038

LOCK WASHER,3/8"

6шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

35

425-105

NUT,5/16"-18, G5

12шт.

36

425-106

NUT,3/8"-16, Cl 5

2шт.

37

425-108

NUT,1/2" - 13, Gr 5

2шт.

38

425-115

NUT,5/16"-24, G5

3шт.

39

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

40

232-4605

LOCK NUT,5/16"-24, GC

4шт.

41

38-31620

PIN,6.35mm OD x 31.75mm L

3шт.

42

432-612

COTTER PIN,3/32" x 3/4"

6шт.

43

187174A1

RETAINER

boot, cab models

1шт.

44

R47896

BOOT

control lever, cab models

1шт.

45

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

Cab models

4шт.

46

223-113

TAPE, 19 (3/4) x 152 mm (6 inch) long, boot to handle, cab models

1шт.

47

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ball

6шт.

48

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

lock, bearing, Includes: Ref. 49

6шт.

49

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

hex socket headless, 1/4 NC x 1/4 inch, cup pt

1шт.
