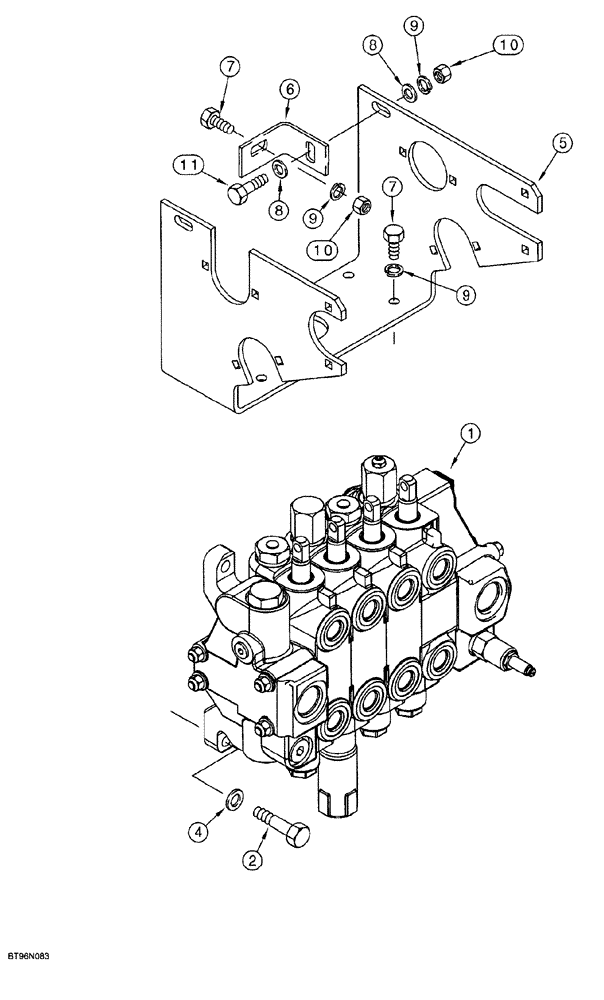

Запчасти Case 1150G (8-035A) - EQUIPMENT CONTROL VALVE MOUNTING, JJG0218023 AND JJG0218479 AND AFTER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE ASSY., equipment control, see Figure 8-060 or 8-062

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

3шт.

5

233575A1

BRACKET

mounting, linkage

1шт.

6

R41335

SUPPORT

BRACKET angle, linkage bracket support

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.
