Запчасти Case 1150G (8-032) - G101272 AND G101273 RIPPER CYLINDERS (07) - HYDRAULIC SYSTEM

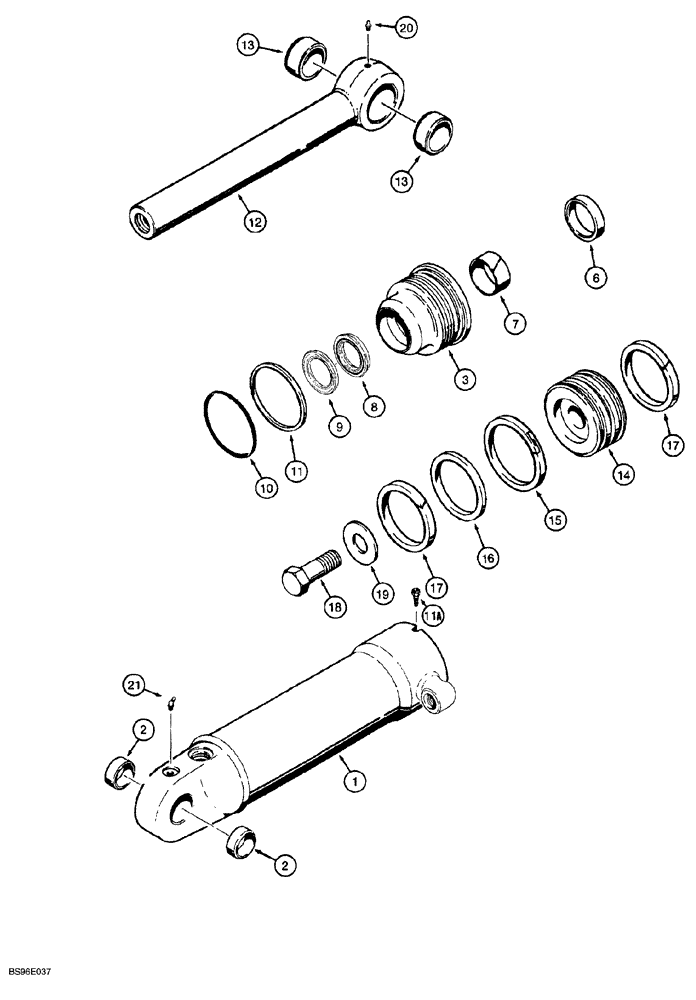

Схема запчастей Case 1150G - (8-032) - G101272 AND G101273 RIPPER CYLINDERS (07) - HYDRAULIC SYSTEM
20
17
8
21
17
1
13
13
19
10
14
2
11a
9
16
3
6
7
11
12
2
18
15

Артикул

Название

Примечание

Количество

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

102 (4) ID x 245 mm (10 inch) stroke, right-hand, Includes: Ref. 1 - 21

1шт.

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

102 (4) ID x 245 mm (10 inch) stroke, left-hand, not shown, Includes: Ref. 1 - 21

1шт.

1

G100284

TUBE,18.75" L

TUBE cylinder, right-hand, used with G101272 only, Includes: Ref. 2

1шт.

1

G100285

TUBE,18.75" L

cylinder, left-hand, not shown, used with G101273 only, Includes: Ref. 2

1шт.

2

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSY., cylinder, Includes: Ref. 3 - 11

1шт.

3

1543019C1

CYLINDER END CAP

GLAND

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper piston rod, outer

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

center

1шт.

1542876C1

SEAL KIT,50.8mm Rod

NSS, Order 1543273C1 kit below, Incl Ref 8, 9

1шт.

8

1543001C1

SEAL

SEAL rod, NSS, order 1543273C1 kit below

1шт.

9

1543000C1

SEAL

SEAL buffer, NSS, order 1543273C1 kit below

1шт.

10

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

11a

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

If used

1шт.

12

G100290

ROD

piston, 51 mm (2 inch) diameter, Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

piston rod

2шт.

14

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

cylinder

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

piston, rubber

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

backup, piston seal

1шт.

17

G100448

RING,101.6mm OD, Ext

wear

2шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

1шт.

19

G32351

WASHER

flat, hardened, special

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

1543273C1

SEAL KIT

seal, includes Refs. 6, 7, 10, 11, 15, 16, 17, part number 1542876C1 and an instruction sheet, plus an additional seal n

1шт.

Выбрано товаров: 26
