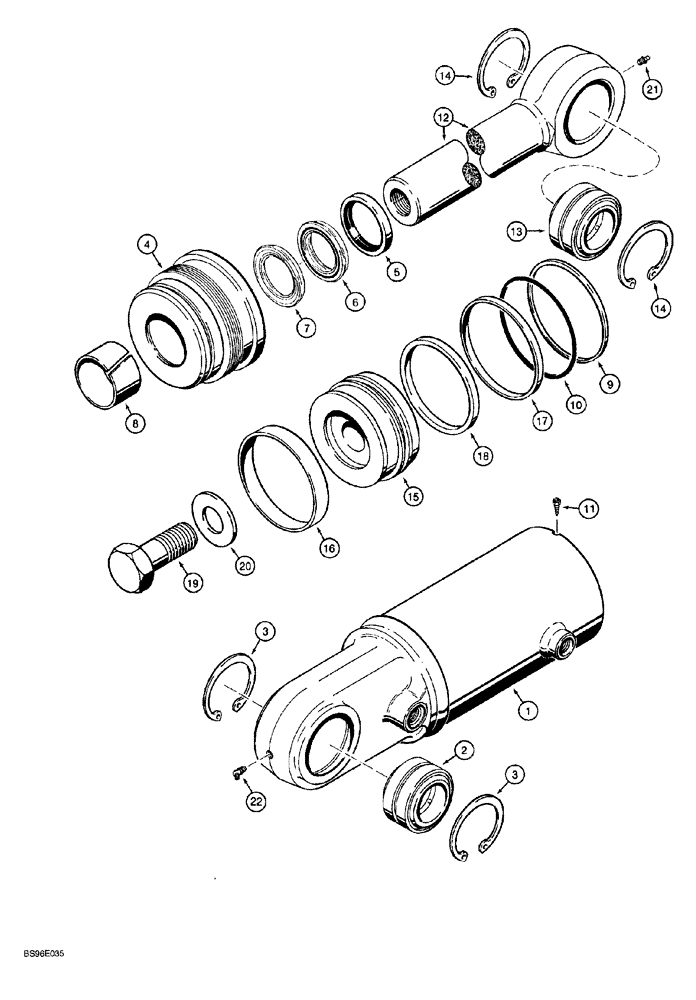

Запчасти Case 1150G (8-028) - TILT CYLINDER (07) - HYDRAULIC SYSTEM

G110694

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 119.9mm Stroke

127 (5) ID x 120 mm (4-3/4 inch) stroke, tilt, Includes: Ref. 1 - 22

1шт.

87377322R

REMAN-HYD CYLINDER

1150G CASE CRAWLER TRACTOR, 127 (5) ID x 120 mm (4-3/4 inch) stroke, tilt (2/95-), Reman for New PN G110694

1шт.

87377322C

CORE-HYD CYLINDER

Return Number

1шт.

1

G109824

TUBE,4.995" ID x 16.14" L

TUBE cylinder, Includes: Ref. 2, 3

1шт.

2

D23601

HOUSING

BUSHING self-aligning, heavy duty, sealed

1шт.

3

100-21315

SNAP RING,3.156", Int, #315

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSY., cylinder, Includes: Ref. 4 - 10

1шт.

4

1543069C1

PACKING GLAND

GLAND cylinder

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

piston rod

1шт.

Part of seal kit 1542915C2

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

seal, NSS, order 1542915C2 kit below, Includes: Ref. 6, 7

1шт.

Part of seal kit 1542915C2

1шт.

6

1542931C1

SEAL

SEAL rod, NSS, order 1542915C2 kit below

1шт.

7

1542930C1

SEAL

SEAL buffer, NSS, order 1542915C2 kit below

1шт.

8

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

center

1шт.

Part of seal kit 1542915C2

1шт.

9

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit 1542915C2

1шт.

10

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland

1шт.

Part of seal kit 1542915C2

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

1346161C1

PISTON ROD

64 mm (2-1/2 inch) diameter, Includes: Ref. 13, 14

1шт.

13

D23601

HOUSING

BUSHING self-aligning

1шт.

14

100-21315

SNAP RING,3.156", Int, #315

2шт.

15

G110701

JACK PISTON

cylinder

1шт.

16

G102090

RING,127mm OD, Ext

wear

1шт.

Part of seal kit 1542915C2

1шт.

17

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit 1542915C2

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

backup

1шт.

Part of seal kit 1542915C2

1шт.

19

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

20

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, hardened, special

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

1542915C2

SEAL KIT

KIT, Includes: Ref. 5, 8 - 10, 16 - 18, P/N 1542879C1 and an instruction sheet, plus (2) additional seals not used in this application

1шт.
